Intake Air Splash Shield Replacement

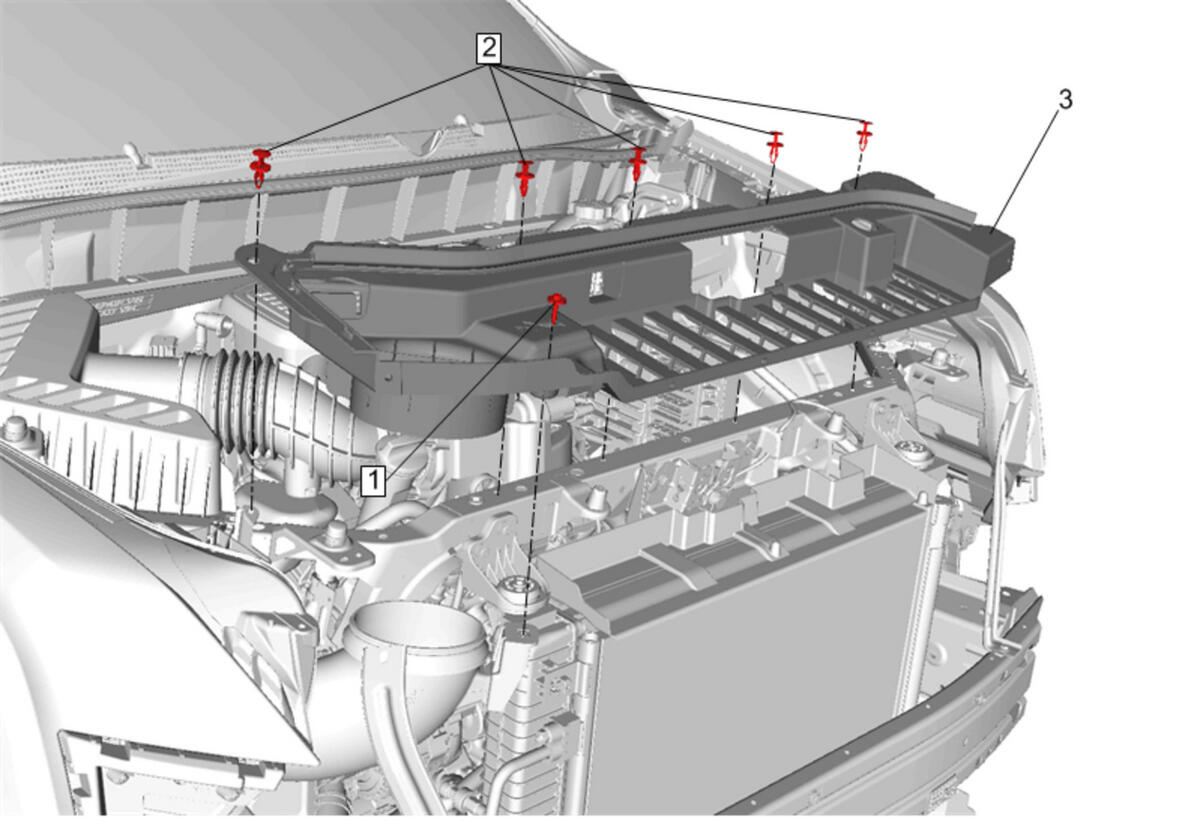

GM4316098
Callout Component Name

Preliminary Procedures

  1. Front Bumper Fascia Center Support Replacement
  2. Radiator Air Upper Baffle and Deflector Replacement (LGX)
1 Intake Air Duct Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Intake Air Splash Shield Retainer[5x]
3 Intake Air Splash Shield
