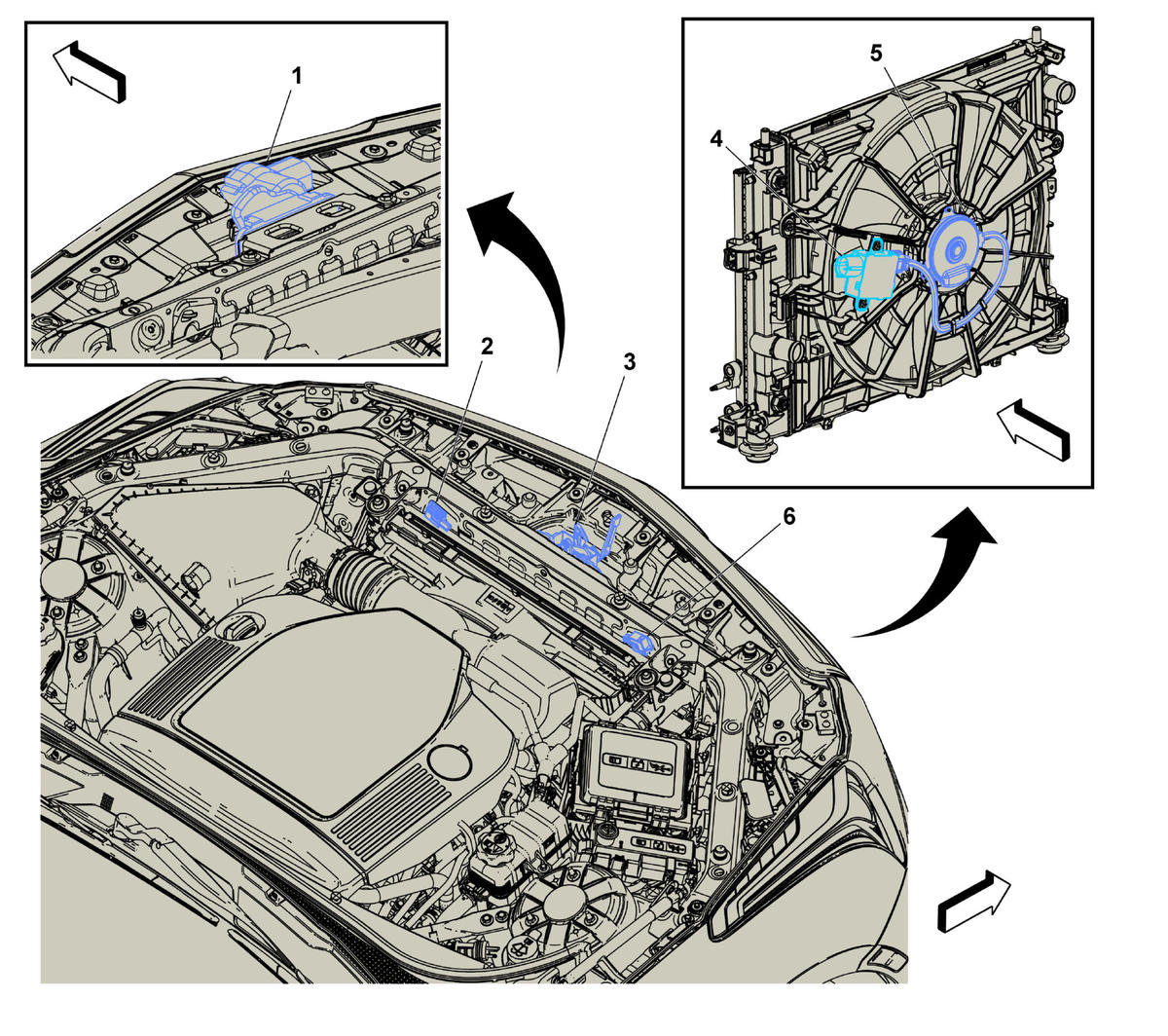

Radiator Support Components

GM4939227Courtesy of GENERAL MOTORS COMPANY
Items
1. F125 Hood Latch Actuator (1SV+B3T) F125 Hood Latch Actuator (B3T+1SV)
2. B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left
3. B55 Engine Hood Switch B55 Engine Hood Switch
4. K22 Cooling Fan Control Module K22 Cooling Fan Control Module X1 , or K22 Cooling Fan Control Module X2 (LGX/LTG-V03)
5. G10 Cooling Fan Motor G10 Cooling Fan Motor (LF4)
6. B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right
