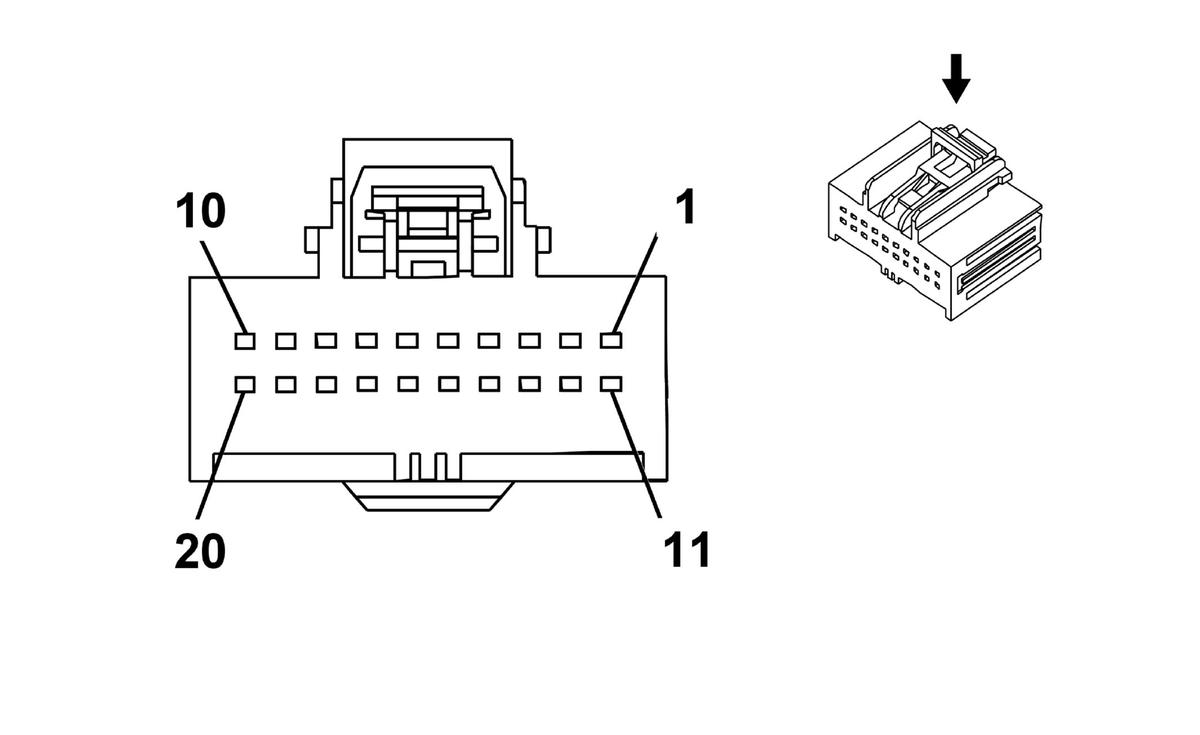

K84 Keyless Entry Control Module X2
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13584269
- Service Connector: 13577797
- Description: 20-Way F 0.64 Kaizen Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575742 |
J-35616-64B (LT BU) |
J-38125-215A |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
13575867 |
J-35616-64B (LT BU) |
J-38125-215A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
YE/GY |
6158 |
Right Rear Door Handle Switch Signal |
I |
- |
| 2 |
- |
BN/YE |
6157 |
Left Rear Door Handle Switch Signal |
I |
- |
| 3 - 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.35 |
VT |
3560 |
Passive Entry Driver Door Antenna Signal Hi |
II |
Coupe+ATH |
| 7 |
0.35 |
VT/GY |
3561 |
Passive Entry Driver Door Antenna Signal Lo |
II |
Coupe+ATH |
| 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.35 |
GN/BK |
3563 |
Passive Entry Passenger Door Antenna Signal Lo |
II |
Coupe+ATH |
| 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
0.35 |
VT |
3571 |
Passenger Door Handle Switch Signal |
II |
Coupe+ATH |
| 12 |
0.35 |
GN/WH |
3570 |
Driver Door Handle Switch Signal |
II |
Coupe+ATH |
| 13 - 15 |
- |
- |
- |
Not Occupied |
- |
- |
| 16 |
0.5 |
BN/GN |
3568 |
Passive Entry Rear Closure Antenna Signal Hi |
I |
ATH+Coupe/Sedan |
| 17 |
- |
- |
- |
Not Occupied |
- |
- |
| 18 |
0.5 |
GN/GY |
3569 |
Passive Entry Rear Closure Antenna Signal Lo |
I |
ATH+Coupe/Sedan |
| 19 |
- |
- |
- |
Not Occupied |
- |
- |
| 20 |
0.35 |
GN/YE |
3562 |
Passive Entry Passenger Door Antenna Signal Hi |
II |
Coupe+ATH |
