Installation Procedure

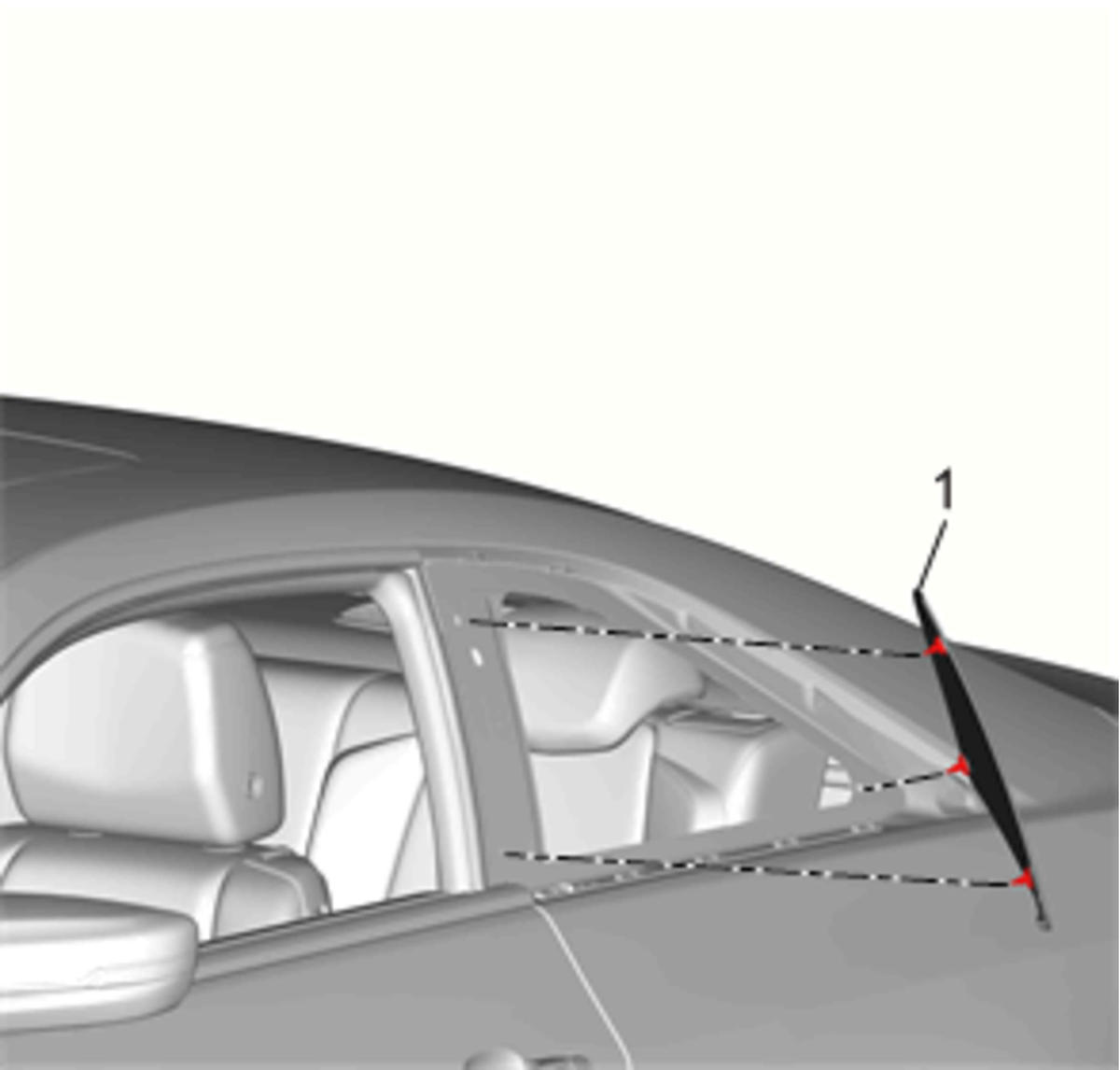

Install the quarter window (1) into the opening. Refer to Adhesive Installation of Encapsulated Stationary Windows .
- Install the quarter lower rear trim panel. Refer to Quarter Lower Rear Trim Panel Replacement .
- Install the upper rear side door opening reveal molding. Refer to Upper Rear Side Door Opening Reveal Molding Replacement .
- Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
