Chassis Control Module Replacement (LF4 Coupe)

Courtesy of GENERAL MOTORS COMPANY

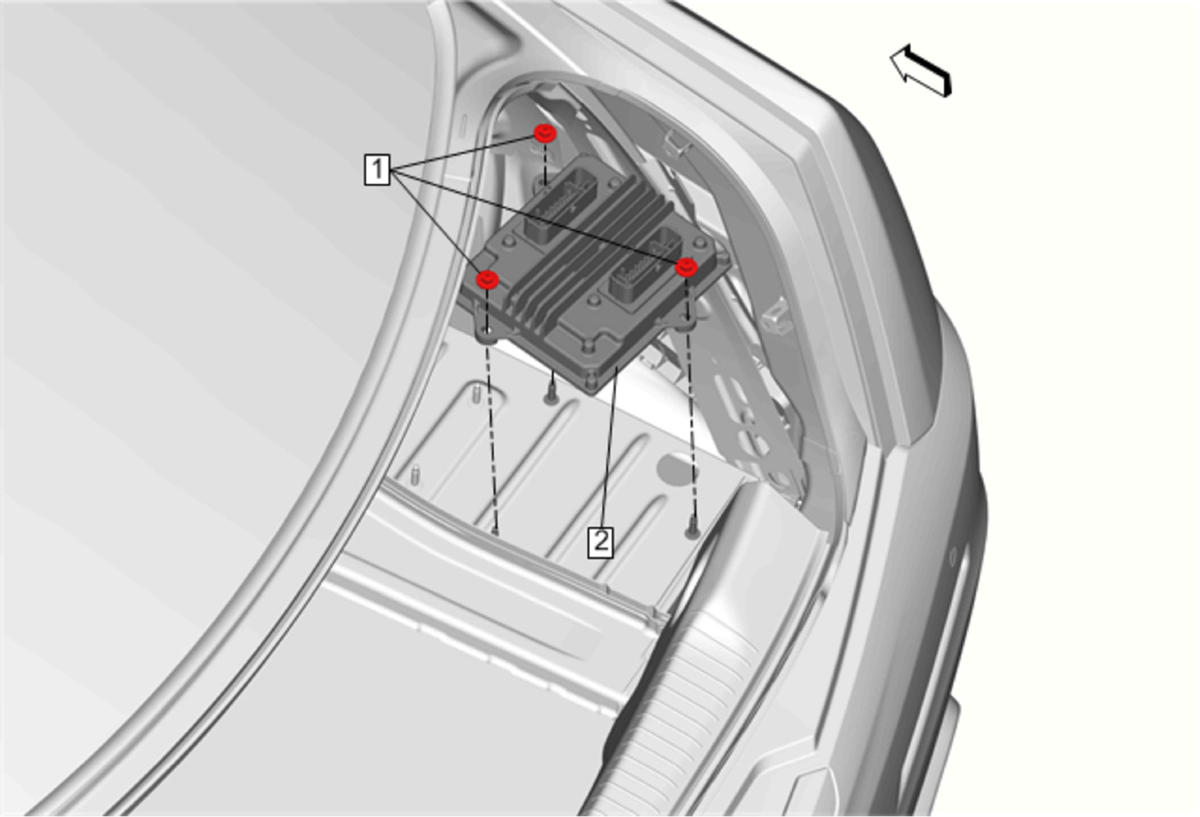

Callout	Component Name
Preliminary Procedure Rear Compartment Side Trim Replacement - Right Side
1	Chassis Control Module Fastener [3x] CAUTION: Refer to Fastener Caution . Tighten 7 N.m (62 lb in)
2	Chassis Control Module Procedure Disconnect the electrical connector. If replacing, reprogram the module. Control Module References

Callout

Component Name

Chassis Control Module Fastener [3x]

CAUTION:

Tighten
7 N.m (62 lb in)

Chassis Control Module

Procedure
