Oil Pump Flow Control Valve Replacement

Courtesy of GENERAL MOTORS COMPANY

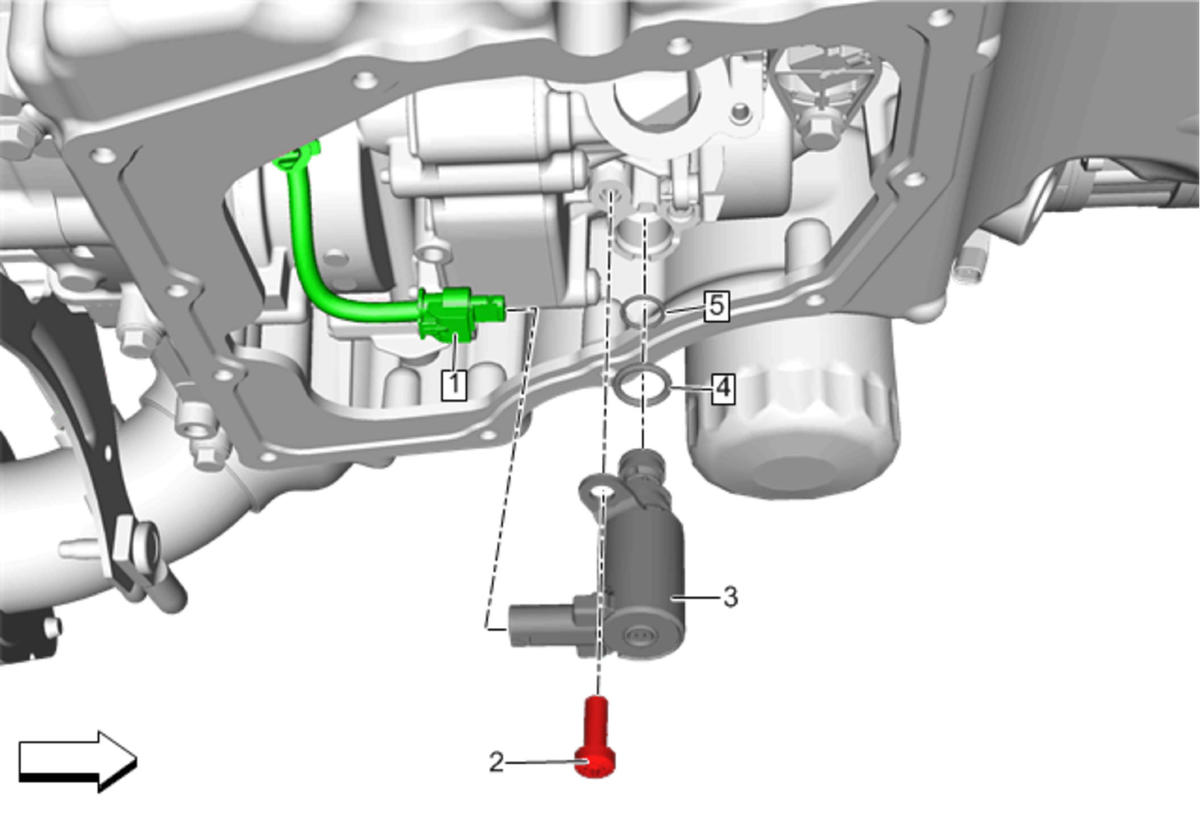

Callout	Component Name
Preliminary Procedures Lower Oil Pan Replacement (AWD) , or Lower Oil Pan Replacement (RWD) Oil Pump Suction Pipe and Screen Assembly Replacement (LF4) , or Oil Pump Suction Pipe and Screen Assembly Replacement (LGX, AWD) , or Oil Pump Suction Pipe and Screen Assembly Replacement (LGX, RWD)
1	Electrical Connector
2	Oil Pump Flow Control Solenoid Valve Bolt CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
3	Oil Pump Flow Control Valve with Insulator CAUTION: After removing the oil pump flow control valve, ensure the entire valve has been removed and there is no debris left in the oil pump bore. Failure to ensure the oil pump bore is free from debris may result in engine damage. NOTE: The engine should be allowed to cool for 2 hours, or until the pump is near ambient temperature or there is a high risk of breaking the oil pump flow control valve off in the bore when attempting removal.
4	O-Ring Procedure Lubricate the O-ring seal with clean engine oil.
5	O-Ring Procedure Lubricate the O-ring seal with clean engine oil.
