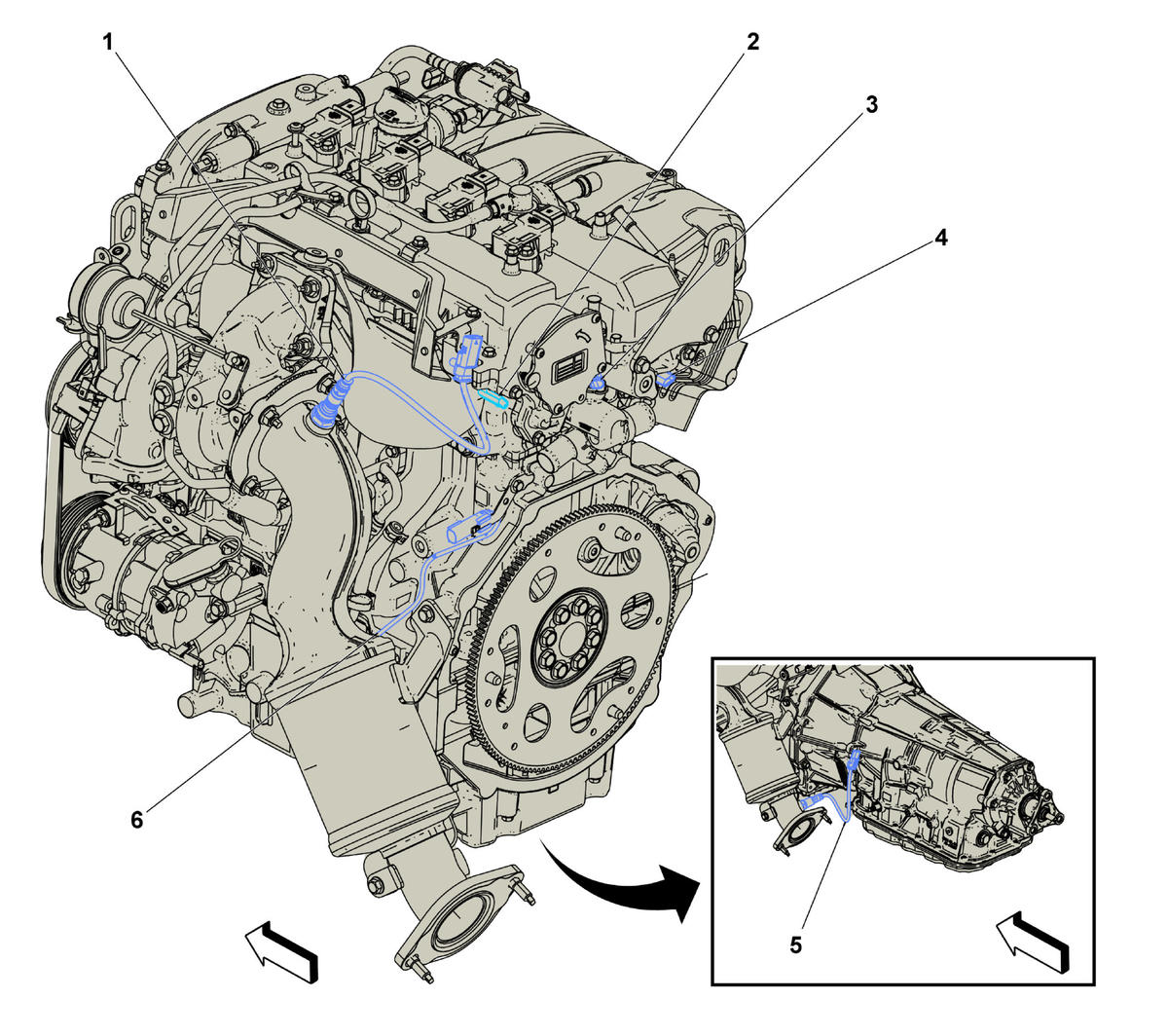

Left Rear of Engine Components (LTG)

GM4939246Courtesy of GENERAL MOTORS COMPANY
Items
1. B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1
2. B23E Camshaft Position Sensor - Exhaust (LTG) B23E Camshaft Position Sensor - Exhaust
3. B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LF4/LGX/LTG)
4. B23F Camshaft Position Sensor - Intake (LTG) B23F Camshaft Position Sensor - Intake
5. B52B Heated Oxygen Sensor 2 (LTG) B52B Heated Oxygen Sensor 2
6. Q44 Engine Oil Pressure Control Solenoid Valve (LTG) Q44 Engine Oil Pressure Control Solenoid Valve
