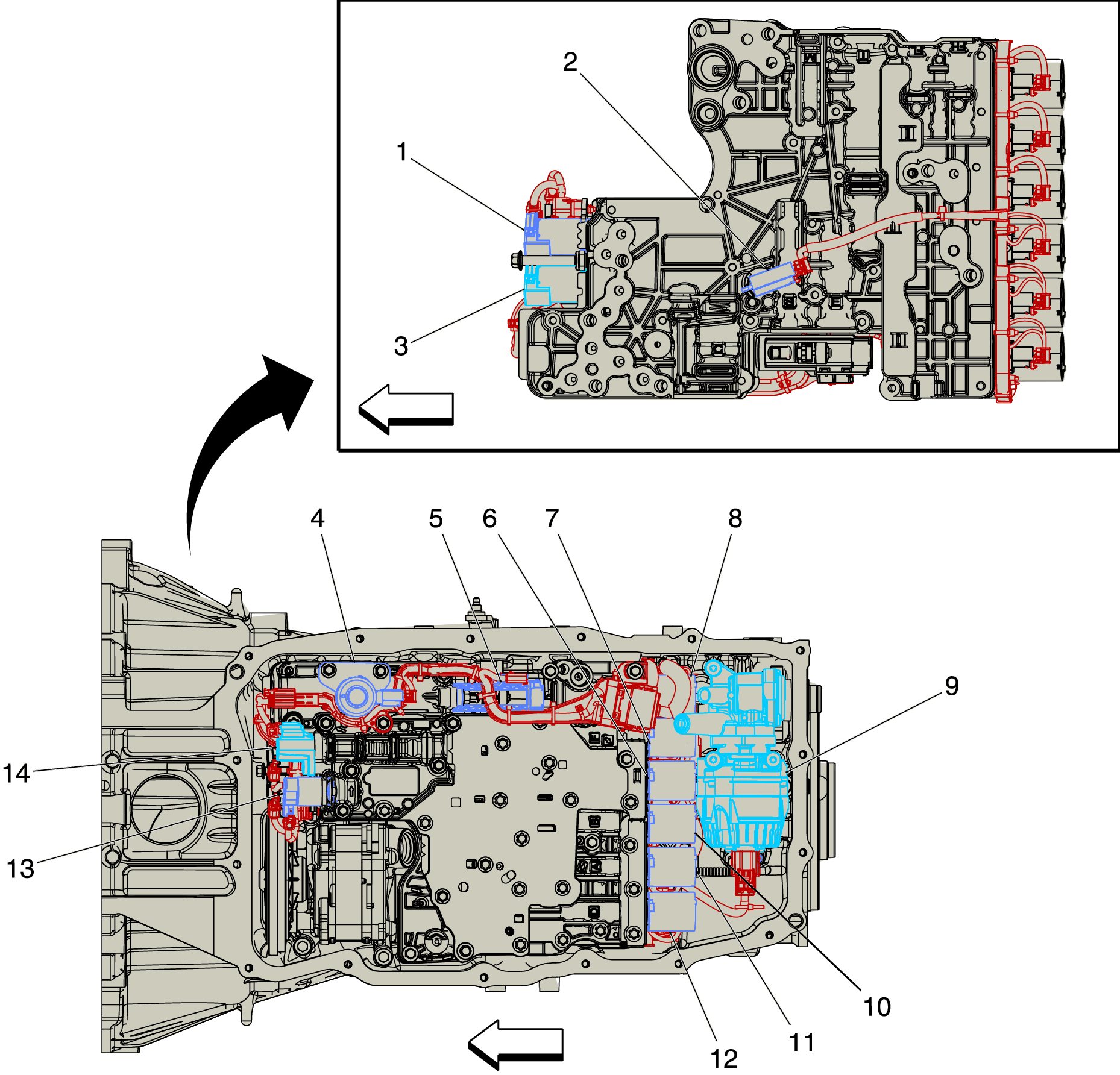

Automatic Transmission Valve Body Components
Automatic Transmission Valve Body Components
| Items |
|---|
| 1. Q77G Transmission Control Solenoid Valve 7 (LSY) Q77G Transmission Control Solenoid Valve 7 (MHS/MHW) |
| 2. B13 Transmission Fluid Temperature Sensor |
| 3. Q77H Transmission Control Solenoid Valve 8 (LSY) Q77H Transmission Control Solenoid Valve 8 (MHS/MHW) |
| 4. M123 Transmission Park Valve Lock Solenoid Actuator M123 Transmission Park Valve Lock Solenoid Actuator (MHS/MHW) |
| 5. B315A Transmission Range Control Valve 1 Position Switch |
| 6. Q77E Transmission Control Solenoid Valve 5 (LSY) Q77E Transmission Control Solenoid Valve 5 (MHS/MHW) |
| 7. Q77F Transmission Control Solenoid Valve 6 (LSY) Q77F Transmission Control Solenoid Valve 6 (MHS/MHW) |
| 8. Q77C Transmission Control Solenoid Valve 3 (LSY) Q77C Transmission Control Solenoid Valve 3 (MHS/MHW) |
| 9. G5 Transmission Fluid Pump - Electric/Auxiliary G5 Transmission Fluid Pump - Electric/Auxiliary (MHS/MHW) |
| 10. Q77B Transmission Control Solenoid Valve 2 (LSY) Q77B Transmission Control Solenoid Valve 2 (MHS/MHW) |
| 11. Q77A Transmission Control Solenoid Valve 1 (LSY) Q77A Transmission Control Solenoid Valve 1 (MHS/MHW) |
| 12. Q77D Transmission Control Solenoid Valve 4 (LSY) Q77D Transmission Control Solenoid Valve 4 (MHS/MHW) |
| 13. Q77J Transmission Control Solenoid Valve 9 (LSY) Q77J Transmission Control Solenoid Valve 9 (MHS/MHW) |
| 14. B315A Transmission Range Control Valve 1 Position Switch |
