Installation Procedure

CAUTION:

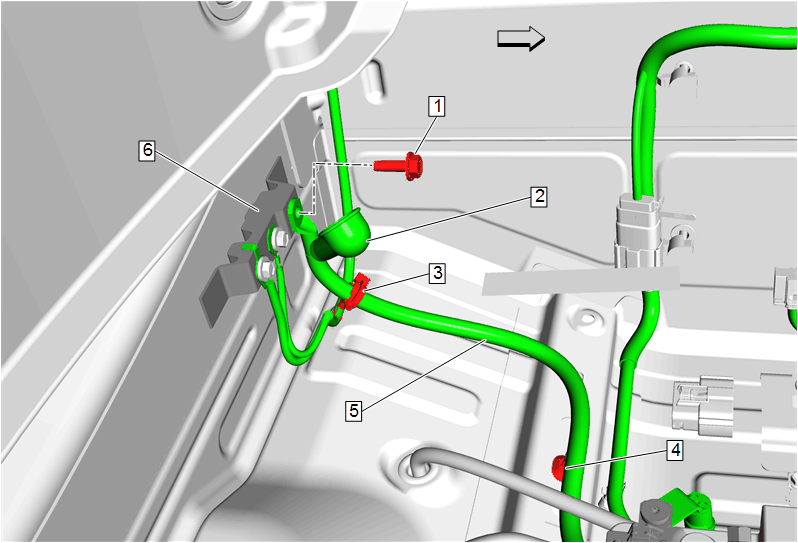

Battery Negative Cable Ground Bolt (1) @ Body Ground Wiring Nut (6) - Install and tighten 22 N.m (16 lb ft)
Retainer Clip (3) - Engage
Retainer (4) - Engage
Protective Boot (2) - Install
Courtesy of GENERAL MOTORS COMPANY

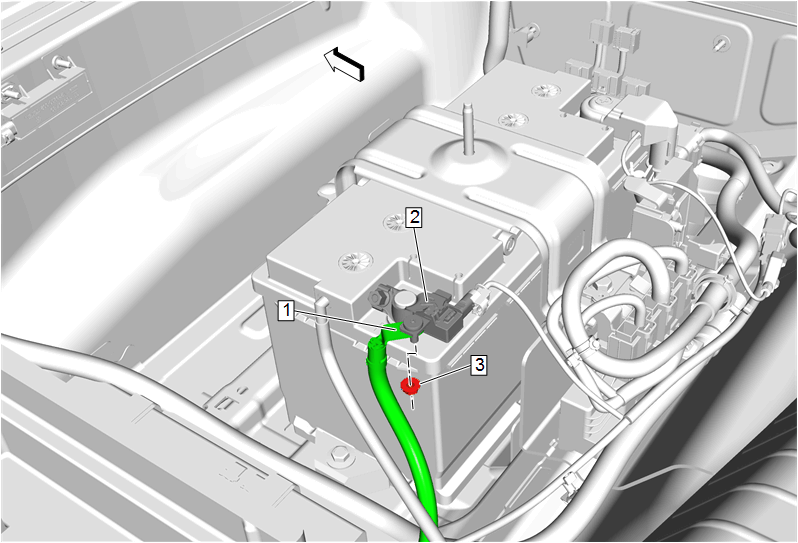

Battery Negative Cable (1) - Install
Battery Negative Cable Nut (3) @ Battery Sensor (2) - Install and tighten 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

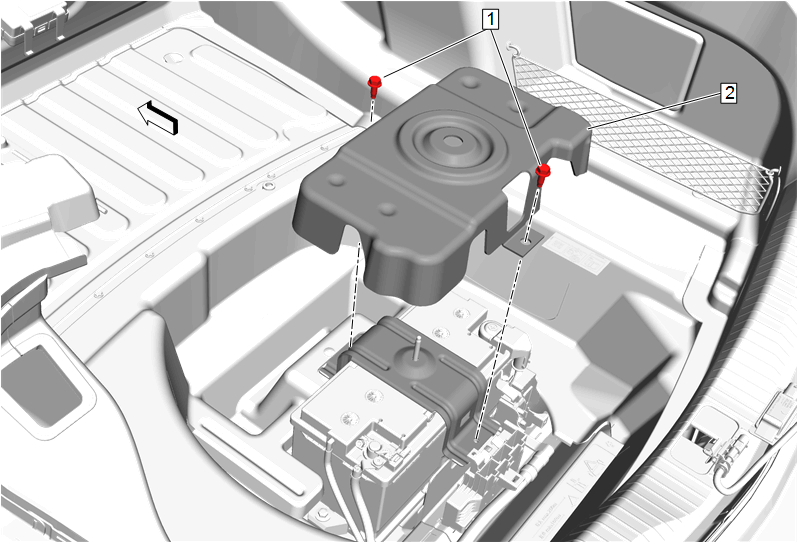

Battery Cover (1) - Install
Battery Cover Bolt (2) - Install and tighten [2x] 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

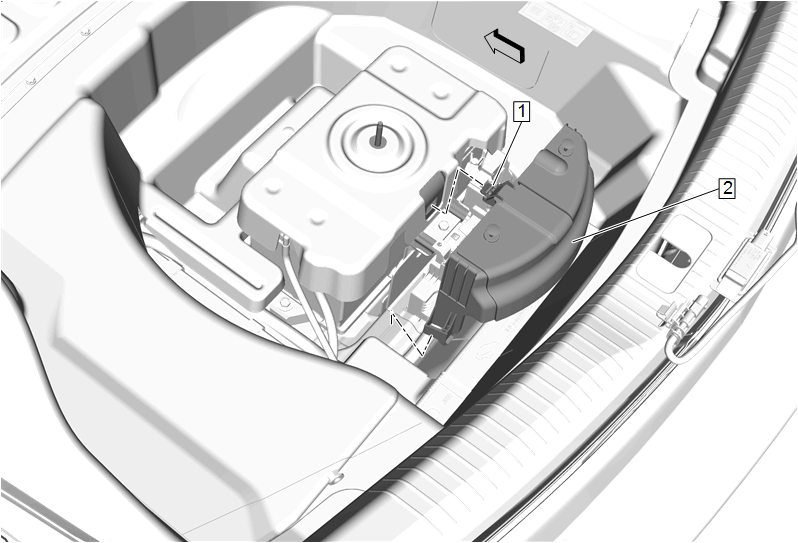

Rear Body Fuse Block Cover (2) - Install
Retaining Tab (1) - Engage
Courtesy of GENERAL MOTORS COMPANY

Rear Compartment Floor Stowage Compartment Cover (2) - Install - Rear Compartment Floor Stowage Compartment Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

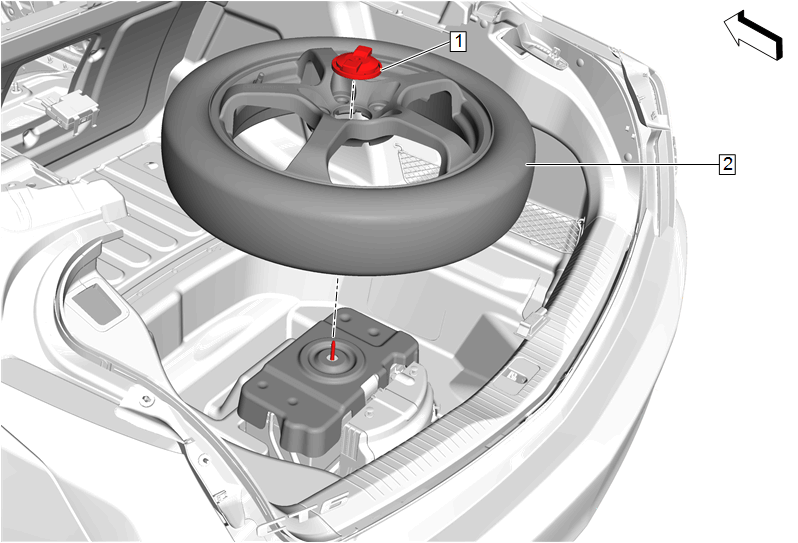

Spare Tire (2) - Install
Jack Stowage Retainer (1) - Hand tighten
Courtesy of GENERAL MOTORS COMPANY

Rear Compartment Floor Panel Trim (1) - Install - Rear Compartment Floor Panel Trim Replacement
