Radio Control Assembly Replacement

WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

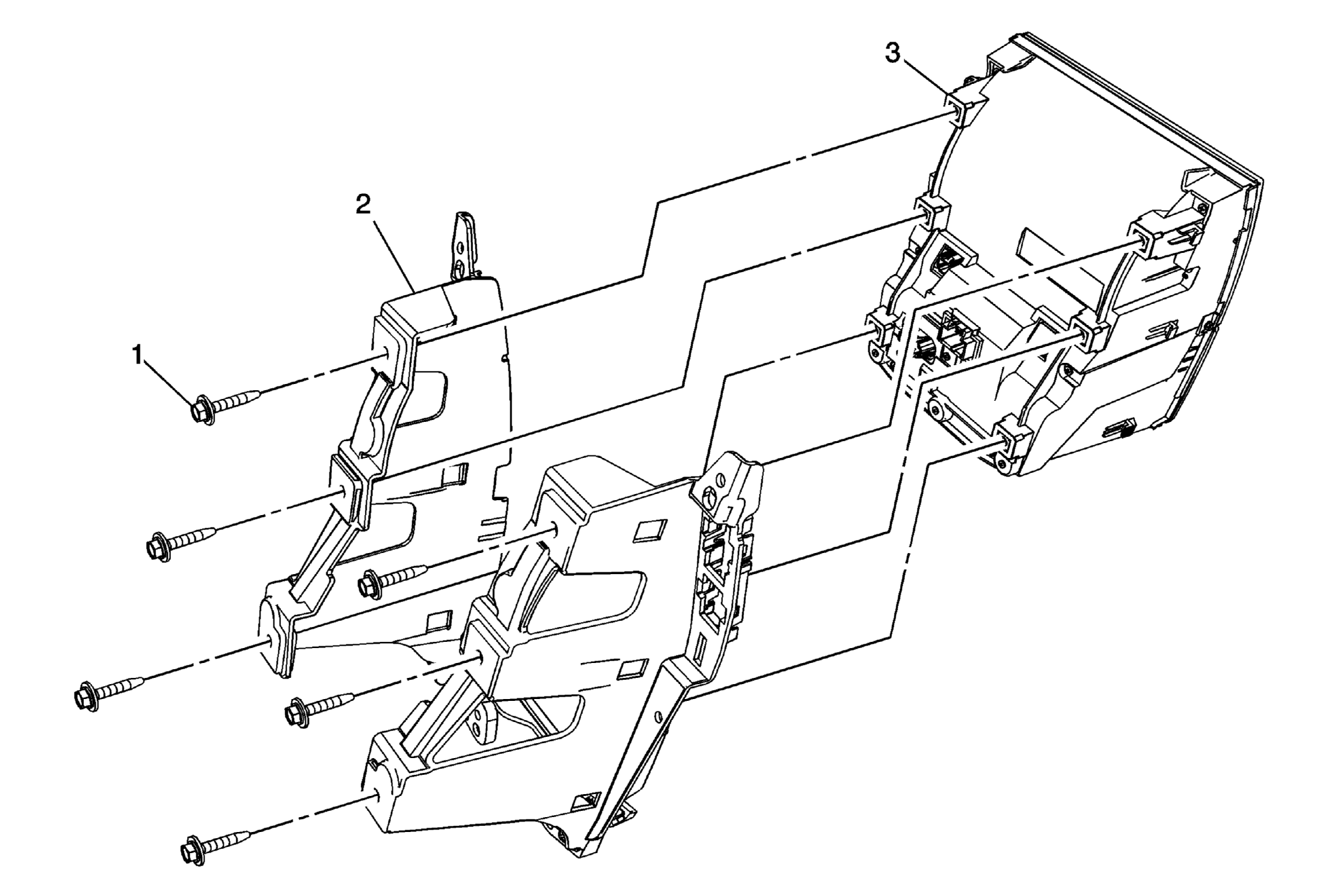

Callout	Component Name
Preliminary Procedure Remove the instrument panel accessory bracket. Refer to Instrument Panel Accessory Bracket Replacement .
1	Radio Control Fasteners (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Accessory Bracket
3	Radio Control Assembly Procedure Remove the radio control from the bracket assembly. Refer to Control Module References for programming and setup information.
