Door Lock Switch Replacement - Driver Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door trim. Refer to Front Side Door Trim Replacement . Reposition insulator, as required.

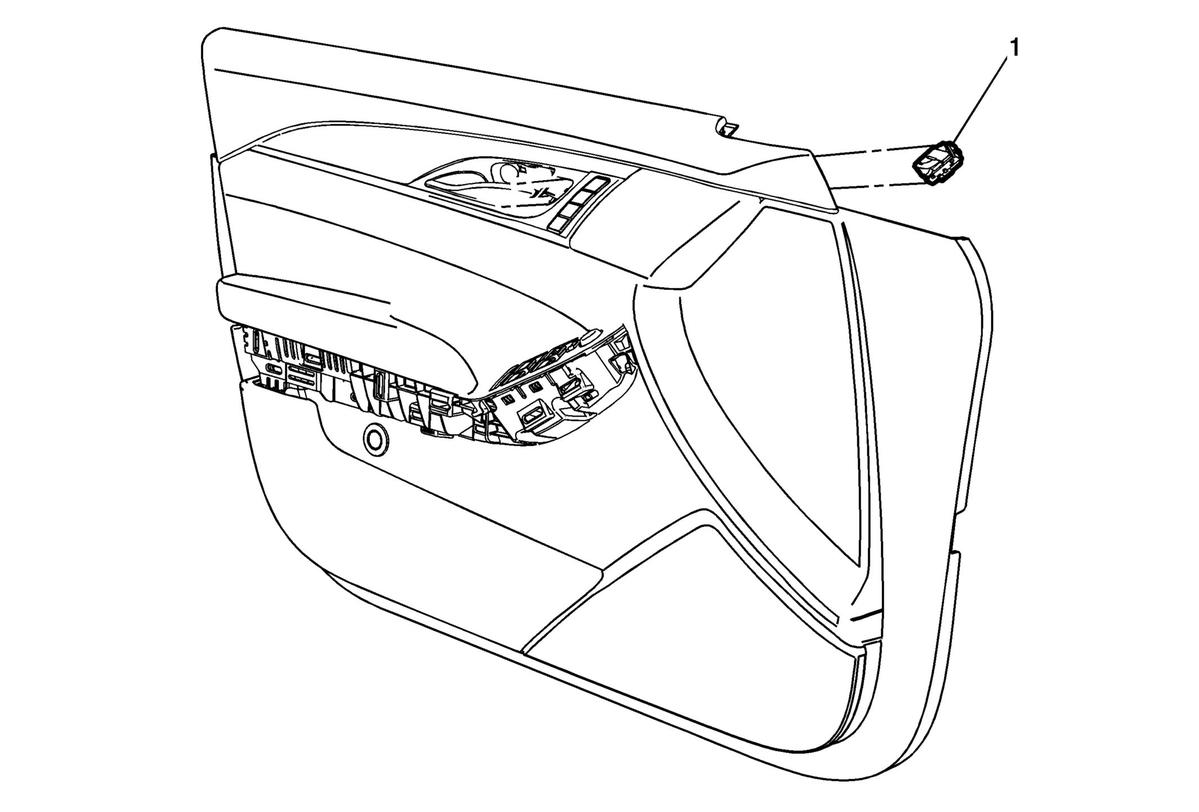

1	Door Lock Switch Driver Side Assembly Procedure Using a plastic pry tool, gently pry on the sides to release the switch. Disconnect the electrical connectors. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedures

Door Lock Switch Driver Side Assembly

Procedure
