Installation Procedure

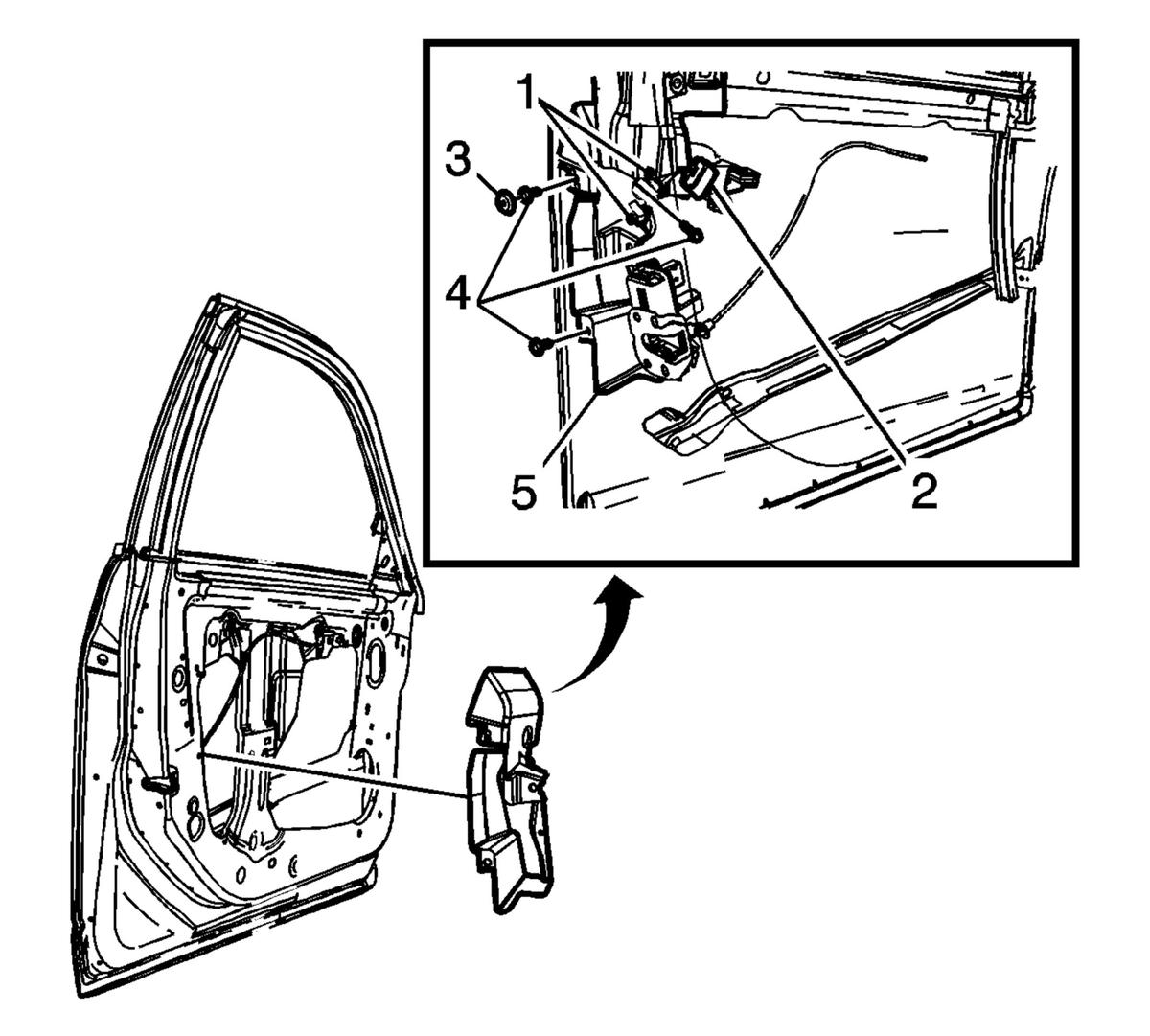

  1. Install the front side door latch cover (5) to cover the lock.
    GM1920241Courtesy of GENERAL MOTORS COMPANY
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the screws (4) to the outer edge of the door and to the inside and tighten to 5 N.m (44 lb in).
  3. Install the screw cover (3).
  4. Connect the electrical connector (2).
  5. Install the wiring harness to the retainers (1).
  6. Install the water deflector.
  7. Install the door trim panel. Refer to Front Side Door Trim Replacement .
