Installation Procedure

  1. Install a NEW seal (2) and the fuel tank module (1).
    GM2811786Courtesy of GENERAL MOTORS COMPANY

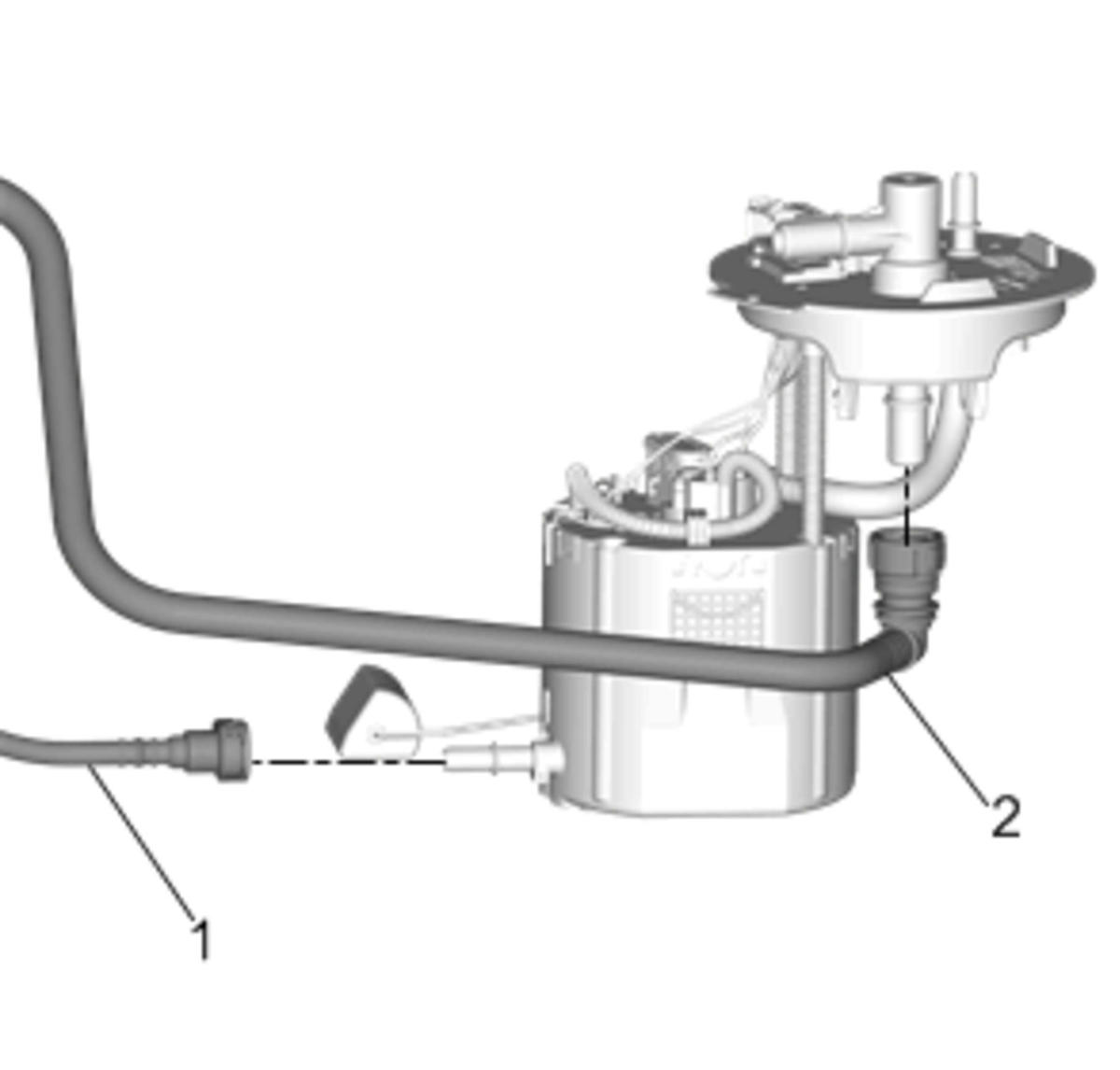

  2. Connect the fuel pump vent hose (2) and transfer hose (1). Plastic Collar Quick Connect Fitting Service
    GM4215429Courtesy of GENERAL MOTORS COMPANY
  3. Use the CH 45722  wrench by turning clockwise and install the lock ring (1).
    GM2811801Courtesy of GENERAL MOTORS COMPANY
  4. Connect the fuel pump electrical connector and the quick connects. Plastic Collar Quick Connect Fitting Service
  5. Install the fuel tank. Refer to Fuel Tank Replacement .
