Rear Closure Hands Free Module Replacement

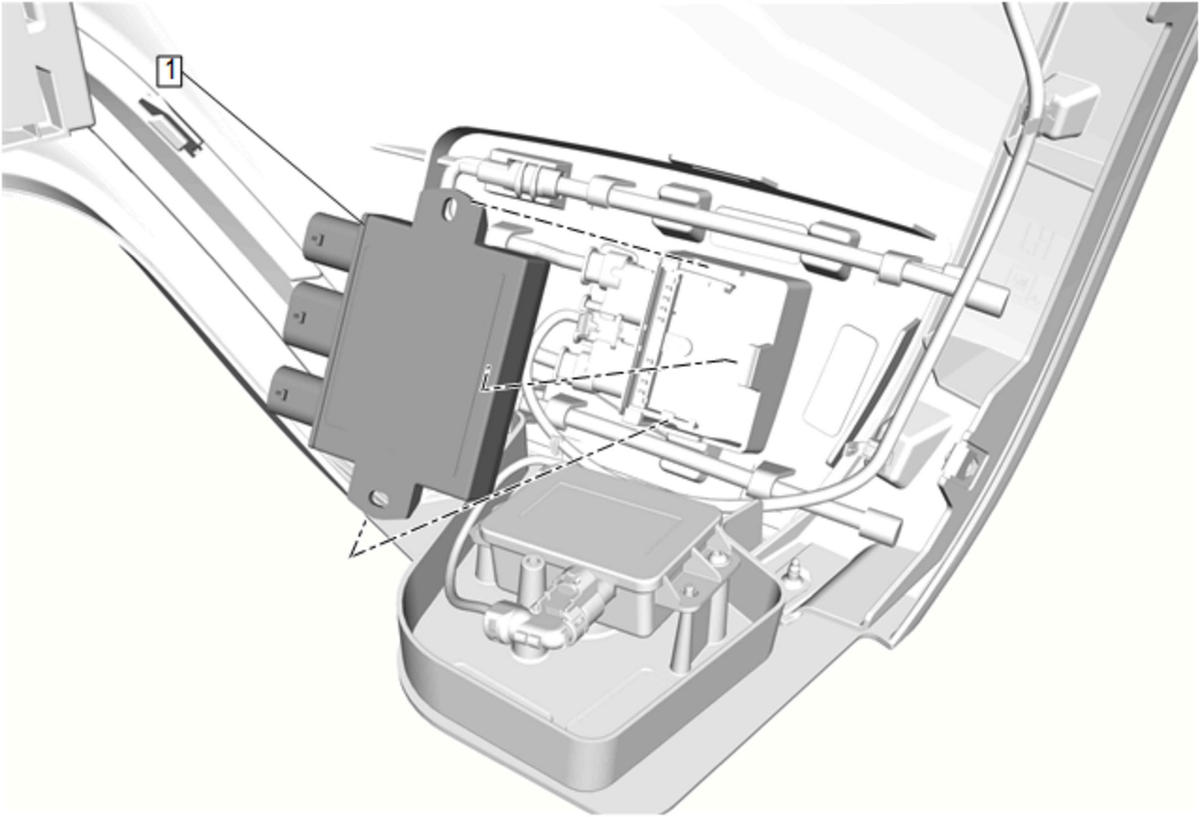

GM5081556Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Callout Component Name
Preliminary Procedure
Rear Closure Hands Free Sensor Shield Replacement
1 Rear Closure Hands Free Module

Procedure

  1. Disconnect all electrical connectors.
  2. Release the retaining tabs.
