Installation Procedure

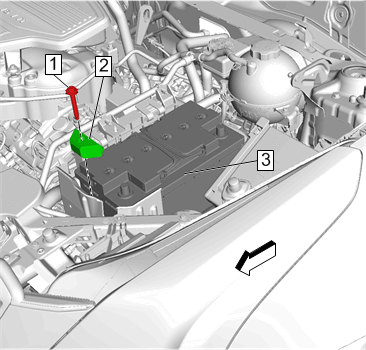

  1. GM4285236Courtesy of GENERAL MOTORS COMPANY

    Battery (3) - Install

  2. Battery Hold Down Retainer (2) - Install
    3. CAUTION:

    Refer to Fastener Caution

  3. Battery Hold Down Bolt (1) - Install and tighten 22 N.m (16 lb ft)

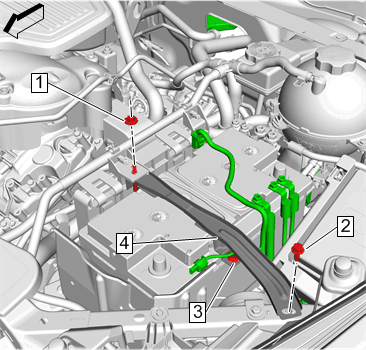

  4. GM4285235Courtesy of GENERAL MOTORS COMPANY

    Battery Hold Down Retainer (4) - Install

  5. Install the engine control module bracket along with the engine control module to the battery tray. Engine Control Module Bracket Replacement
  6. Battery Hold Down Retainer Nut (1) - Install and tighten 9 N.m (80 lb in)
  7. Battery Hold Down Retainer Bolt (2) - Install and tighten 9 N.m (80 lb in)
  8. Retainer (3) - Engage
  9. GM4296734Courtesy of GENERAL MOTORS COMPANY

    Fuse Block (1) - Install - Fuse Block Replacement

  10. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
