Installation Procedure

WARNING: This page is about a different car, the 2018 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

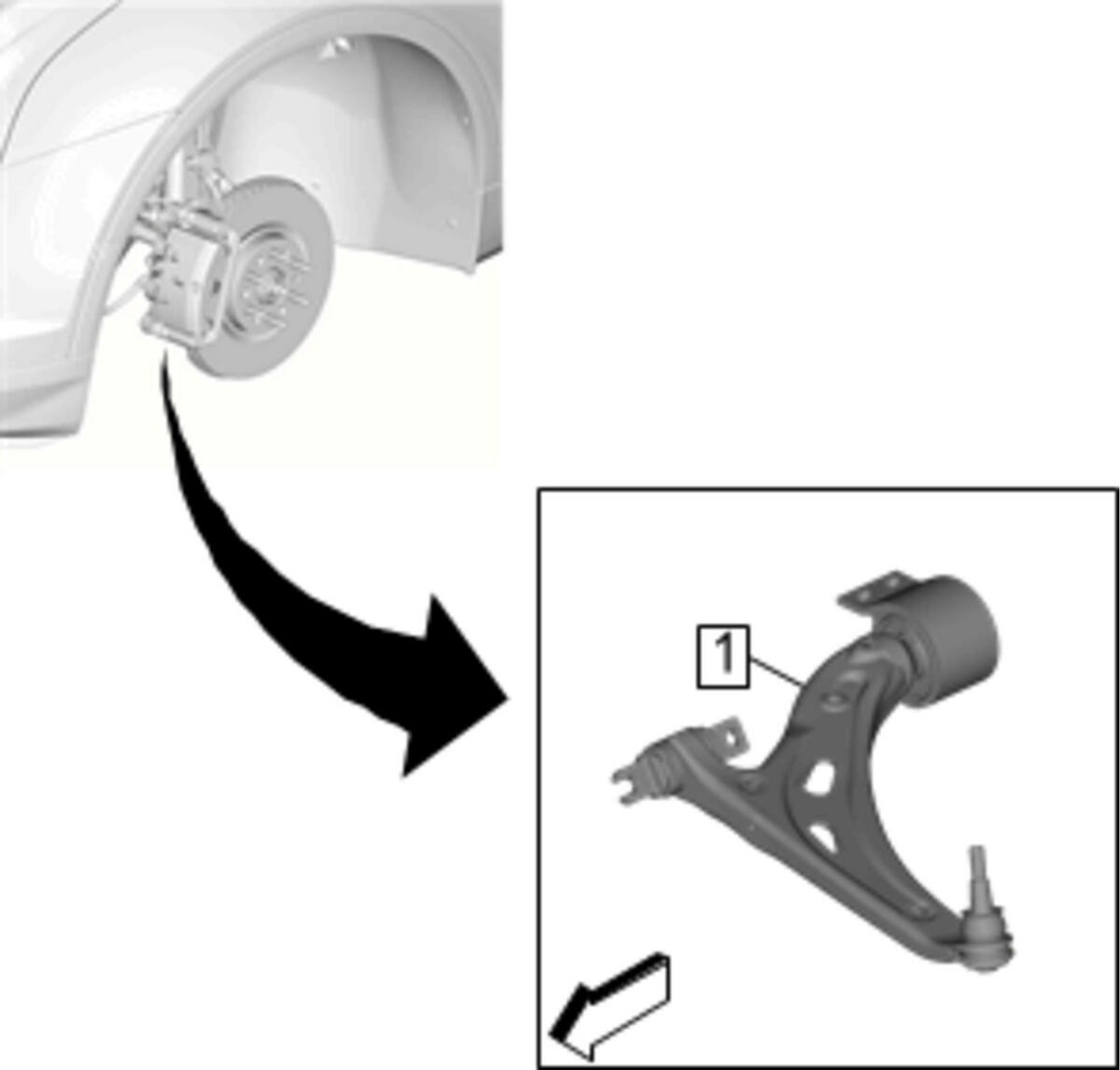

Position the front lower control arm (1) on the vehicle.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

Front Lower Control Arm Rear Bolt(2) - Install NEW[2x]
Front Lower Control Arm Rear Nut(1) - Install, but do NOT tighten[2x]
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Front Lower Control Arm Front Bolt(1) - Install NEW and tighten[2x]
1. First Pass: 100 N.m (74 lb ft)
2. Final Pass: (90 - 105 degrees)
Courtesy of GENERAL MOTORS COMPANY

Front Lower Control Arm Rear Bolt(2) - Tighten[2x]
1. First Pass: 100 N.m (74 lb ft)
2. Final Pass: (90 - 105 degrees)
Courtesy of GENERAL MOTORS COMPANY

Front Lower Control Arm Ball Stud Nut(1) - Install and tighten
1. First Pass: 40 N.m (30 lb ft)
2. Final Pass: (100 - 115 degrees)
Courtesy of GENERAL MOTORS COMPANY

{ If equipped }Front Suspension 4 Corner Leveling System Position Sensor (1)@Front Lower Control Arm - Install - Front Suspension 4 Corner Leveling System Position Sensor Replacement
Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
Measure and adjust the wheel alignment. Wheel Alignment Measurement
