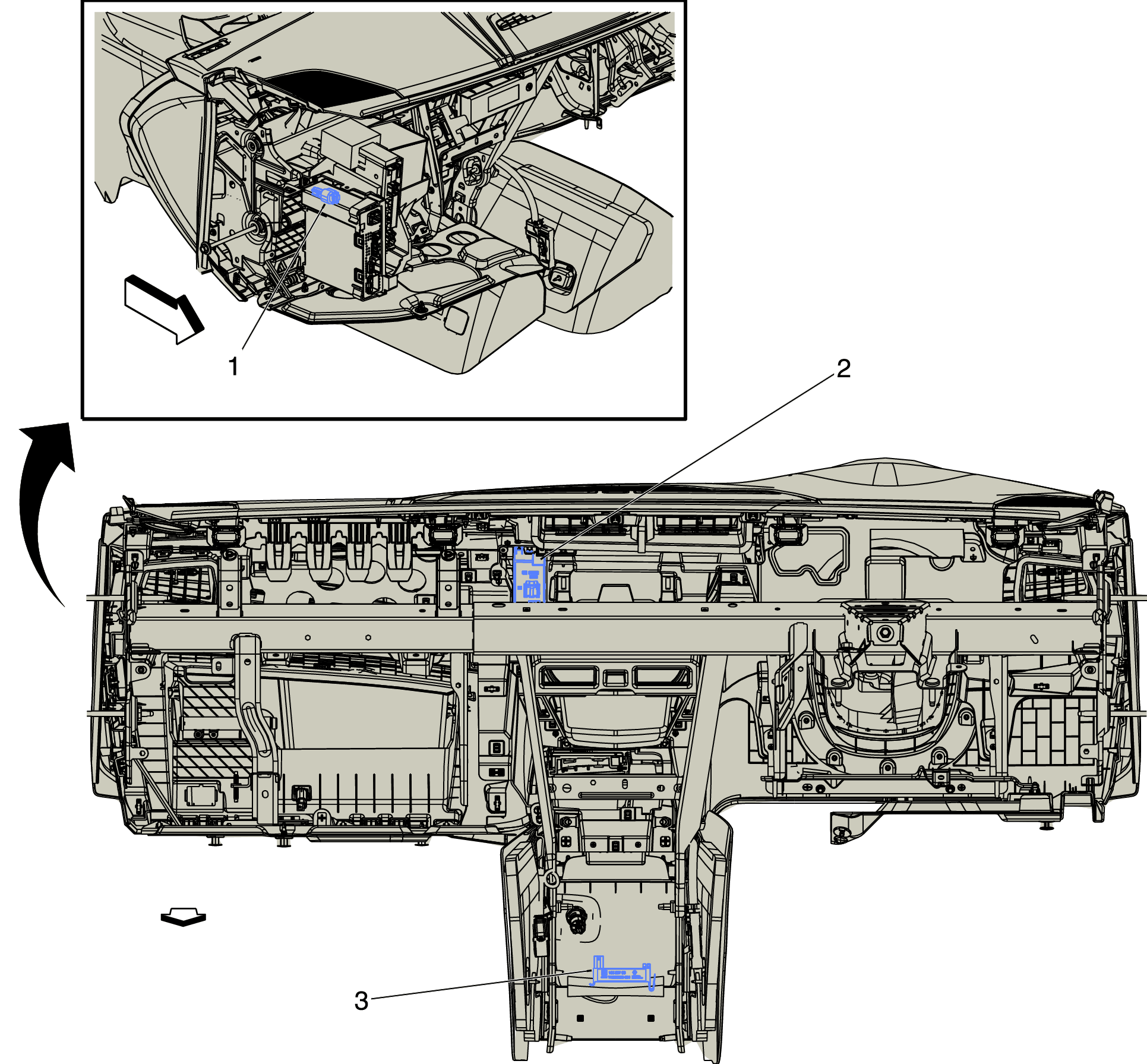

Behind Instrument Panel Components (2 of 3)

GM4278999Courtesy of GENERAL MOTORS COMPANY
Behind Instrument Panel Components (2 of 3)

Items
1. R6F Terminating Resistor - High Speed Extension Bus 2 R6F Terminating Resistor - High Speed Extension Bus 2
2. S48A Multifunction Switch - Instrument Panel S48A Multifunction Switch - Instrument Panel
3. T10U Keyless Entry Antenna - Instrument Panel T10U Keyless Entry Antenna - Instrument Panel
