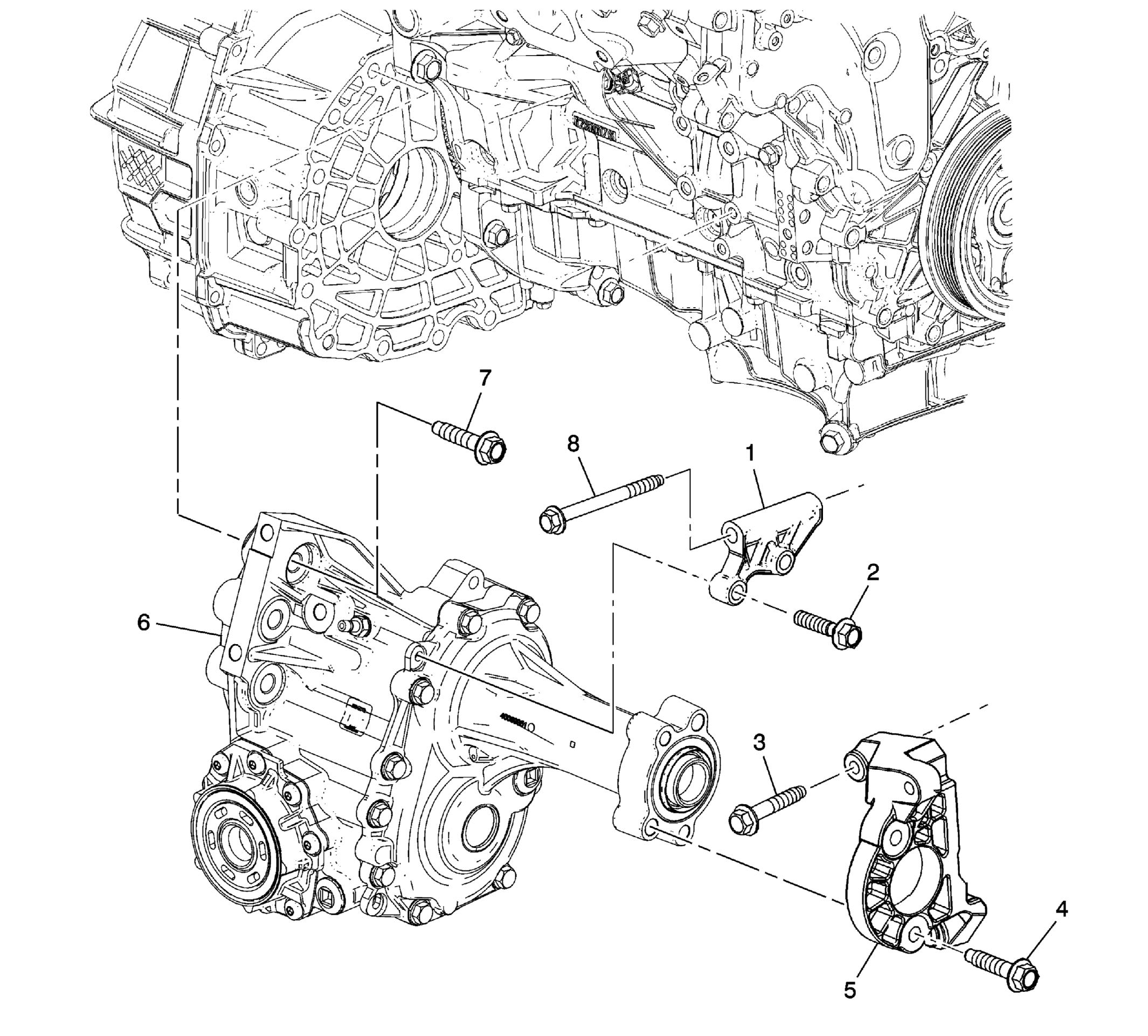

Transfer Case Mounting

GM2535280Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Transaxle Brace
2 Transaxle Brace Bolt
3 Transfer Case Bracket-to-Engine Bolt
4 Transfer Case Bracket Bolt
5 Transfer Case Bracket
6 Transfer Case
7 Transfer Case-to-Transmission Bolt
8 Transaxle Brace-to-Engine Bolt
