Power, Ground, Serial Data and Controls (Z95)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

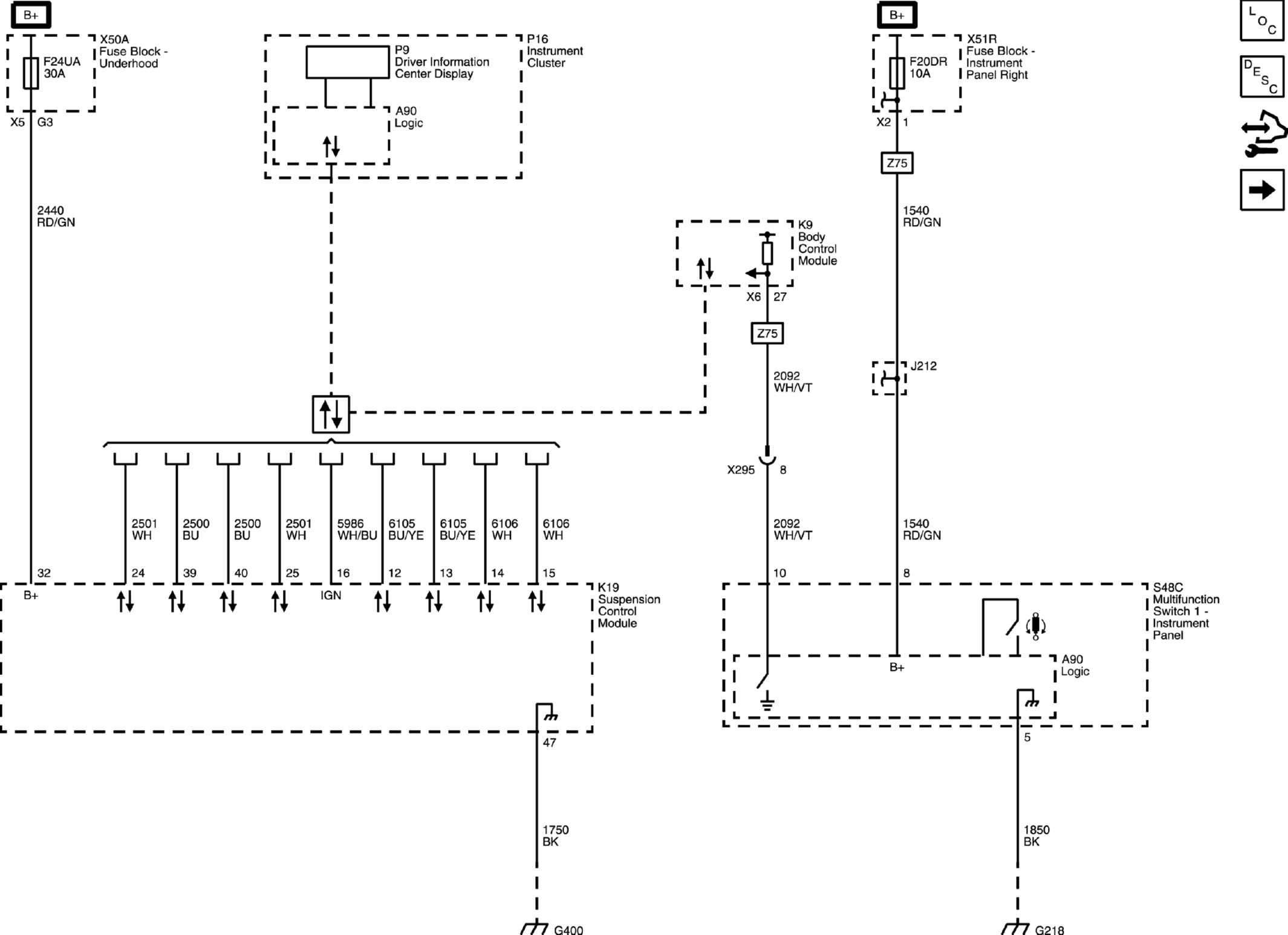

Power, Ground, Serial Data and Controls (Z95)
Courtesy of GENERAL MOTORS COMPANY
