Liftgate Side Sensor Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

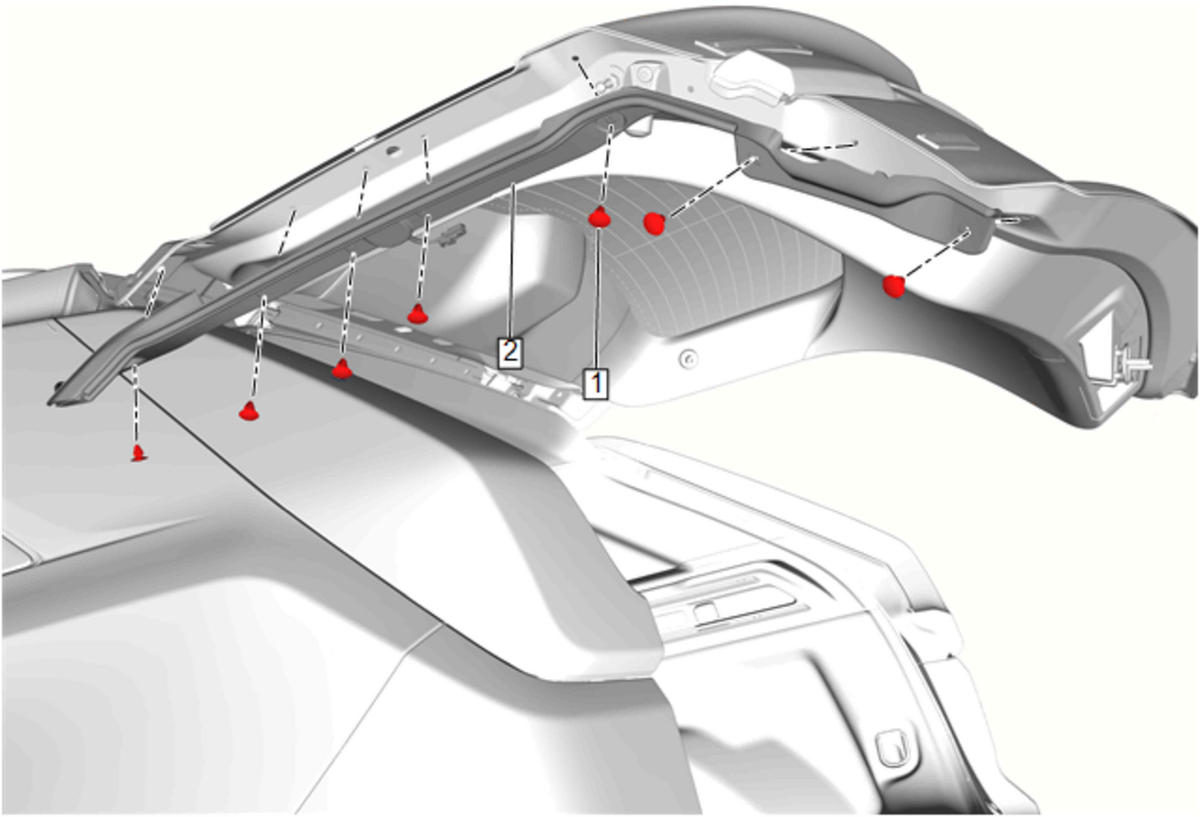

Callout
Component Name
Preliminary Procedures
Liftgate Power Assist Actuator Replacement
Liftgate Upper Side Trim Finish Panel Replacement
1
Liftgate Side Sensor Retainer [7x]
2
Liftgate Side Sensor
Procedure
Disconnect the electrical connector.
