Video Processing Module Replacement
WARNING: This page is about a different car, the 2020 Cadillac CT6. However, it is still accessible from the selected car via links, so may be relevant.

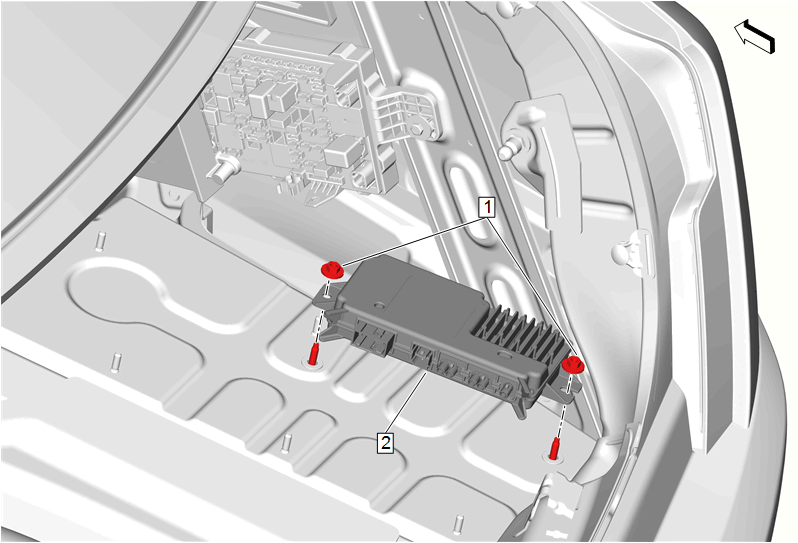

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Compartment Side Trim Replacement - Right Side |
|
| 1 | Video Processing Module Nut [2x]
CAUTION:
Refer to Fastener Caution . Tighten 9N.m (80 lb in) |
| 2 | Video Processing Module Procedure
|
