Installation Procedure

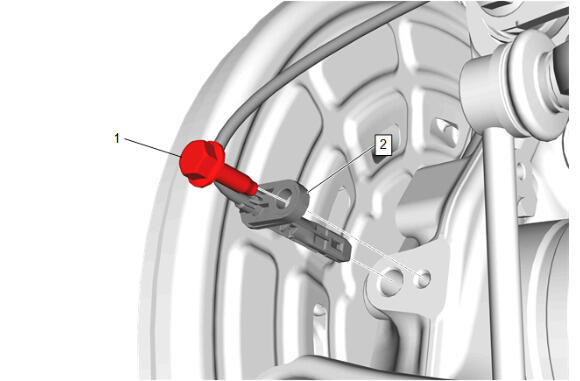

  1. GM5475772Courtesy of GENERAL MOTORS COMPANY

    Rear Wheel Speed Sensor (2) - Install

    2. CAUTION:

    Fastener Caution

  2. Rear Wheel Speed Sensor Bolt (1) - Install and tighten - Fastener Specifications

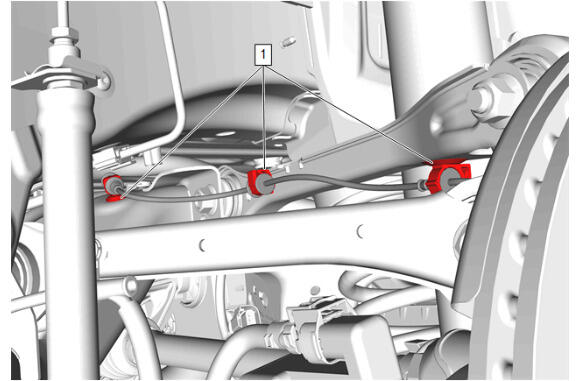

  3. GM5475771Courtesy of GENERAL MOTORS COMPANY

    Install the rear wheel speed sensor harness to the retainers (1) and secure the retainers (1).

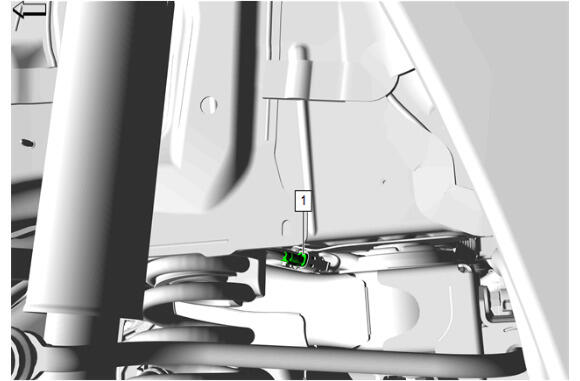

  4. GM5475769Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

  5. Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
  6. Remove the support and lower the vehicle.
