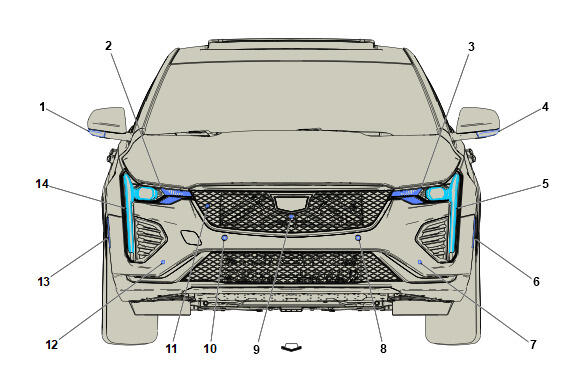

Front of Vehicle Components
Front of Vehicle Components
| Component Name | Callout |
|---|---|
| E4Z Outside Rearview Mirror Turn Signal Lamp - Right | 1 |
| E4LF Front Turn Signal Lamp - Left E4LF Front Turn Signal Lamp - Left | 2 |
| E4RF Front Turn Signal Lamp - Right E4RF Front Turn Signal Lamp - Right | 3 |
| E4Y Outside Rearview Mirror Turn Signal Lamp - Left | 4 |
| E13LA Front Headlamp - Left E13LA Front Headlamp - Left (-T87) , or E13LA Front Headlamp - Left (T87) | 5 |
| E2LF Front Side Marker Lamp - Left E2LF Front Side Marker Lamp - Left | 6 |
| B306A Parking Assist Alarm Sensor - Front Left Outer (UD5) B306A Parking Assist Alarm Sensor - Front Left Outer | 7 |
| B306B Parking Assist Alarm Sensor - Front Left Middle (UD5) B306B Parking Assist Alarm Sensor - Front Left Middle | 8 |
| B306C Parking Assist Alarm Sensor - Front Right Middle (UD5) B306C Parking Assist Alarm Sensor - Front Right Middle | 9 |
| B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor | 10 |
| B306D Parking Assist Alarm Sensor - Front Right Outer (UD5) B306D Parking Assist Alarm Sensor - Front Right Outer | 11 |
| E2RF Front Side Marker Lamp - Right E2RF Front Side Marker Lamp - Right | 12 |
| E13RA Front Headlamp - Right E13RA Front Headlamp - Right (-T87) , or E13RA Front Headlamp - Right (T87) | 13 |
