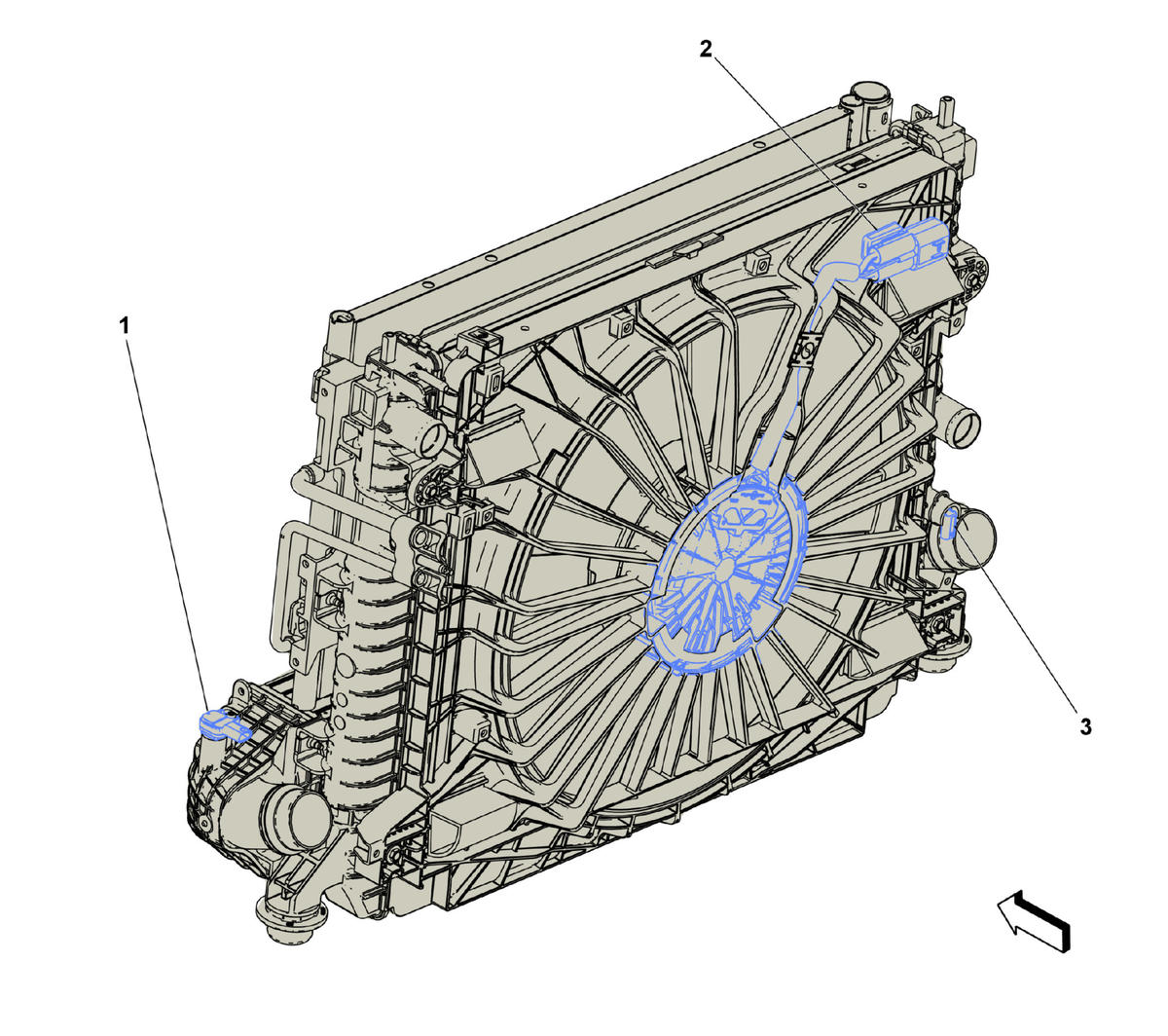

Radiator Assembly Components

GM5890345Courtesy of GENERAL MOTORS COMPANY
Radiator Assembly Components

Component Name Callout
B111 Turbocharger/Supercharger Boost Pressure Sensor B111 Turbocharger/Supercharger Boost Pressure Sensor 1
G10 Cooling Fan Motor G10 Engine Cooling Fan Motor 2
B203 Radiator Coolant Temperature Sensor B203 Radiator Coolant Temperature Sensor 3
