Installation Procedure

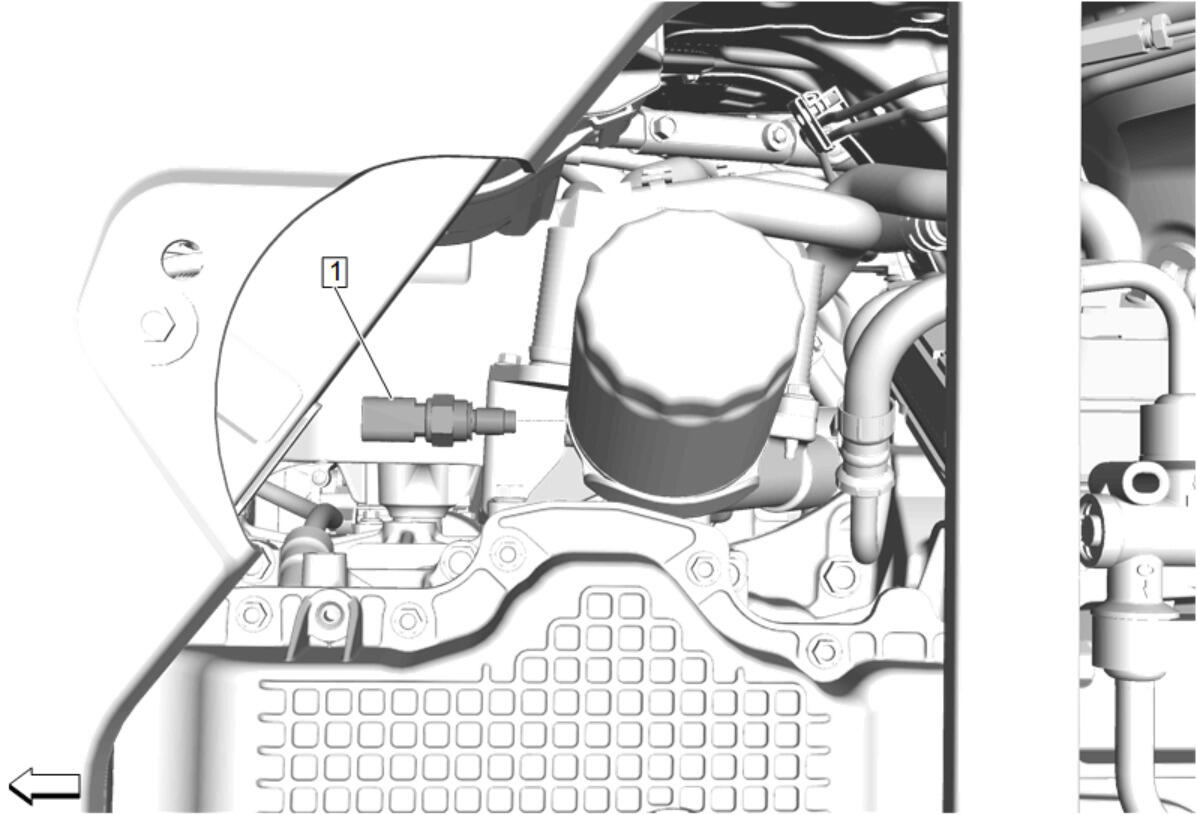

  1. GM5398921Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Component Fastener Tightening Caution .

    Engine Oil Temperature Sensor (1) - Install - Fastener Specifications

  2. Connect the electrical connector.
  3. Engine Wiring Harness Retainer @ Oil Pan - Connect
  4. Remove the support and lower the vehicle.
