Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Refer to SIR Inflator Module Handling and Storage Warning .

WARNING:

Refer to SIR Warning .

Disable the SIR system. SIR Disabling and Enabling
Courtesy of GENERAL MOTORS COMPANY

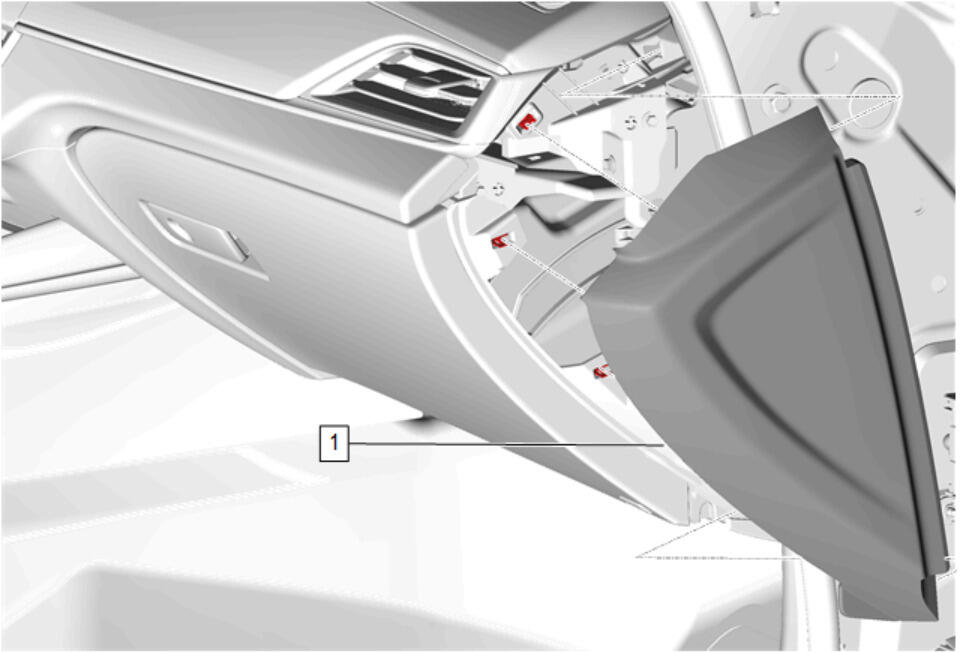

With a flat bladed plastic trim tool, start at the front and work your way back to release the clips.
Instrument Panel Outer Trim Cover - Right Side (1) - Remove
{If equipped} Disconnect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Prior to disconnecting the BCM, one or both front windows should be down to allow access into the vehicle once the door is closed.

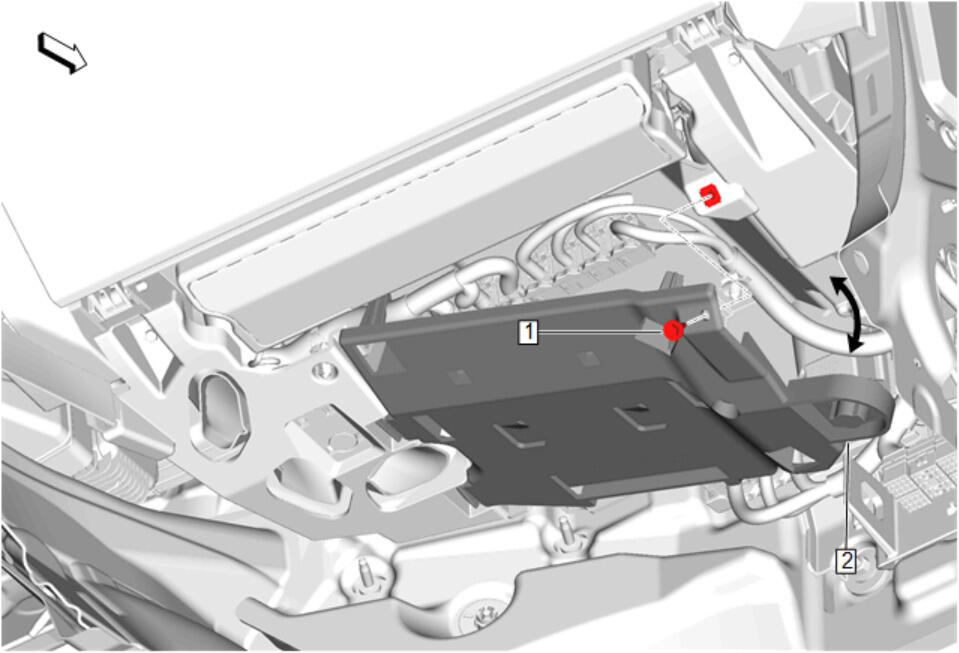

Body Control Module Bracket Bolt (1) - Remove
Unlock and lower the body control module bracket (2).
Disconnect the electrical connectors.
Close and lock the body control module bracket (2) into the instrument panel lower trim panel insulator.
Courtesy of GENERAL MOTORS COMPANY

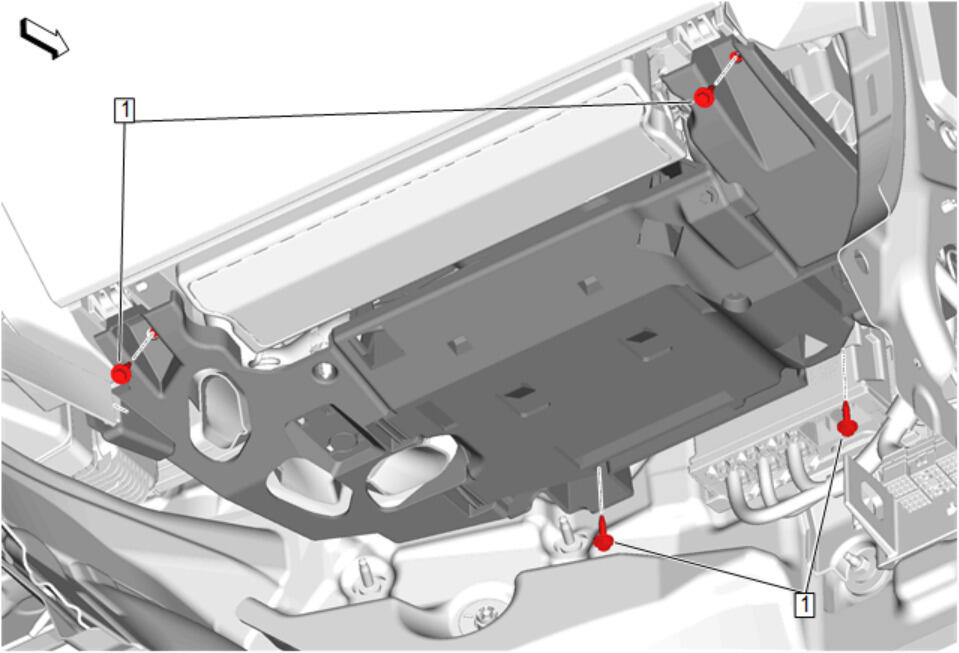

Instrument Panel Insulator Bolt (1) - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Use a plastic trim tool if necessary.

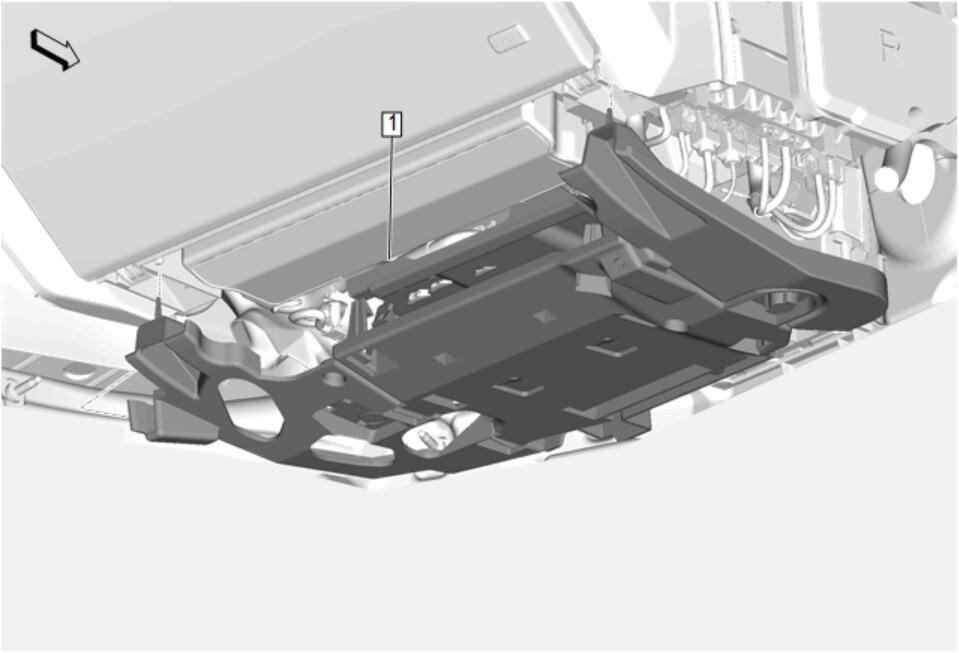

Release the front edge of the front floor console extension panel from the instrument panel lower trim panel insulator (1).
Instrument Panel Lower Trim Panel Insulator (1) - Remove
Disconnect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

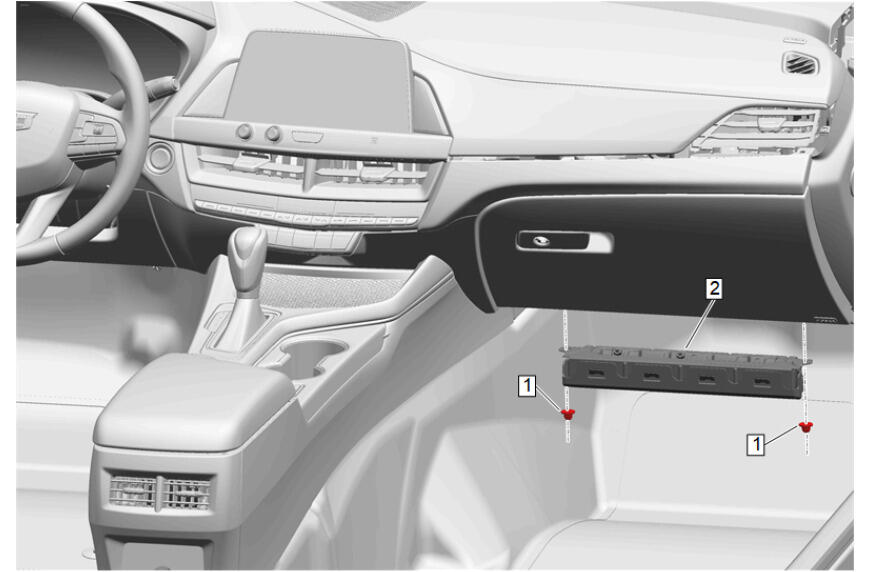

Instrument Panel Lower Airbag Nut (1) - Remove [2x]
Instrument Panel Lower Airbag - Passenger Side (2) - Remove
Disconnect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

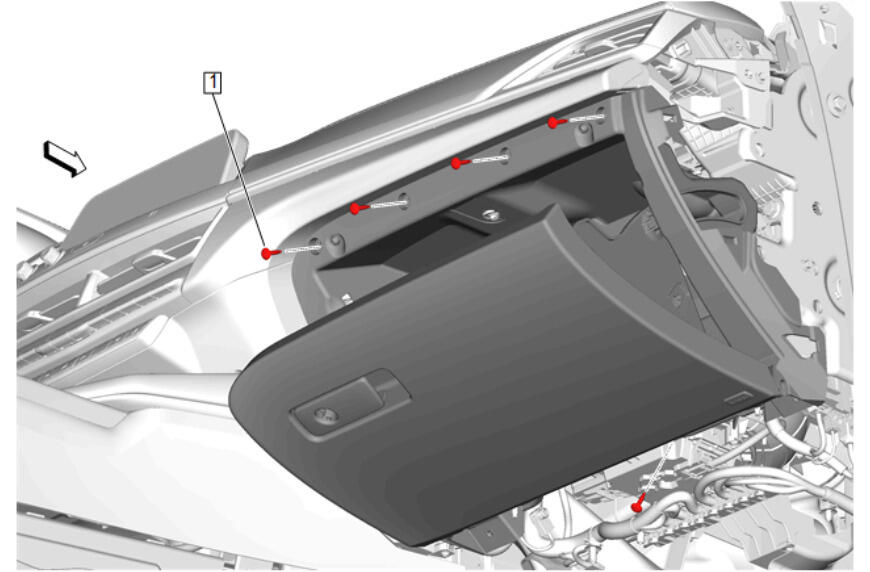

Instrument Panel Compartment Bolt (1) - Remove [5x]
Courtesy of GENERAL MOTORS COMPANY

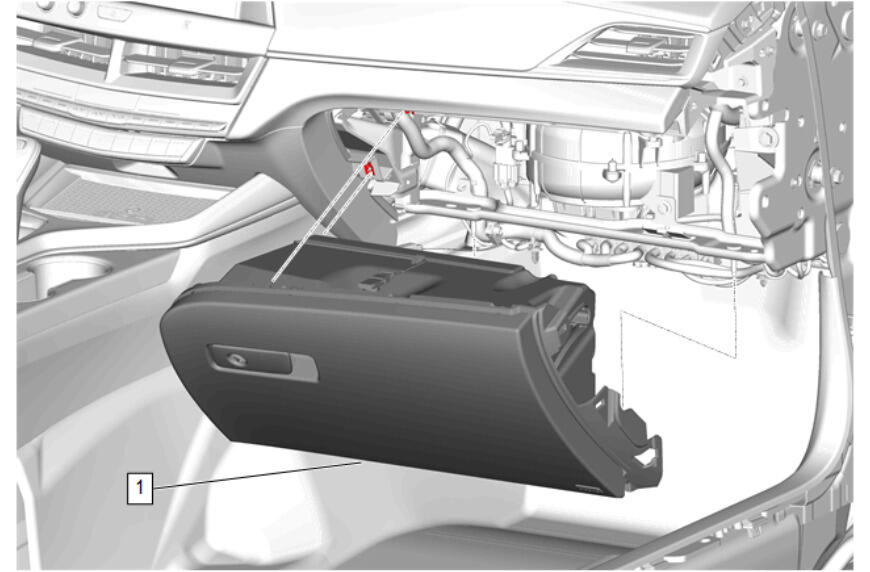

Instrument Panel Compartment (1) - Remove
Disconnect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Disconnect the electrical connectors.
Release the retaining tabs.
Driver Monitoring System Module (1) - Remove
