Installation Procedure

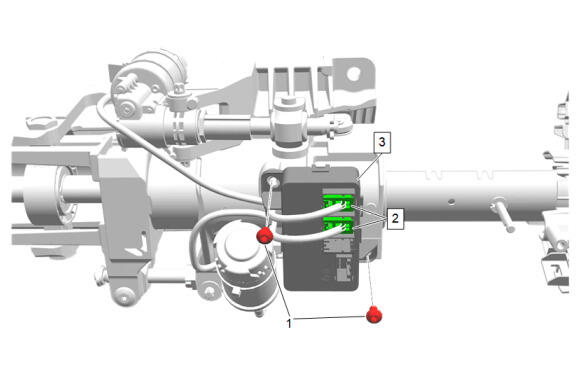

  1. GM5861059Courtesy of GENERAL MOTORS COMPANY

    Steering Column Tilt Wheel and Telescope Control Module (3) - Install

  2. Connect the electrical connectors (2)
    3. CAUTION:

    Refer to Fastener Caution .

  3. Steering Column Control Module Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
  4. Steering Column - Install - Steering Column Replacement
  5. Program the steering column tilt wheel and telescope control module. Control Module References
