Rear Closure Hands Free Module Replacement

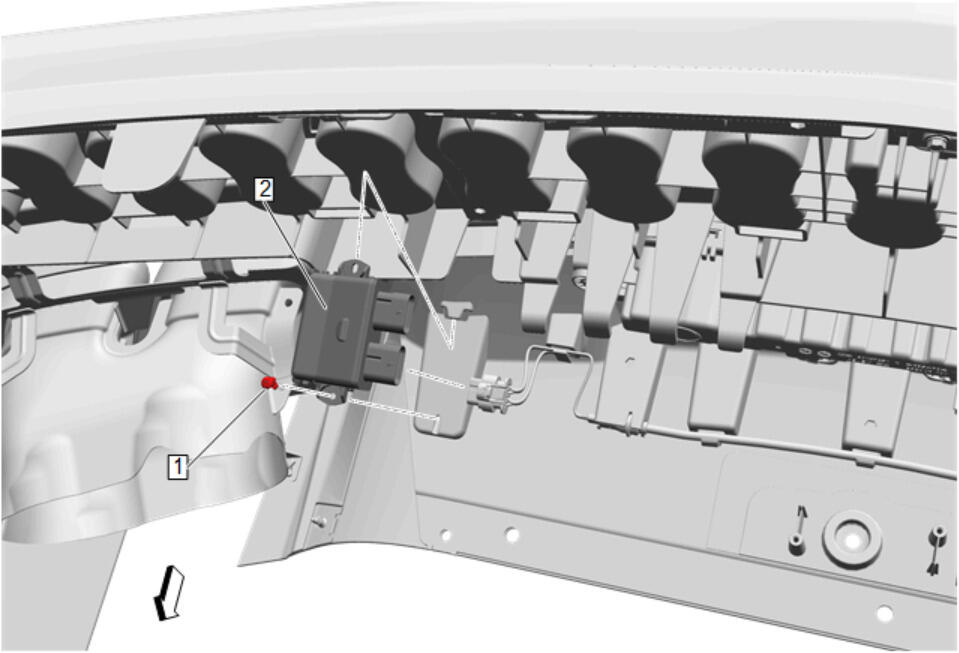

GM5311826Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Eye Protection Warning .

Preliminary Procedure Rear Bumper Fascia Removal and Installation
1 Rear Closure Hands Free Module Rivet
Procedure
Drill out the rivet.
2 Rear Closure Hands Free Module
Procedure
Disconnect the electrical connectors.
