Automatic Transmission Components

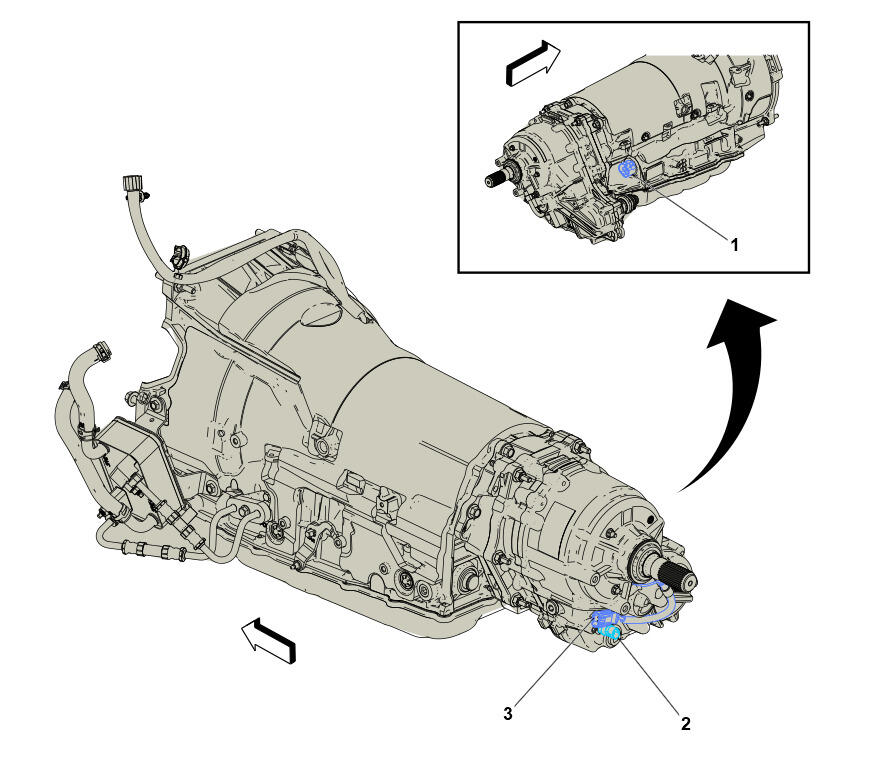

GM5326519Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Automatic Transmission Components

Components
1. T12 Automatic Transmission
T12 Automatic Transmission X1 , or
T12 Automatic Transmission X2 , or
T12 Automatic Transmission X3 .
2. B109 Transfer Case Fluid Temperature Sensor (F46) B109 Transfer Case Fluid Temperature Sensor (F46)
3. M71 Transfer Case Two/Four Wheel Drive Clutch Coil (F46) M71 Transfer Case Two/Four Wheel Drive Clutch Coil (F46)
