Installation Procedure

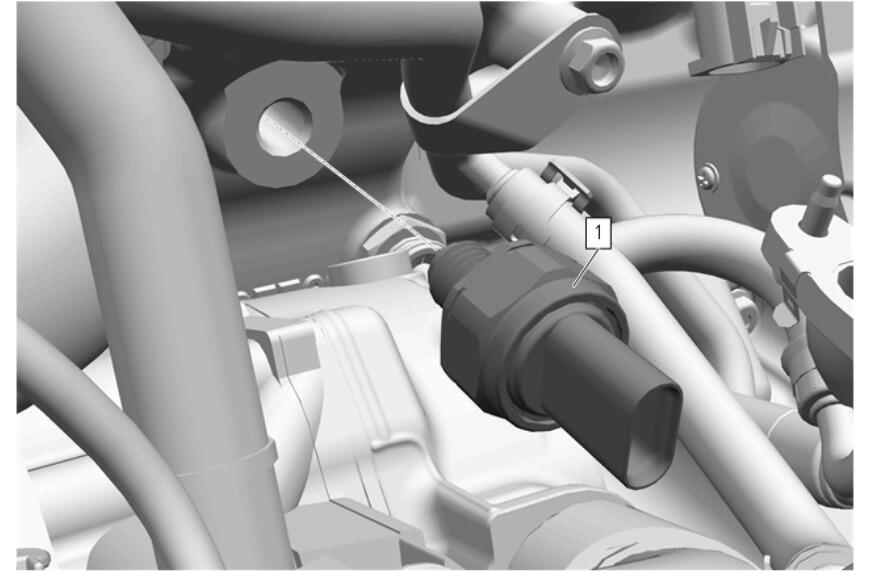

  1. GM5448015Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Component Fastener Tightening Caution .

    CAUTION:

    Refer to Fastener Caution .

    Engine Oil Pressure Sensor (1) - Install and tighten 35 N.m (26 lb-ft)

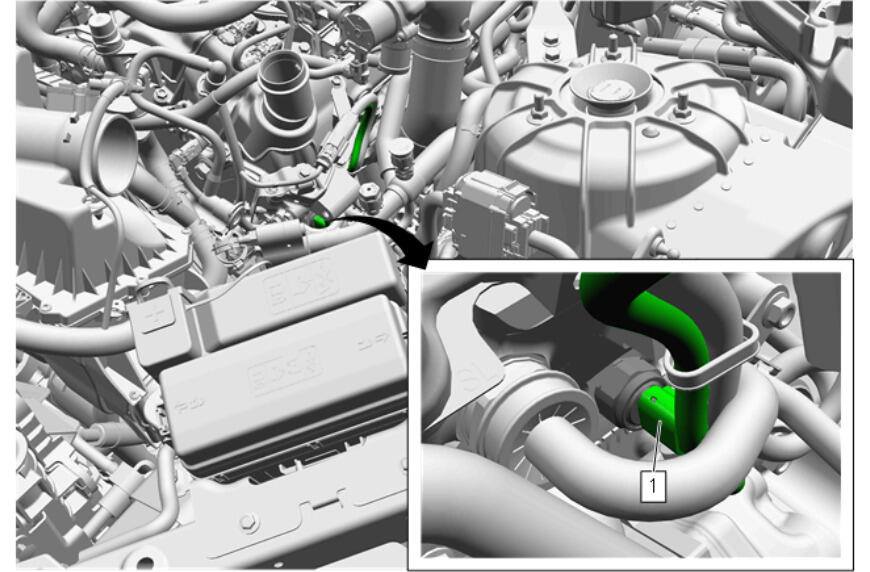

  2. GM5448014Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

  3. Compressor Air Intake Turbocharger - Install - Compressor Air Intake Turbocharger Replacement - Right Side .
