Installation Procedure

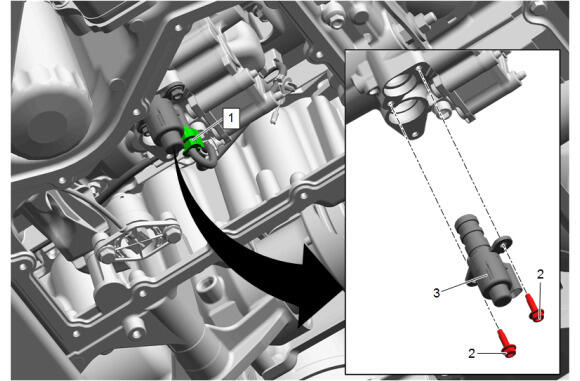

Oil Pump Flow Control Valve (3) - Install
- Oil Pump Flow Control Valve Bolt (2) - Install and tighten [ 2x ] 8.5 N.m (75 lb/in)
- Electrical Connector (1) @ Oil Pump Flow Control Valve - Connect
- Oil Pump Suction Pipe - Install - Oil Pump Suction Pipe and Screen Assembly Replacement
- Lower Oil Pan - Install NEW - Lower Oil Pan Replacement
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
CAUTION:
Refer to Component Fastener Tightening Caution .
