Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

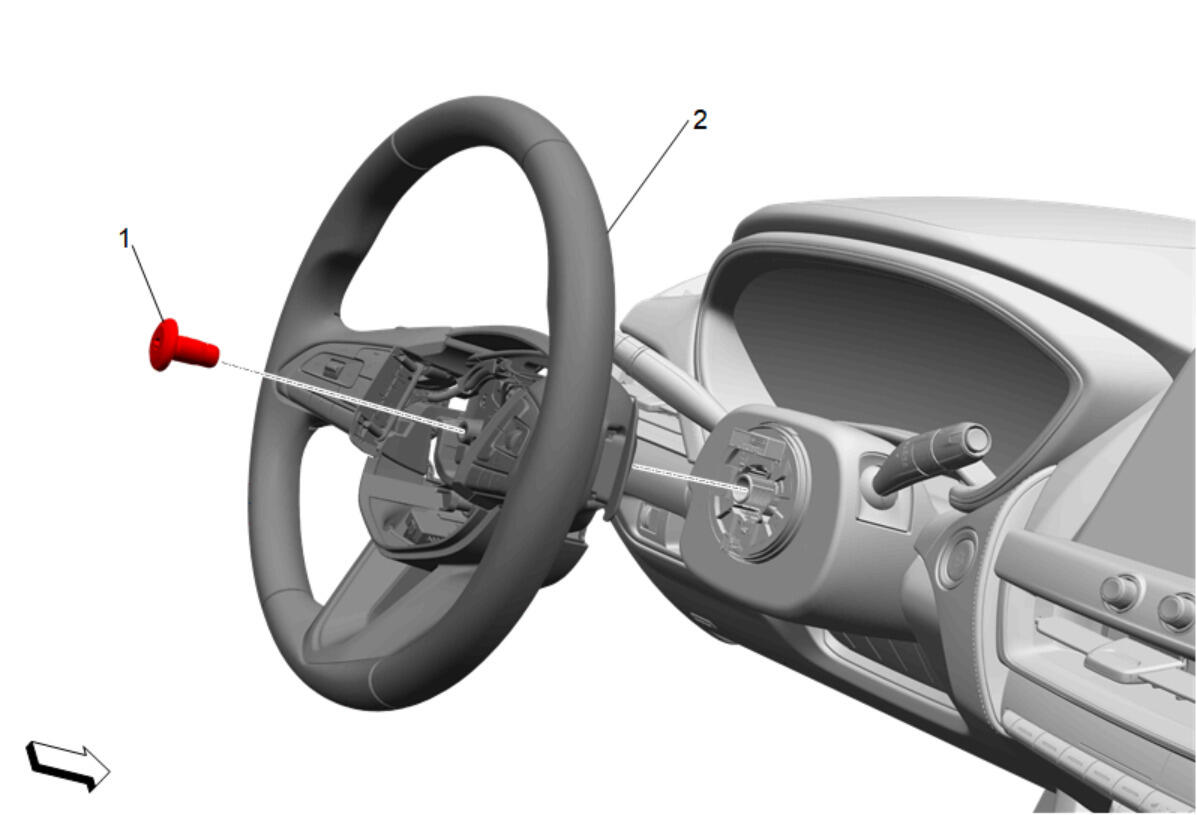

Install the heated steering wheel module (1) to the steering wheel shroud (2).
Courtesy of GENERAL MOTORS COMPANY

Steering Wheel Shroud (1) - Install - Steering Wheel Shroud Replacement
Courtesy of GENERAL MOTORS COMPANY

Steering Wheel (2) - Install - Steering Wheel Replacement
Steering Wheel Airbag - Install - Steering Wheel Airbag Replacement
Courtesy of GENERAL MOTORS COMPANY

Install the 2 steering wheel airbag access hole covers (1). Steering Wheel Airbag Access Hole Cover Replacement
