Installation Procedure

WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

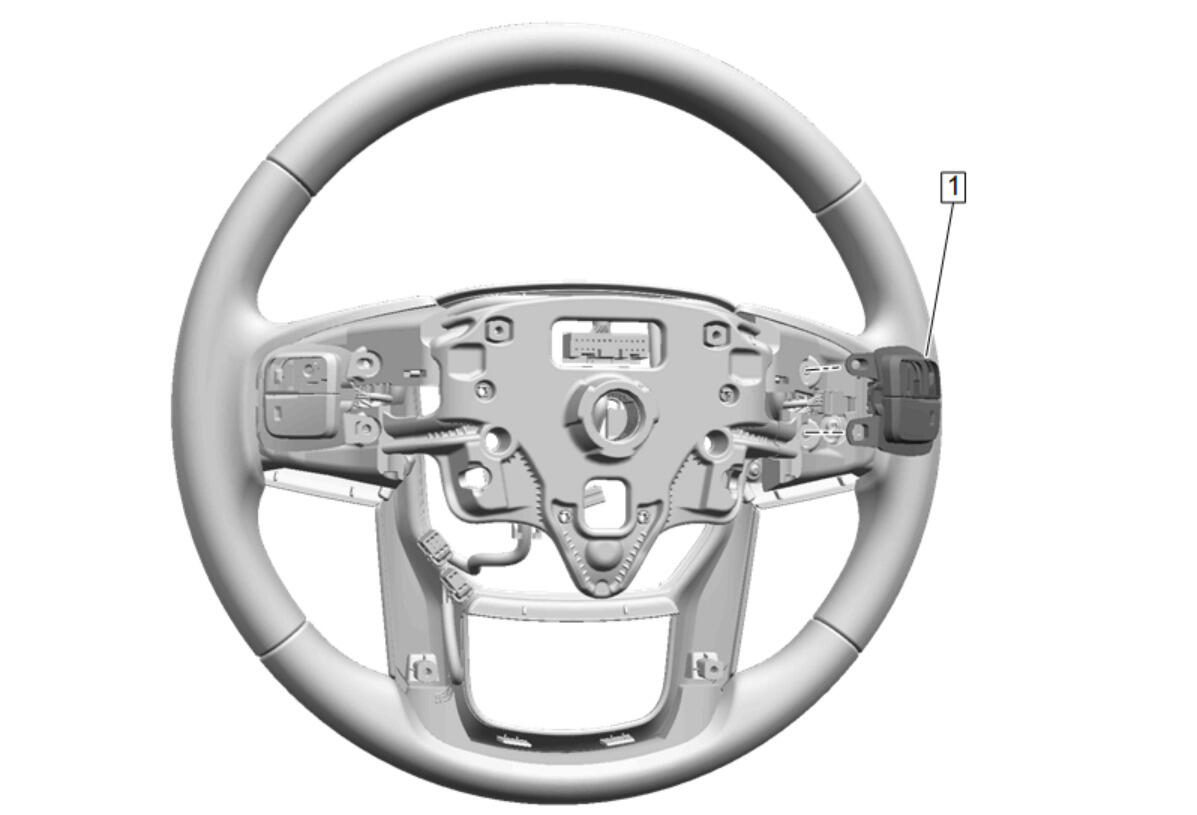

Cruise Control Switch (1) - Install
Courtesy of GENERAL MOTORS COMPANY

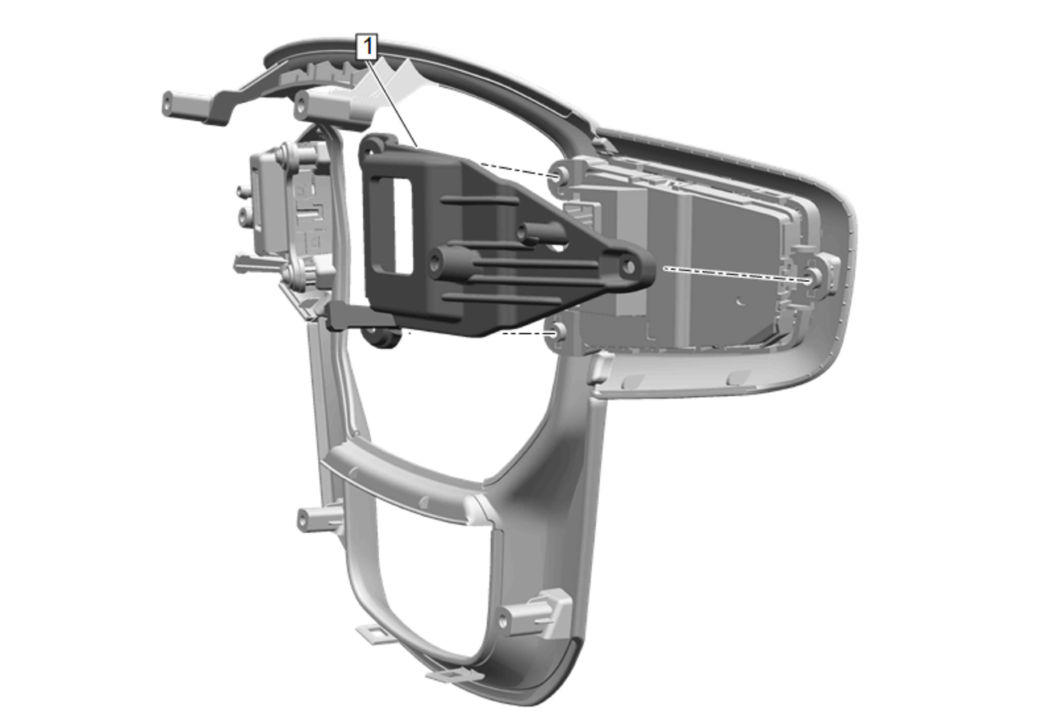

Install the cruise control release switch bracket (1).
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

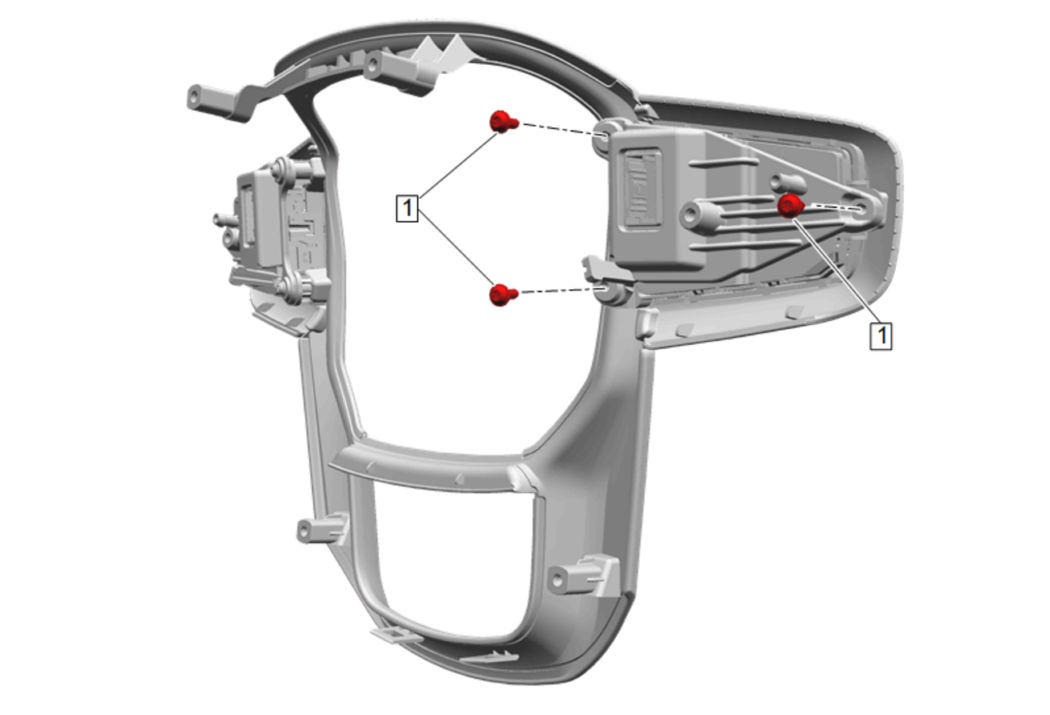

Install the 3 steering wheel spoke cover switch screws (1) and tighten to 1.1 N.m (10 lb in).
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

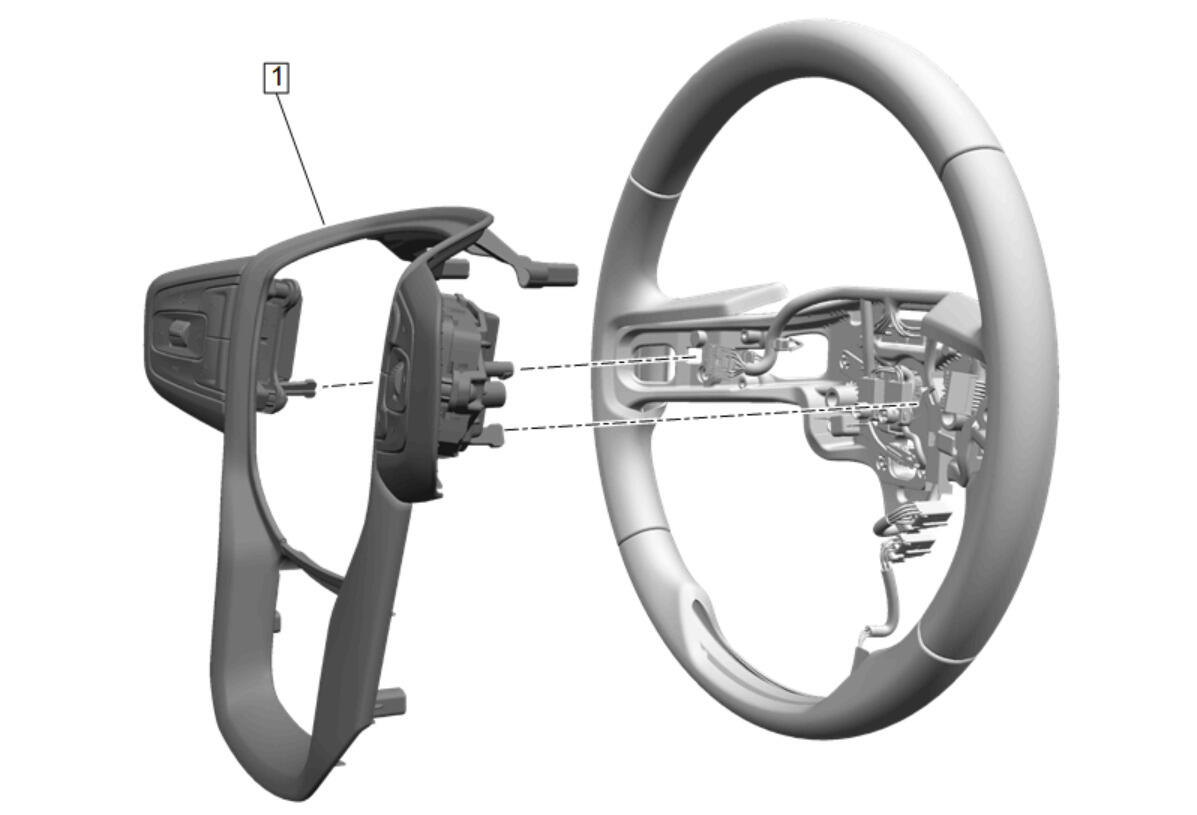

Steering Wheel Spoke Cover (1) - Install - Steering Wheel Spoke Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

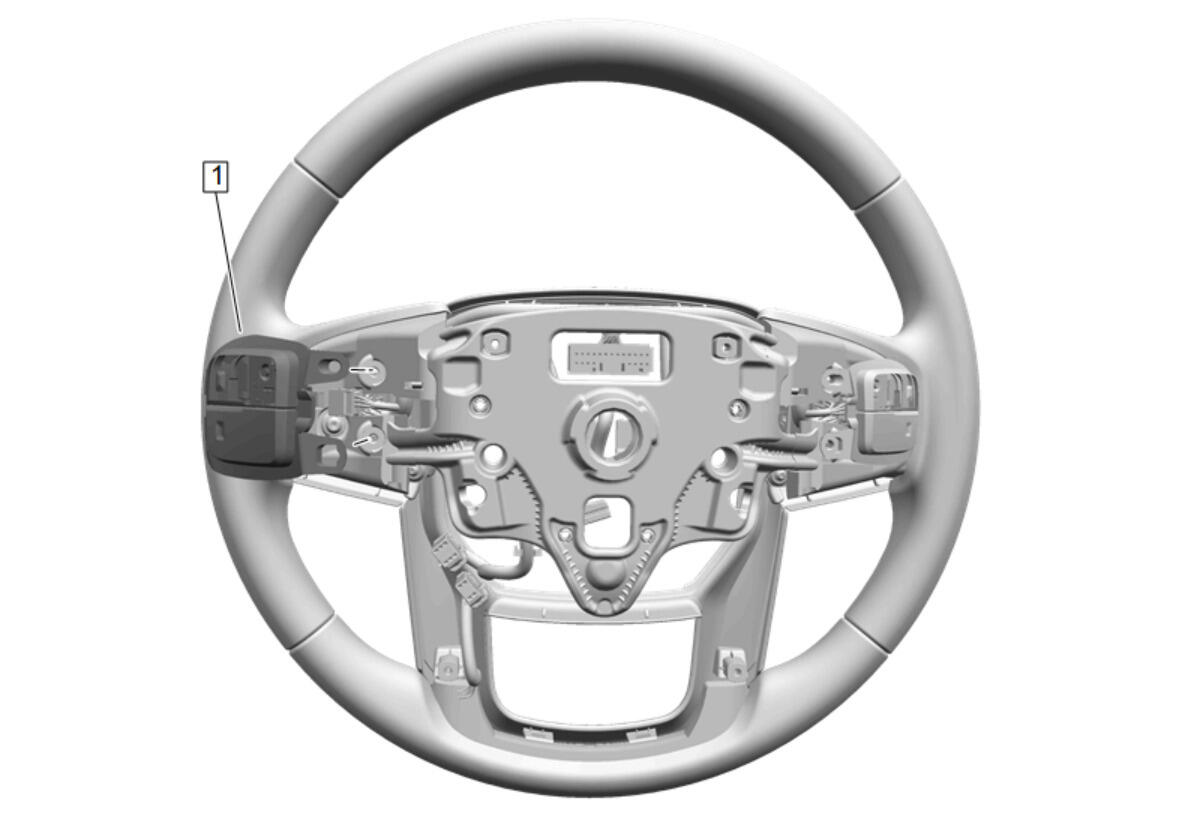

Install the radio volume switch (1). Radio Volume Switch Replacement
Courtesy of GENERAL MOTORS COMPANY

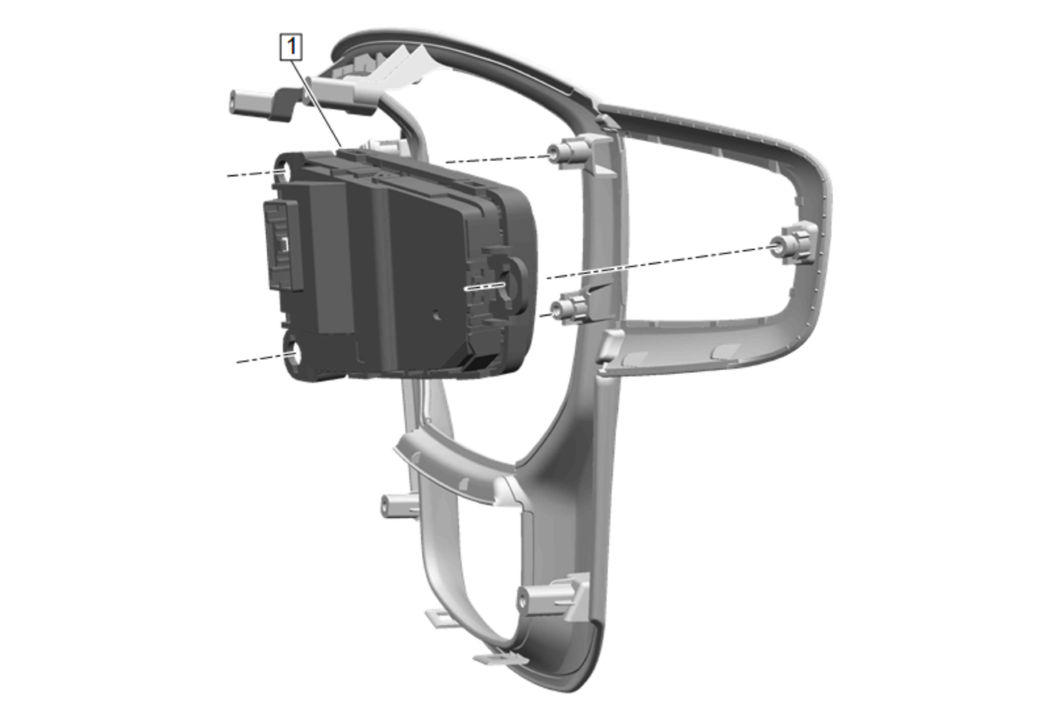

Install the radio favorites switch (1). Radio Favorites Switch Replacement
Courtesy of GENERAL MOTORS COMPANY

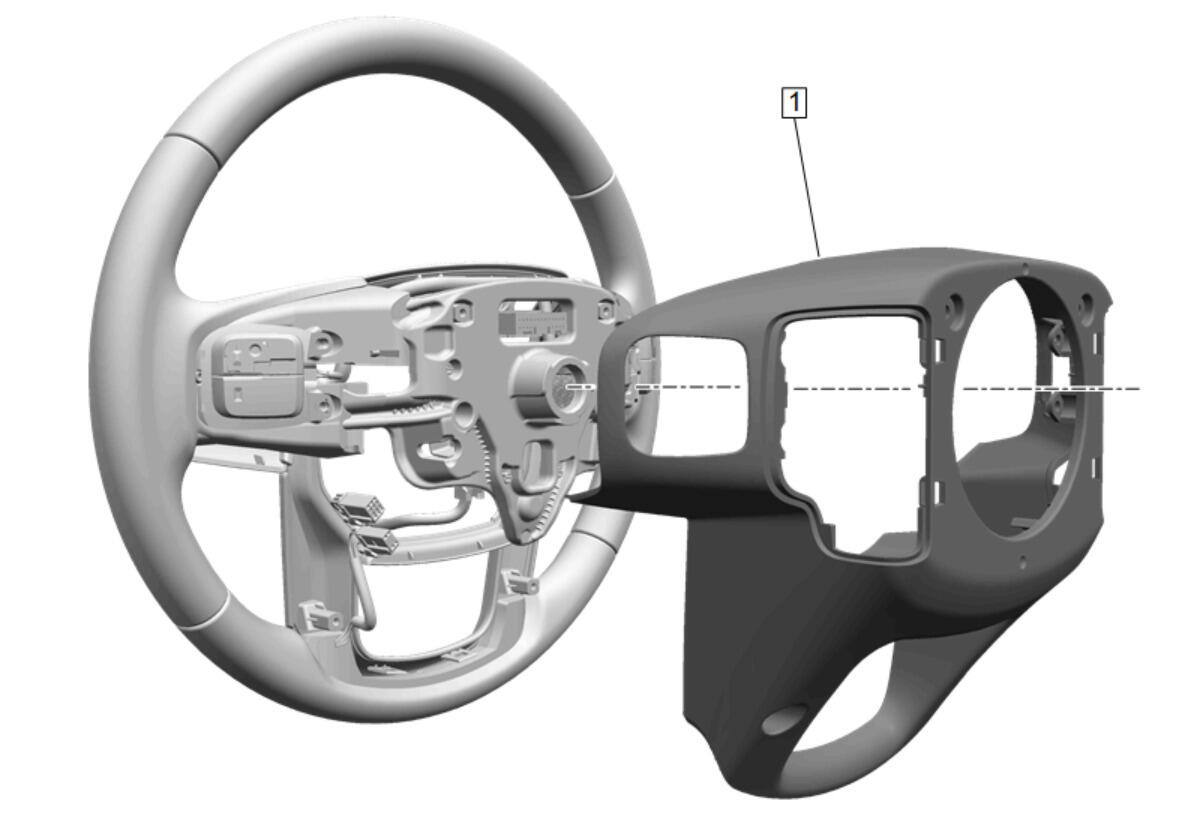

Steering Wheel Shroud (1) - Install - Steering Wheel Shroud Replacement
