Active Safety Control Module Bracket Replacement

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

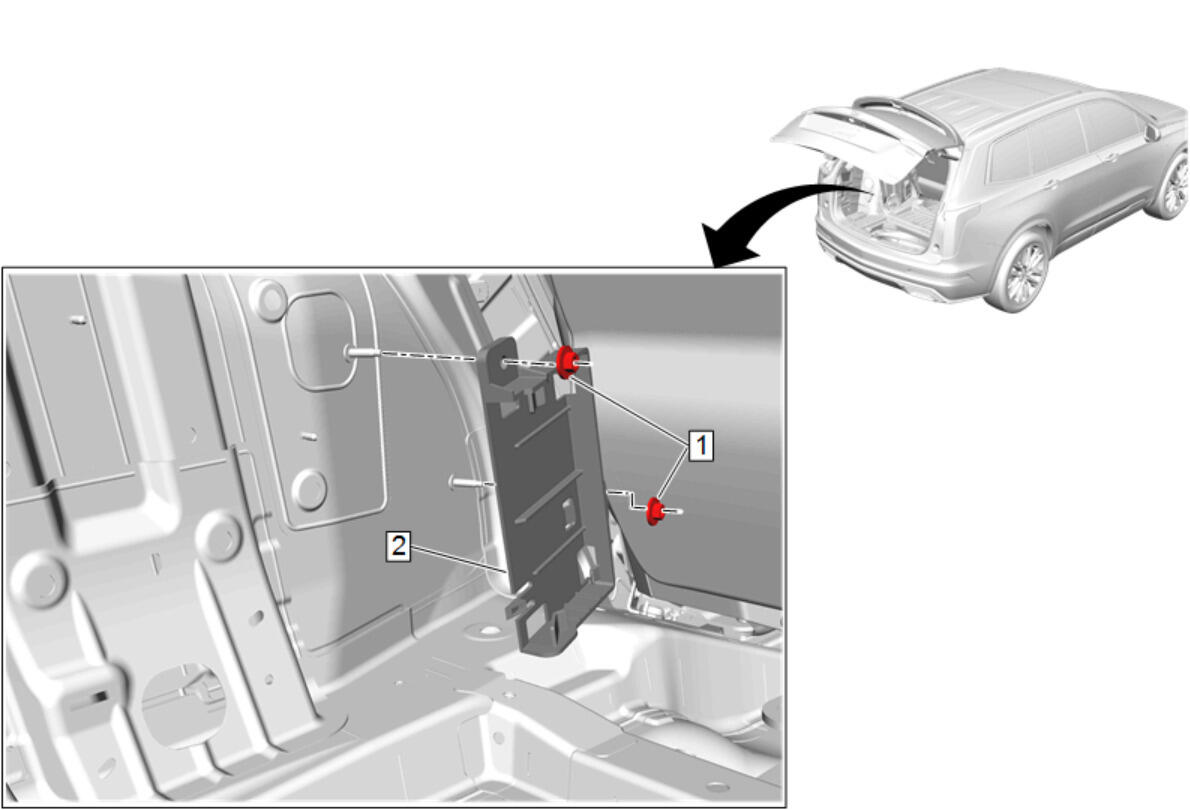

Callout	Component Name
Preliminary Procedure Image Processing Module Replacement
1	Active Safety Control Module Bracket Nut [ 2x ] CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Active Safety Control Module Bracket Procedure Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Image Processing Module Replacement

Active Safety Control Module Bracket Nut [ 2x ]

CAUTION:

Fastener Caution

Tighten
9 N.m (80 lb in)

Active Safety Control Module Bracket

Procedure

Disconnect the electrical connectors.
Transfer components as necessary.
