Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
Connect the electrical connector.

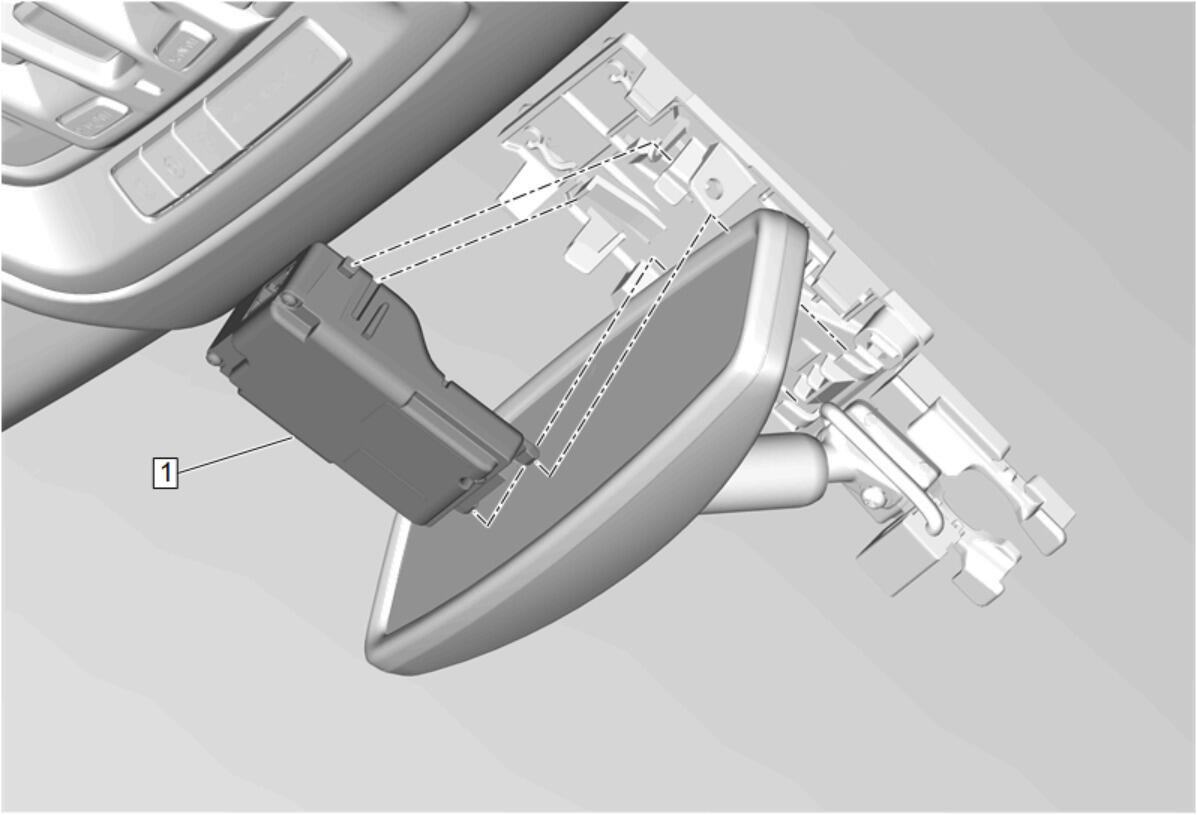

- Front View Camera (1) - Install
- Secure the retaining tabs.

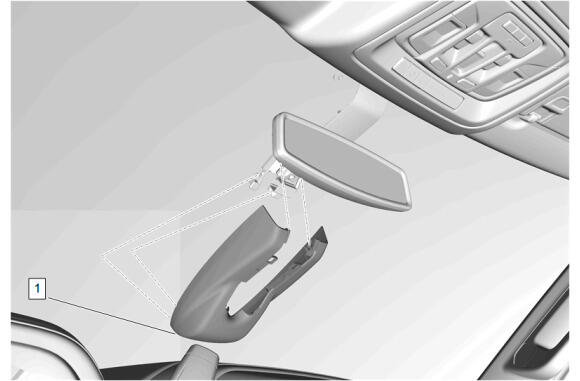

Install the windshield multifunction sensor mount bracket cover (1) ensuring the retaining tabs are fully seated.
Windshield Multifunction Sensor Mount Bracket Cover Insert (1) - Install
- Apply pressure upward on the windshield multifunction sensor mount bracket cover insert (1) to engage the retaining tabs.
- Perform the necessary programming and setup procedure: Control Module References
