Fastener Specifications
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts in the following chart represent components shown in graphic above.

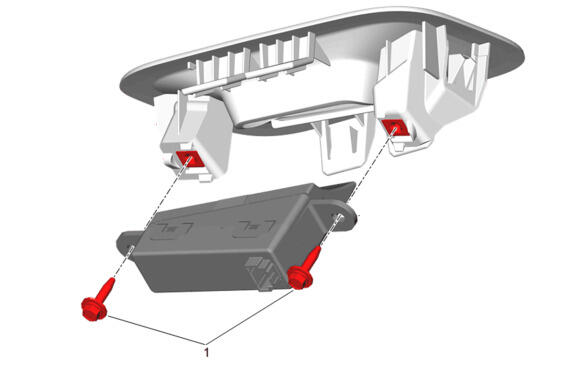

Forward Collision Alert Display
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Forward Collision Alert Display Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Forward Collision Alert Display Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Side Object Sensing Alert Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Side Object Sensing Alert Module Bolt | - | - | 2.5 N.m (22 lb in) | Side Obstacle Detection Control Module Replacement |
