Installation Procedure

WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

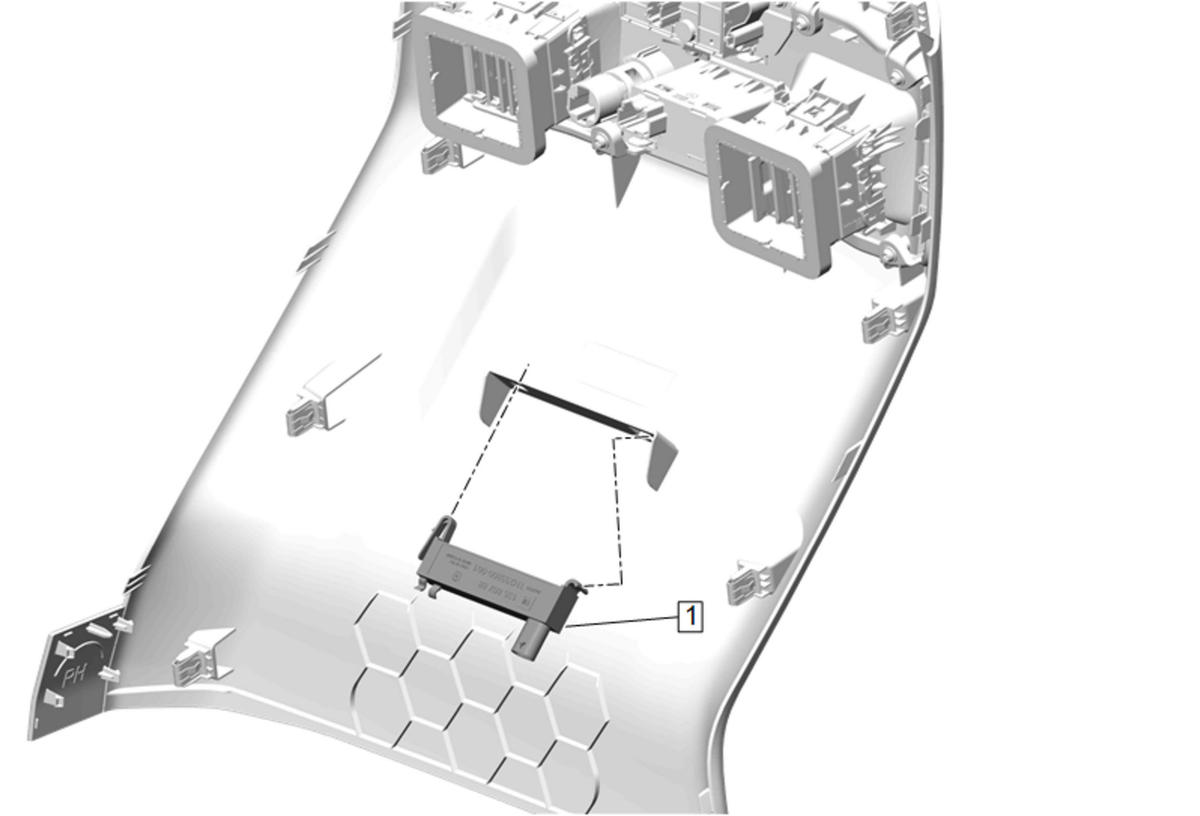

  1. GM5035287Courtesy of GENERAL MOTORS COMPANY

    Low Frequency Console Antenna (1) - Install

  2. Secure the retaining tab.

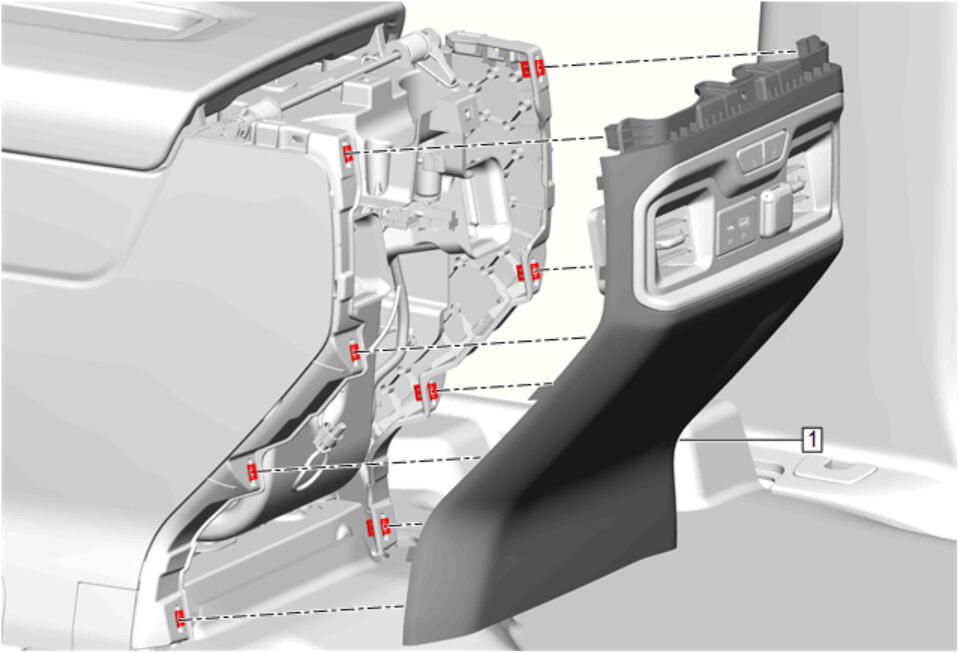

  3. GM5034960Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  4. Front Floor Console Rear Trim Panel (1) - Install

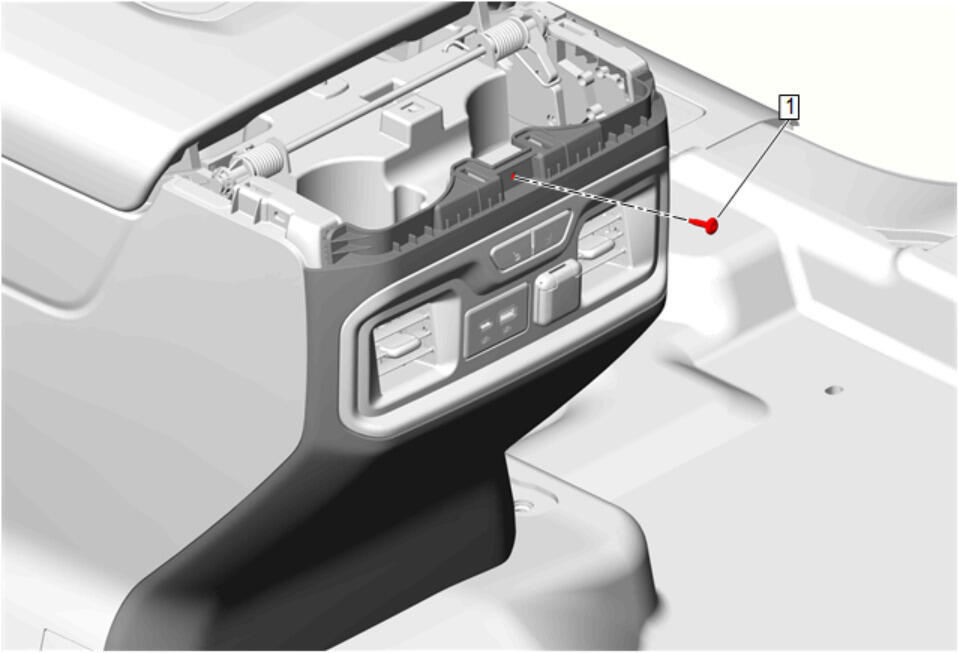

  5. GM5034959Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Front Floor Console Rear Cover Bolt (1) - Install and tighten - Fastener Specifications

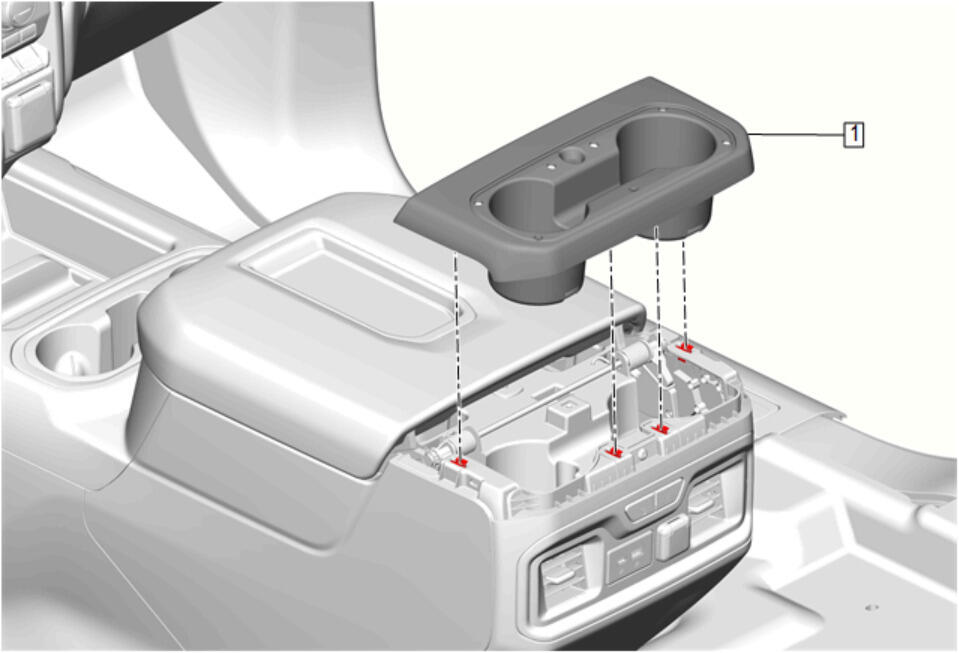

  6. GM5034877Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Cup Holder (1) - Install

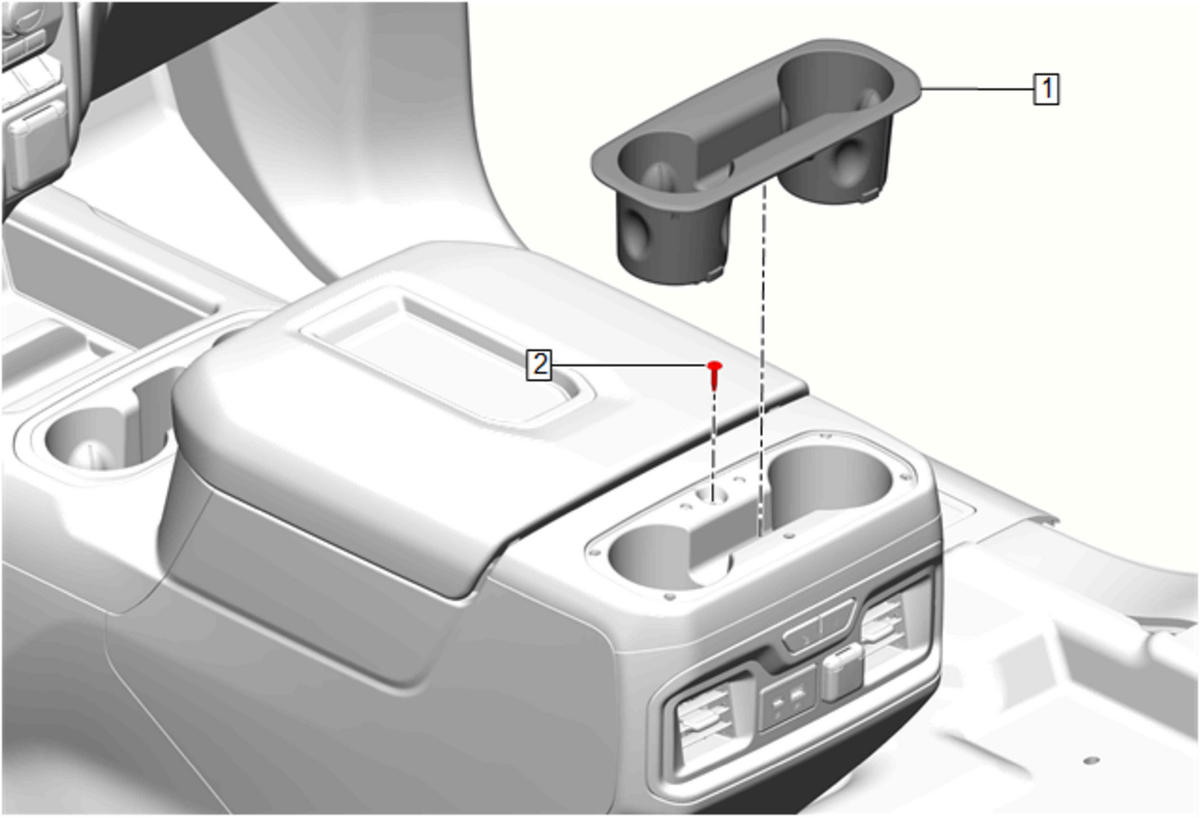

  7. GM5034876Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Cup Holder Bolt (2) - Install and tighten - Fastener Specifications

  8. Front Floor Console Rear Cup Holder Liner (1) - Install
