Fastener Specifications
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts in the following chart represent components shown in graphic above.

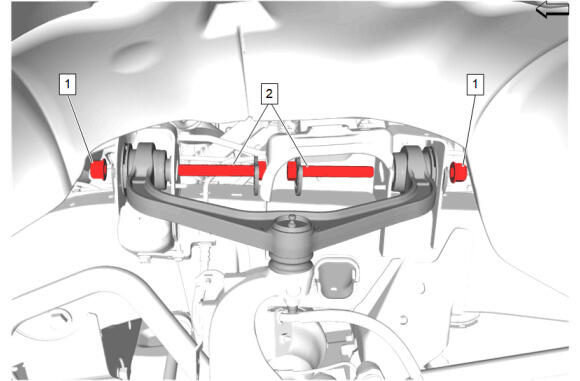

Front Caster and Camber Adjustment
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Upper Control Arm Nut | - | - | 260 N.m (192 lb ft) | Front Caster and Camber Adjustment |
| 2 | Front Upper Control Arm Bolt | - | - | - | Front Upper Control Arm Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

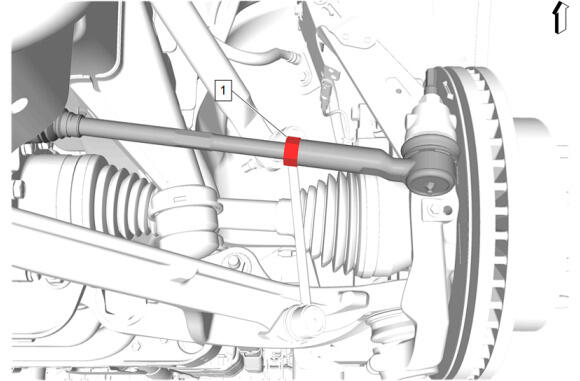

Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Steering Linkage Inner Tie Rod Nut | - | - | 75 N.m (55 lb ft) | Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment |
