Removal Procedure

Place the ignition switch in the OFF position.
Without draining the engine coolant and without disconnecting the hoses, remove and position aside the radiator surge tank. Radiator Surge Tank Replacement (LGX)Radiator Surge Tank Replacement (LSY)
Thoroughly clean the electronic brake control module (EBCM) to brake pressure modulator valve (BPMV) area of any accumulated dirt and debris.

Courtesy of GENERAL MOTORS COMPANY

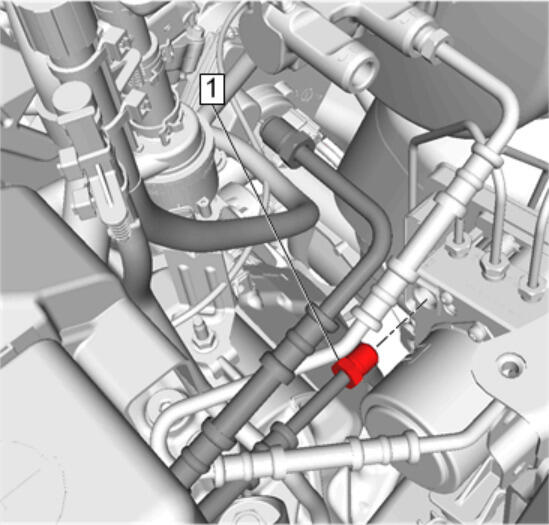

Brake Pressure Modulator Valve Master Cylinder Reservoir Front Pipe - Remove - Brake Pressure Modulator Valve Master Cylinder Reservoir Front Pipe Replacement

Courtesy of GENERAL MOTORS COMPANY

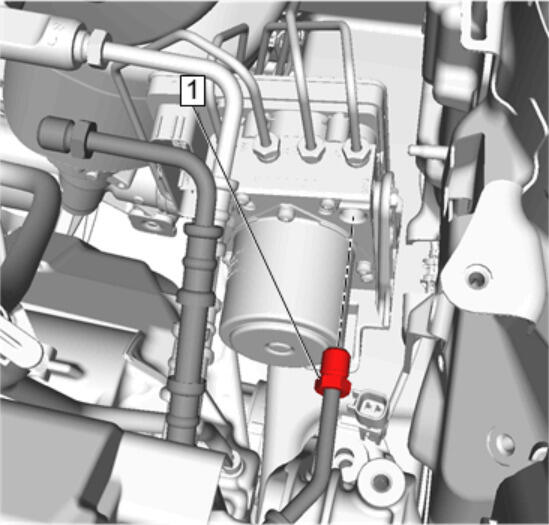

Brake Pressure Modulator Valve Master Cylinder Reservoir Rear Pipe - Remove - Brake Pressure Modulator Valve Master Cylinder Reservoir Rear Pipe Replacement
Disconnect the EBCM electrical connector.
NOTE:
Label all the brake pipes to ensure they are re-installed in the correct ports of the brake pressure modulator valve.

Courtesy of GENERAL MOTORS COMPANY
Left Front Brake Pipe Fitting (1) - Disconnect
Cap the brake pipe fitting and plug the BPMV outlet port to prevent brake fluid loss and contamination.

Courtesy of GENERAL MOTORS COMPANY
Right Front Brake Pipe Fitting (1) - Disconnect
Cap the brake pipe fitting and plug the BPMV outlet port to prevent brake fluid loss and contamination.

Courtesy of GENERAL MOTORS COMPANY
Right Rear Brake Pipe Fitting (1) - Disconnect
Cap the brake pipe fitting and plug the BPMV outlet port to prevent brake fluid loss and contamination.

Courtesy of GENERAL MOTORS COMPANY
Left Rear Brake Pipe Fitting (1) - Disconnect
Cap the brake pipe fitting and plug the BPMV outlet port to prevent brake fluid loss and contamination.

Courtesy of GENERAL MOTORS COMPANY
Brake Pressure Modulator Valve Bracket Bolt (1) - Remove

Courtesy of GENERAL MOTORS COMPANY
Electronic Brake Control Module with Brake Pressure Modulator Valve Assembly (1) - Remove
Transfer components as necessary.
