Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Inside Handle Cable (1) - Install
Courtesy of GENERAL MOTORS COMPANY

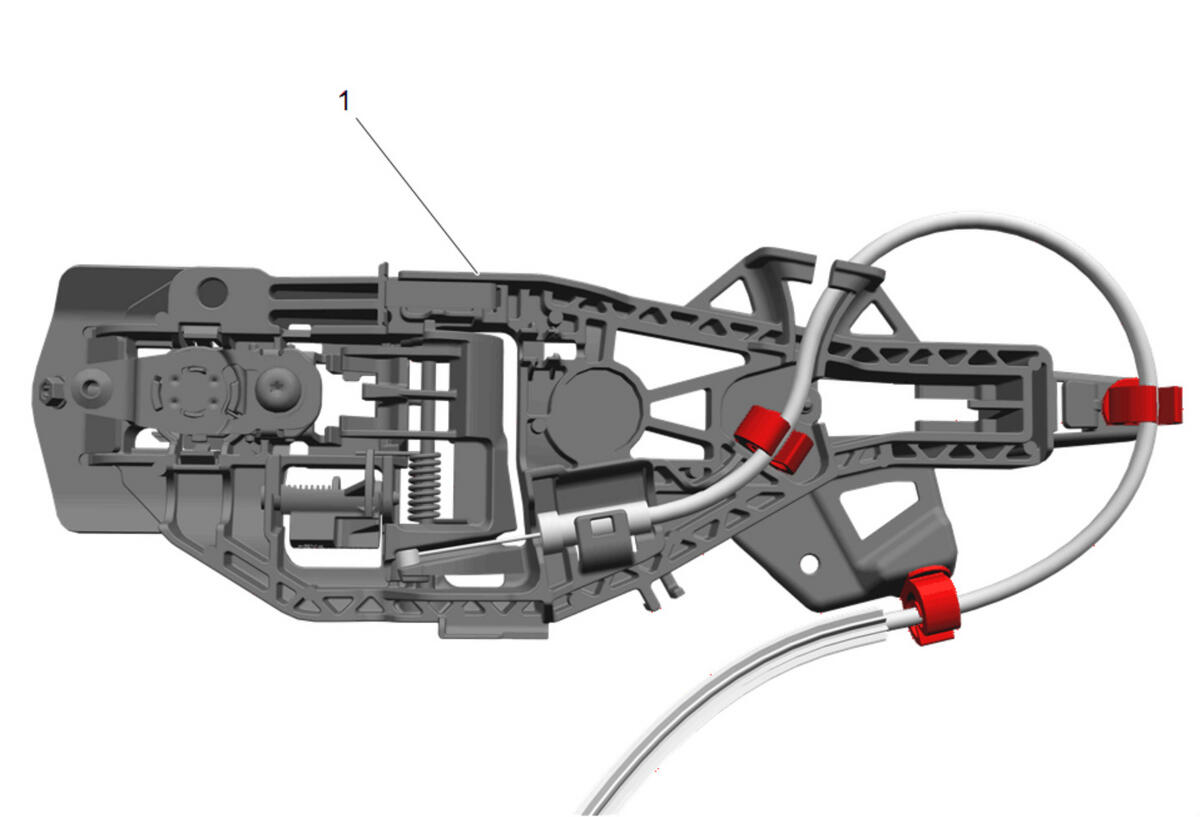

Front Side Door Outside Handle Cable (1) - Install - Front Side Door Outside Handle Cable Replacement
Transfer components as necessary.
Courtesy of GENERAL MOTORS COMPANY

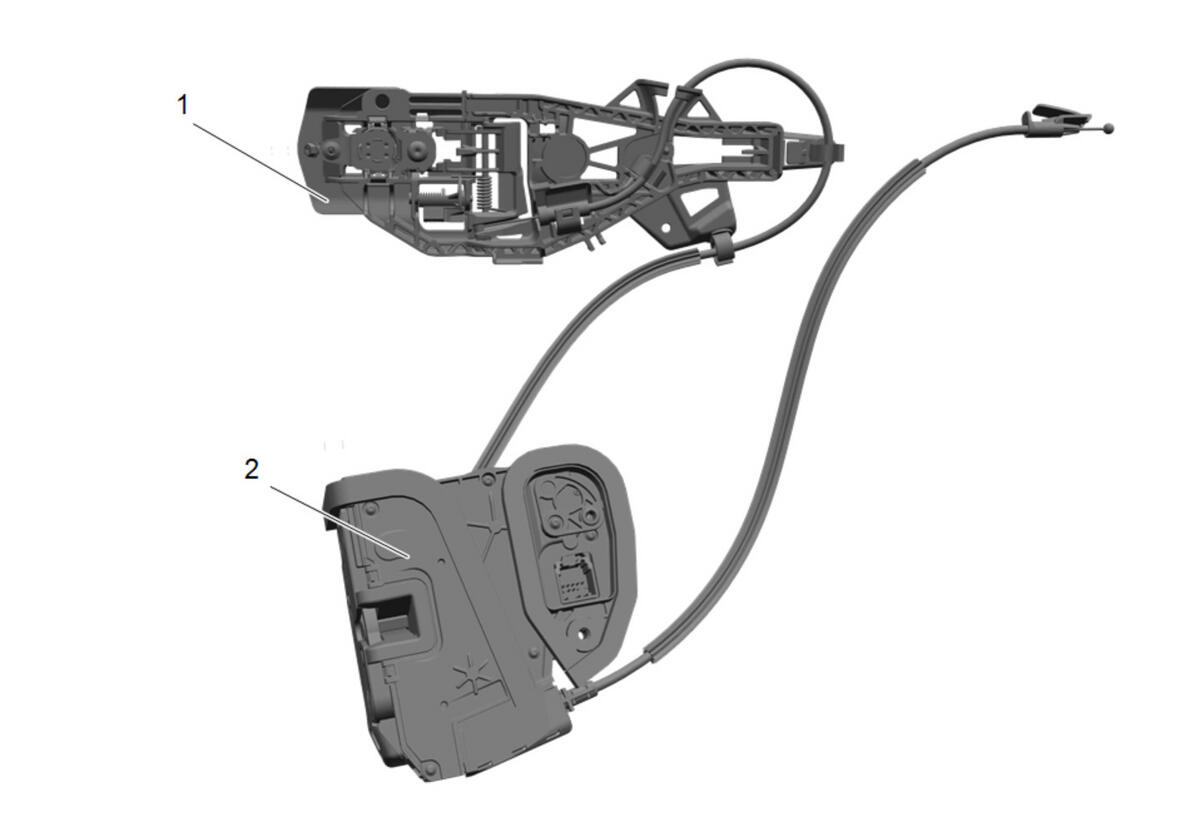

Install both the front side door outside handle bracket (1) and the front side door latch (2).
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

NOTE:
Install and torque the four latch bolts in proper sequence to prevent damage to the latch mechanism.

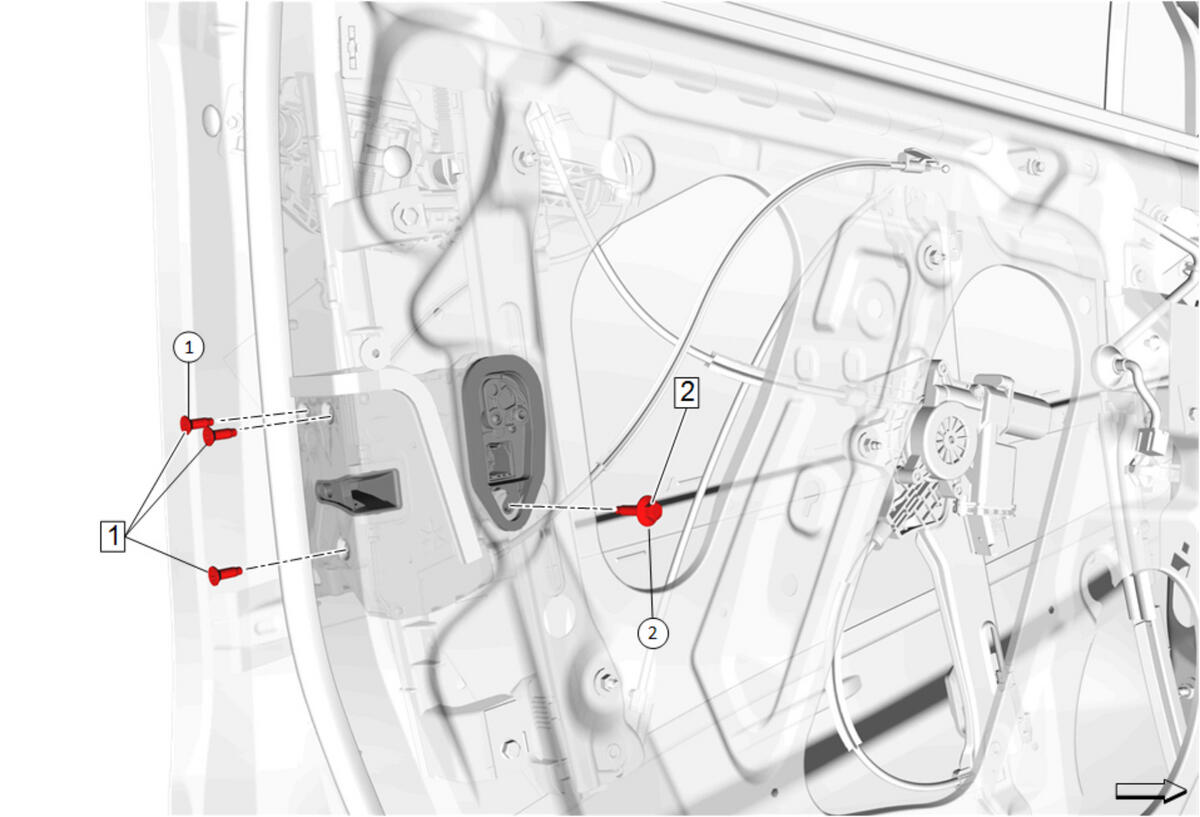

Front Side Door Latch Bolt (1) - Install and tighten [ 3x ] 9 N.m (80 lb in)
Front Side Door Latch Screw (2) - Install and tighten 11 N.m (97 lb in)
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Outside Handle Bracket (1) - Install - Front Side Door Outside Handle Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY

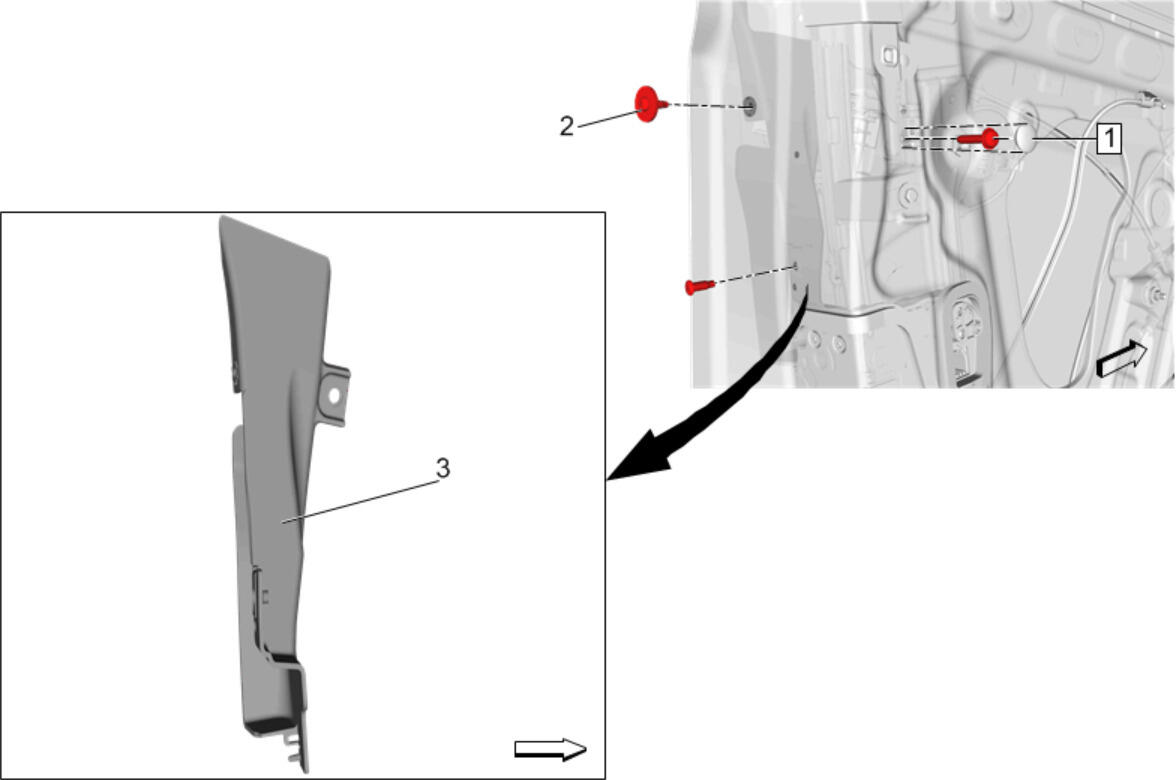

{ If equipped }Front Side Door Lock Cover (3) - Install - Front Side Door Lock Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

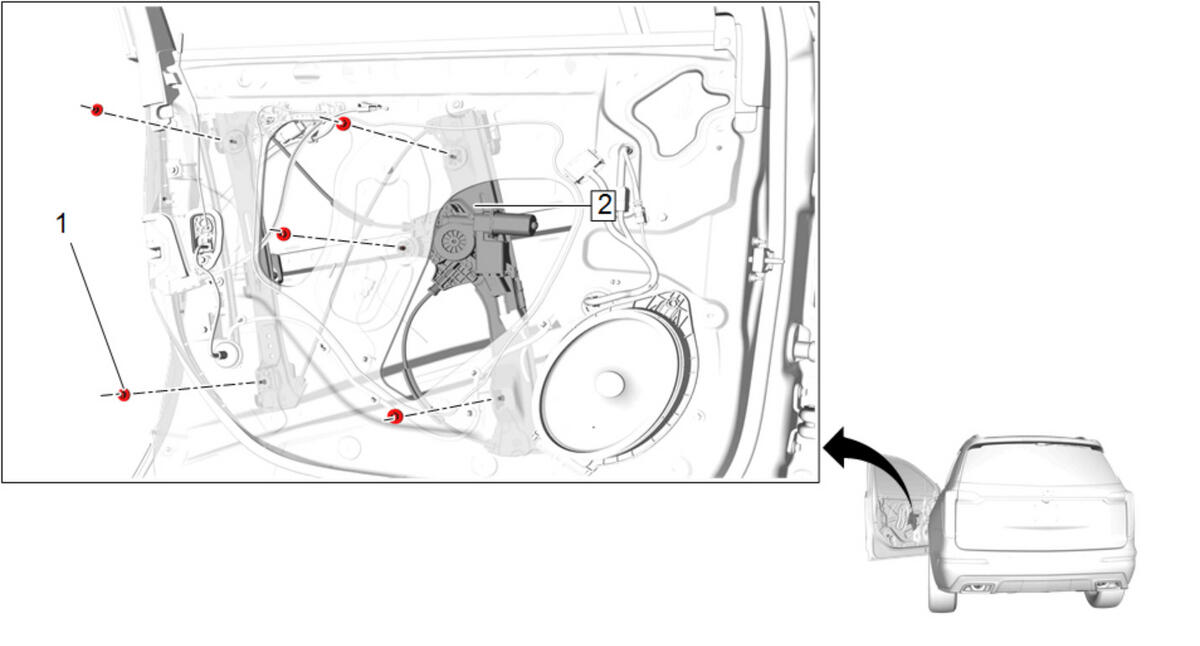

Front Side Door Window Regulator (2) - Install - Front Side Door Window Regulator Replacement
Connect the electrical connector.
Inspect the door latch and outside handle for proper operation before installing the door trim.
