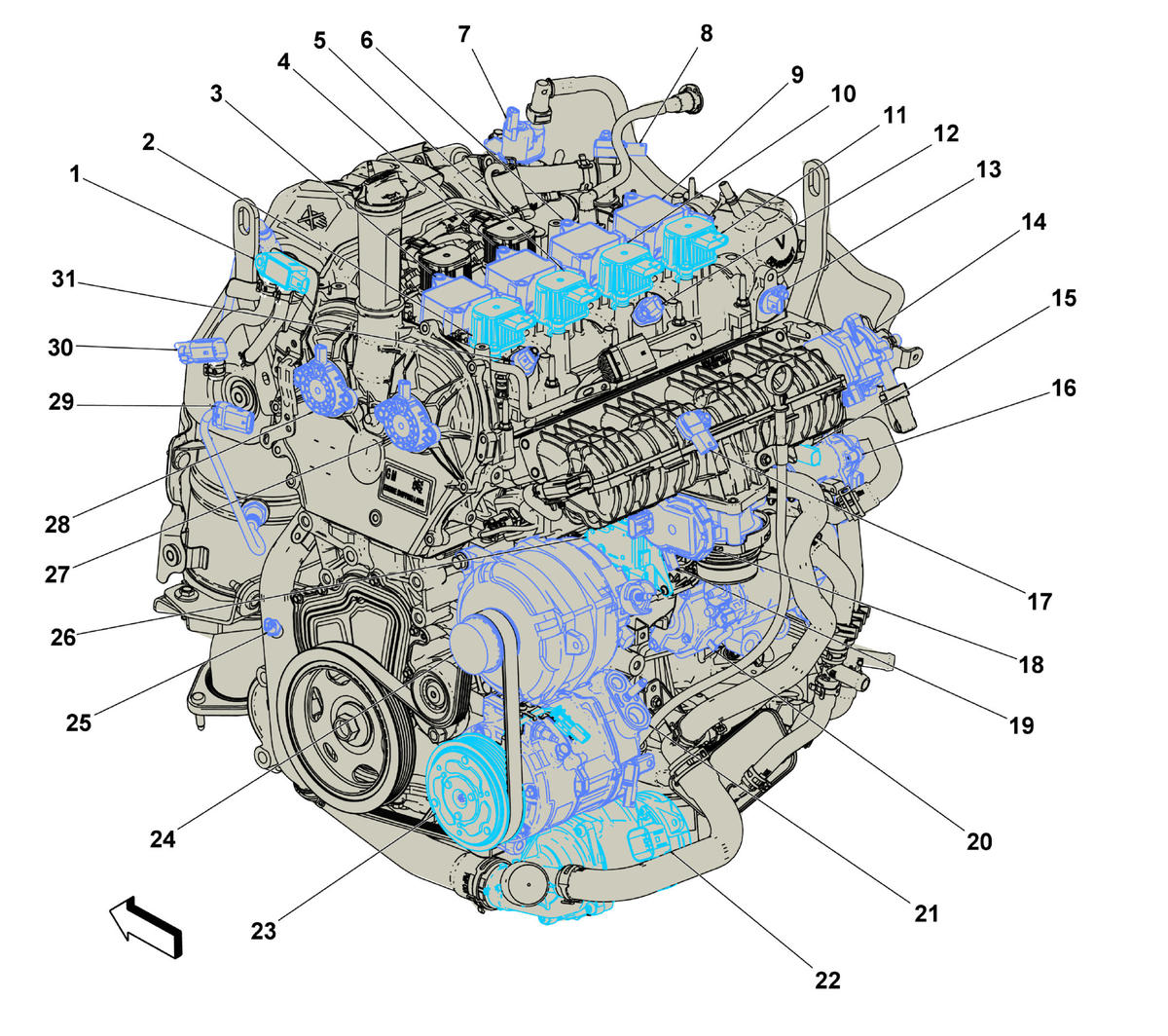

| 1. B345P Exhaust Pressure Differential Sensor - Particulate Filter |
| 2. M129A Intake Camshaft Profile Actuator 1 M129A Intake Camshaft Profile Actuator 1 (LSY) |
| 3. T8A Ignition Coil 1 T8A Ignition Coil 1 (LGX)
, or T8A Ignition Coil 1 (LSY) |
| 4. T8B Ignition Coil 2 T8B Ignition Coil 2 (LGX)
, or T8B Ignition Coil 2 (LSY) |
| 5. M129B Intake Camshaft Profile Actuator 2 M129B Intake Camshaft Profile Actuator 2 (LSY) |
| 6. T8C Ignition Coil 3 T8C Ignition Coil 3 (LGX)
, or T8C Ignition Coil 3 (LSY) |
| 7. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (LGX)
, or Q12 Evaporative Emission Purge Solenoid Valve (LSY) |
| 8. Q13 Evaporative Emission Vent Solenoid Valve Q13 Evaporative Emission Vent Solenoid Valve (LSY) |
| 9. T8D Ignition Coil 4 T8D Ignition Coil 4 (LGX)
, or T8D Ignition Coil 4 (LSY) |
| 10. M129C Intake Camshaft Profile Actuator 3 M129C Intake Camshaft Profile Actuator 3 (LSY) |
| 11. M129D Intake Camshaft Profile Actuator 4 M129D Intake Camshaft Profile Actuator 4 (LSY) |
| 12. B345P Exhaust Pressure Differential Sensor - Particulate Filter |
| 13. B23F Camshaft Position Sensor - Intake (LGX) B23F Camshaft Position Sensor - Intake (LSY) |
| 14. G58 Evaporative Emission Purge Pump G58 Evaporative Emission Purge Pump |
| 15. B68B Knock Sensor 2 B68B Knock Sensor 2 (LGX)
, or B68B Knock Sensor 2 (LSY) |
| 16. Q74 Engine Coolant Bypass Valve Q74 Engine Coolant Bypass Valve |
| 17. B65 Intake Manifold Pressure and Air Temperature Sensor B65 Intake Manifold Pressure and Air Temperature Sensor |
| 18. Q38 Throttle Body Q38 Throttle Body |
| 19. B34D Engine Coolant Temperature Sensor 4 (LSY) B34D Engine Coolant Temperature Sensor 4 (LSY) |
| 20. M64 Starter Motor M64 Starter Motor X1 (LGX)
, or M64 Starter Motor X1 (LSY)
, or M64 Starter Motor X2 |
| 21. Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve (LGX)
, or Q46 A/C Compressor Solenoid Valve (LSY) |
| 22. G59 Engine Coolant Pump G59 Engine Coolant Pump |
| 23. Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch (LGX)
, or Q2 A/C Compressor Clutch (LSY) |
| 24. G13 Generator G13 Generator X1
, or G13 Generator X2 |
| 25. B34A Engine Coolant Temperature Sensor 1 B34A Engine Coolant Temperature Sensor 1 |
| 26. Q97 Engine Coolant Flow Control Valve (LSY) Q97 Engine Coolant Flow Control Valve |
| 27. Q6F Camshaft Position Actuator Solenoid Valve - Intake (LSY) Q6F Camshaft Position Actuator Solenoid Valve - Intake |
| 28. Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LSY) Q6E Camshaft Position Actuator Solenoid Valve - Exhaust |
| 29. B52A Heated Oxygen Sensor 1 (LGX) B52A Heated Oxygen Sensor 1 |
| 30. B52B Heated Oxygen Sensor 2 (LGX) B52B Heated Oxygen Sensor 2 |
| 31. B338A Intake Camshaft Profile Sleeve Position Sensor 1 B338A Intake Camshaft Profile Sleeve Position Sensor 1 (LSY) |
