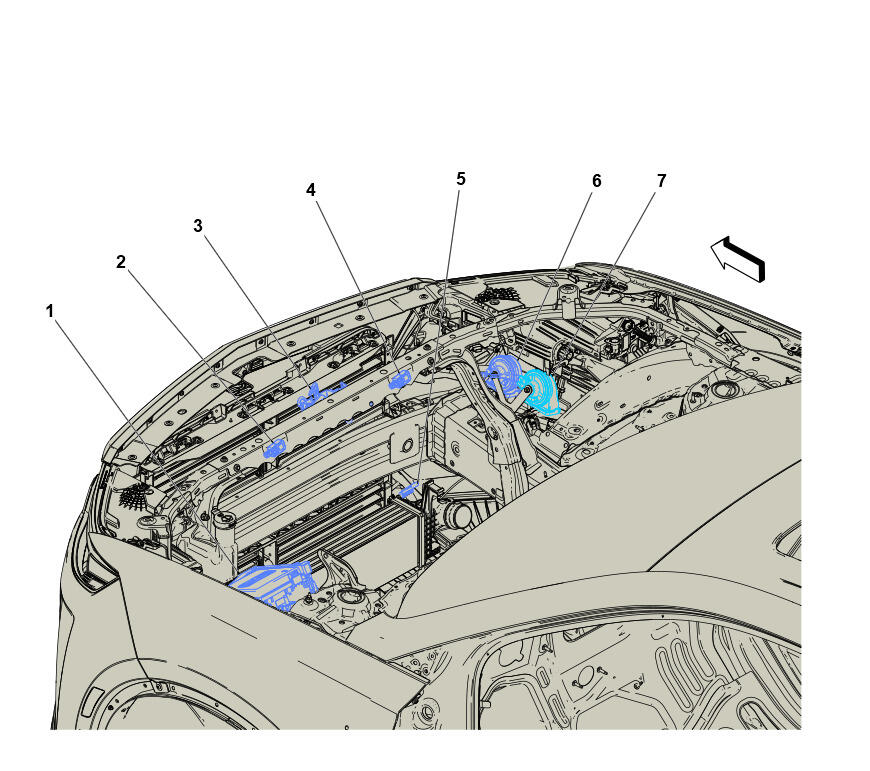

Left Side of Engine Compartment Components

GM5233461Courtesy of GENERAL MOTORS COMPANY
Items
  1. X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1 , or X50A Fuse Block - Underhood X2 , or X50A Fuse Block - Underhood X3 () , or X50A Fuse Block - Underhood X4 (LGX) , or X50A Fuse Block - Underhood X5
  2. B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left
  3. B55 Engine Hood Switch B55 Engine Hood Switch
  4. B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right
  5. B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor (LGX) , or B1 A/C Refrigerant Pressure Sensor (LSY)
  6. P12R Horn - Right P12R Horn - Right
  7. P12L Horn - Left P12L Horn - Left
