Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

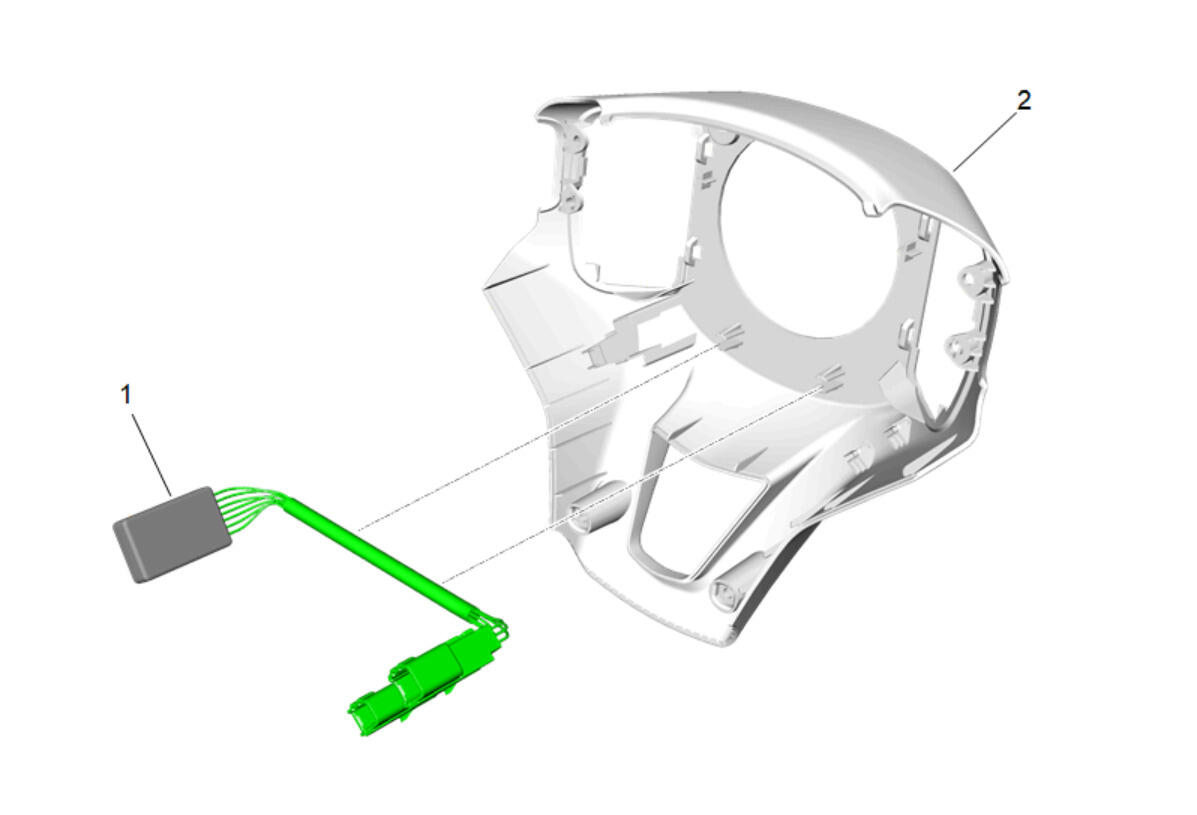

Install the heated steering wheel module (1) to the steering wheel shroud (2).
Courtesy of GENERAL MOTORS COMPANY

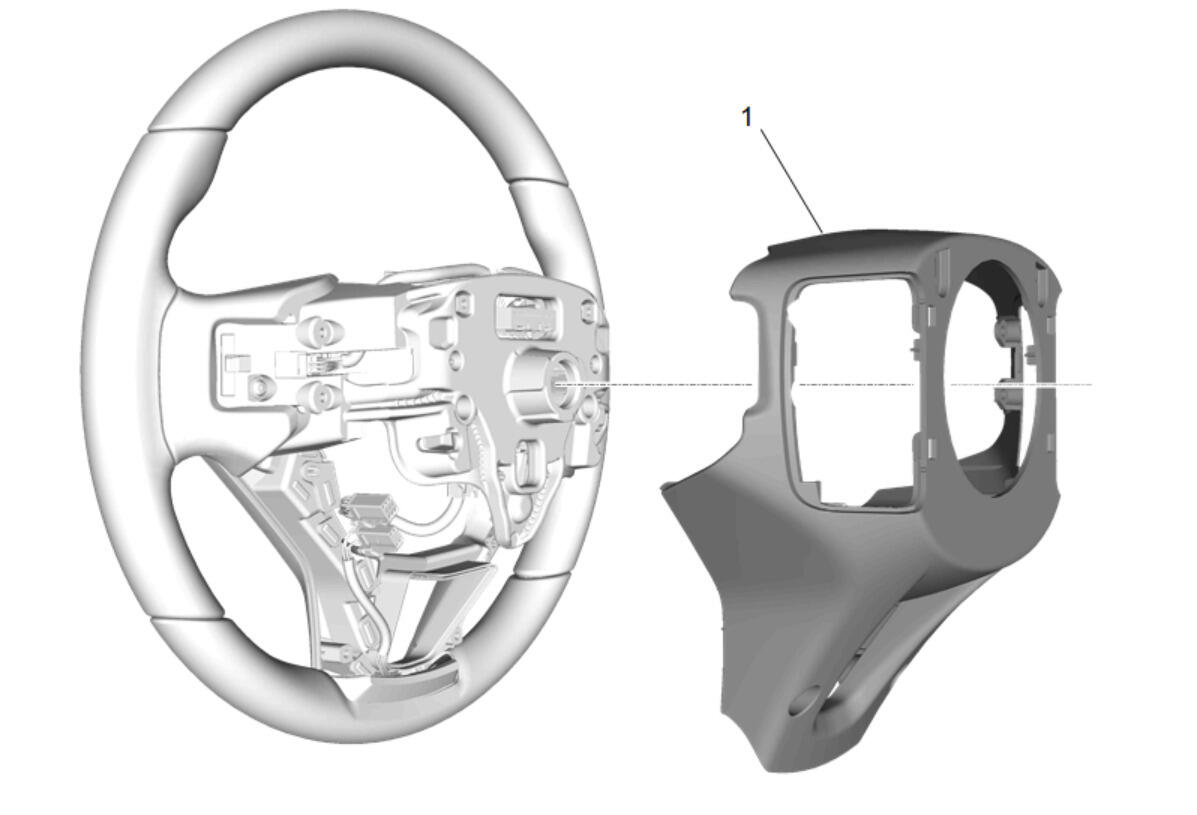

Steering Wheel Shroud(1) - Install - Steering Wheel Shroud Replacement
Courtesy of GENERAL MOTORS COMPANY

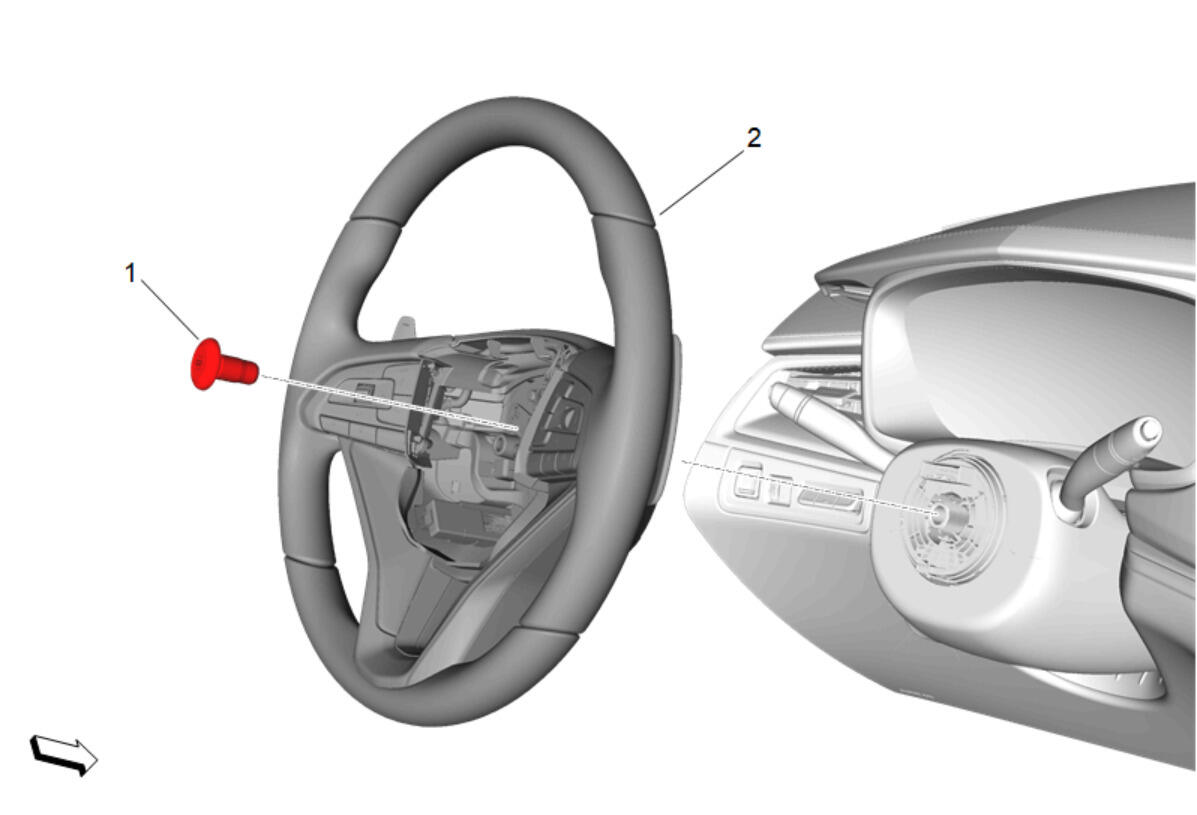

Install the steering wheel.(2) Steering Wheel Replacement
Steering Wheel Airbag - Install - Steering Wheel Airbag Replacement
Courtesy of GENERAL MOTORS COMPANY

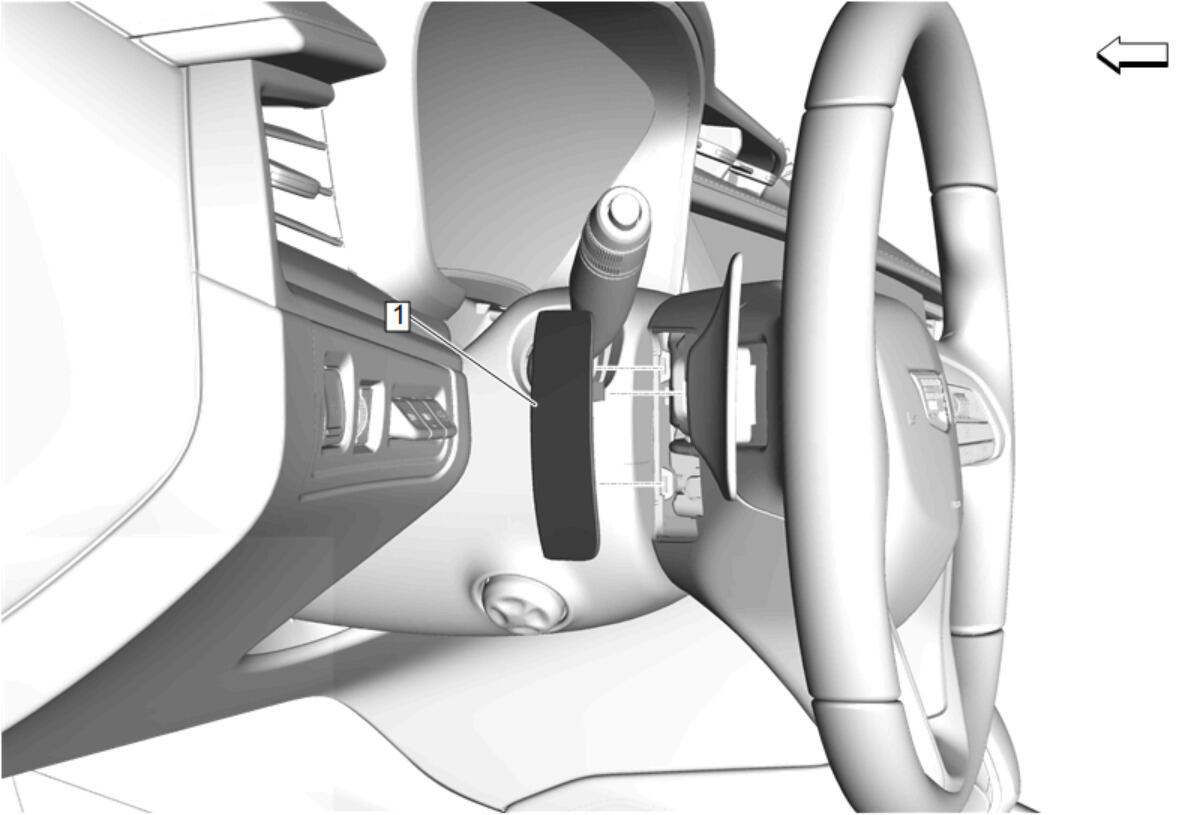

Install the 2 steering wheel airbag access hole covers (1). Steering Wheel Airbag Access Hole Cover Replacement
