Engine Control Module Bracket Replacement

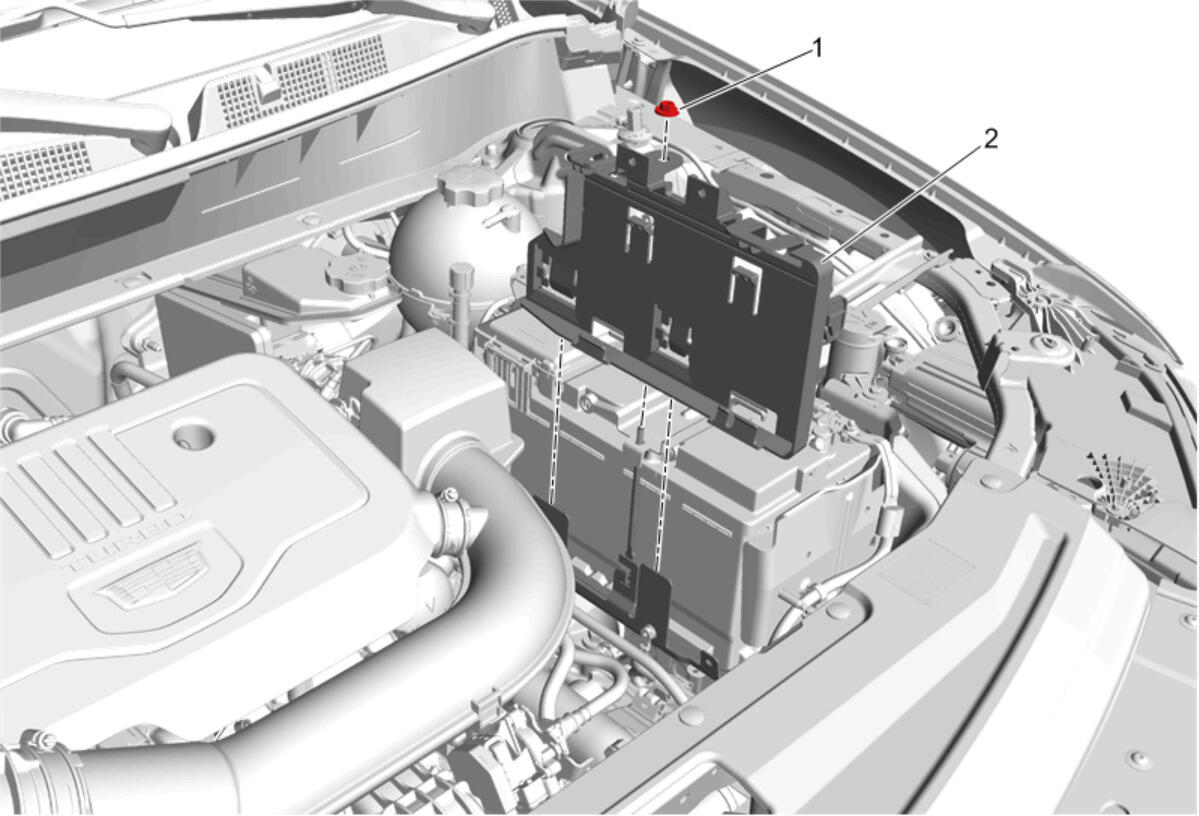

GM5214665

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Engine Coolant Air Bleed Hose @ Engine Control Module Bracket - Reposition away - Engine Coolant Air Bleed Hose Replacement (Water Pump to Water Pump Inlet Pipe) , or Engine Coolant Air Bleed Hose Replacement (Engine Coolant Flow Control Valve to Engine Coolant thermostat Housing Pipe) , or Engine Coolant Air Bleed Hose Replacement (LSY Radiator to Radiator Surge Tank to Engine Coolant Thermostat Housing Pipe)
Engine Control Module Replacement

1

Engine Control Module Bracket Nut

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

2

Engine Control Module Bracket
