Removal Procedure

  1. GM4375342Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat (4) - Remove - 3rd Row Seat Removal and Installation

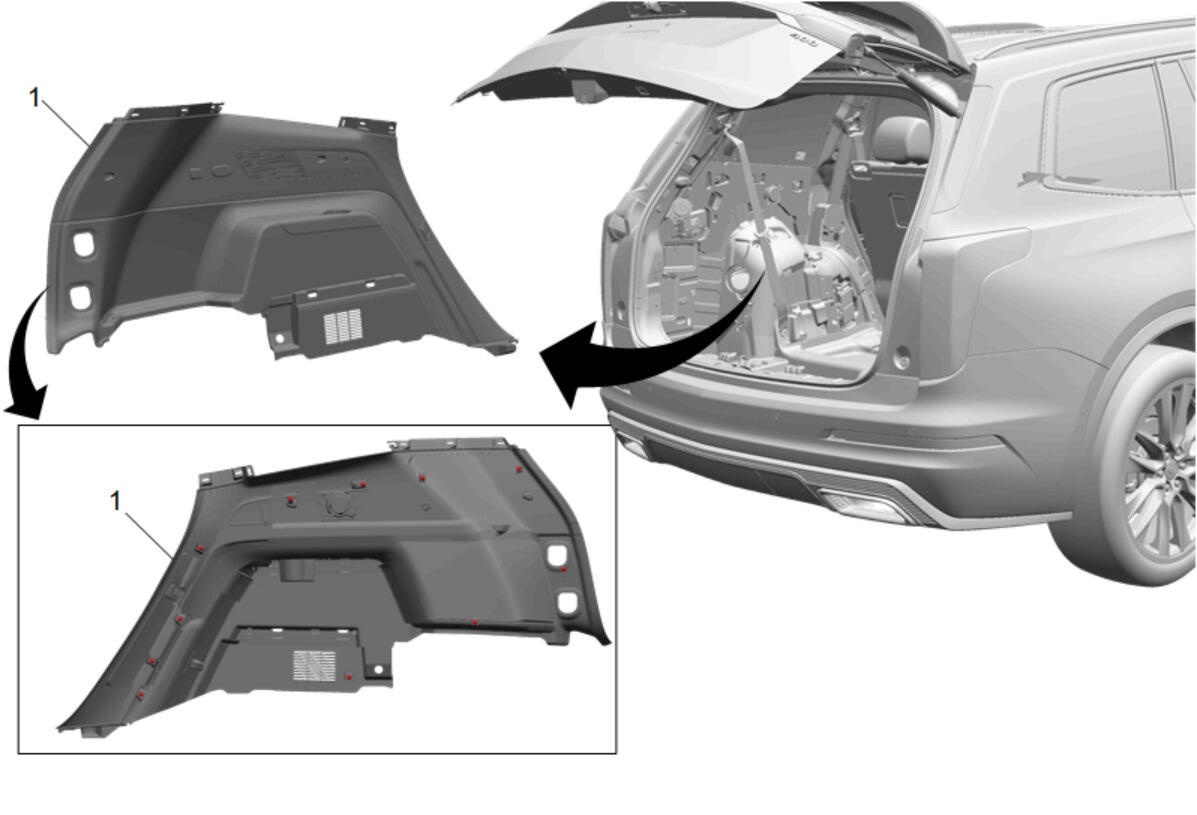

  2. GM5236633Courtesy of GENERAL MOTORS COMPANY

    Quarter Lower Rear Trim Panel - Left Side (1) - Remove -Quarter Lower Rear Trim Panel Replacement - Left Side

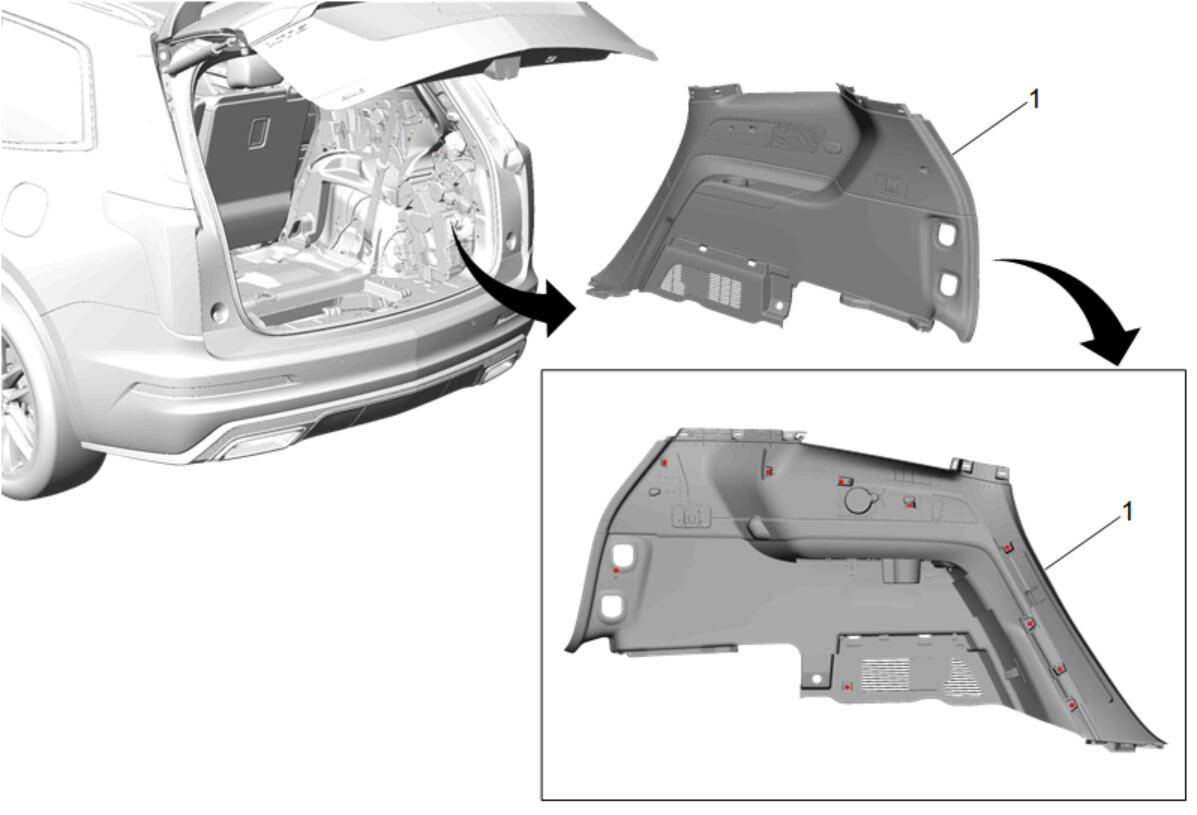

  3. GM5237351Courtesy of GENERAL MOTORS COMPANY

    Quarter Lower Rear Trim Panel - Right Side (1) - Remove - Quarter Lower Rear Trim Panel Replacement - Right Side

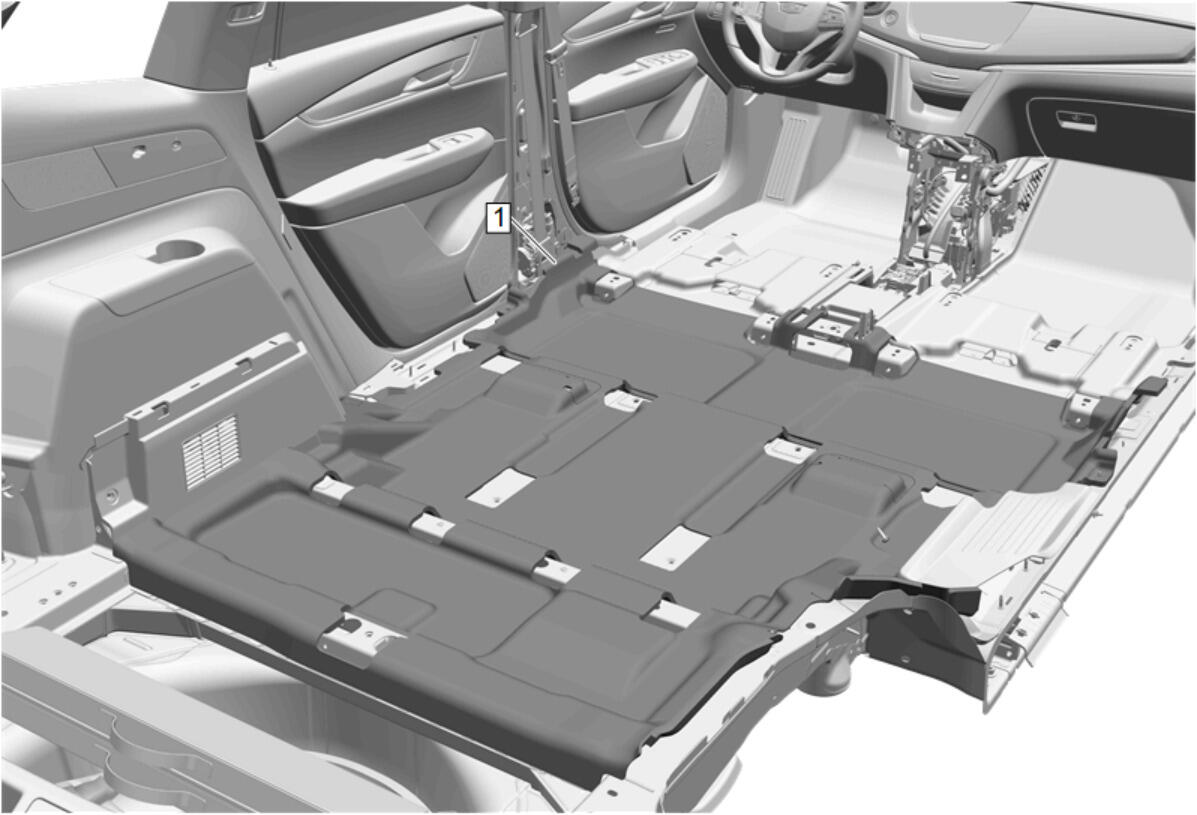

  4. GM5226623Courtesy of GENERAL MOTORS COMPANY

    Rear Floor Panel Carpet (1) - Reposition

  5. GM4311115Courtesy of GENERAL MOTORS COMPANY

    Electronic Suspension Control Module Bracket Nut (1) - Remove [3x]

  6. Electronic Suspension Control Module (2) - Remove
  7. GM4311128Courtesy of GENERAL MOTORS COMPANY

    Remove the electronic suspension control module (1) by releasing the tab as indicated on the electronic suspension control module bracket (2).

  8. Electrical Connector @ Electronic Suspension Control Module - Disconnect
