Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Remote Function Actuator Module (1) - Install
Secure the retaining tab.
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Body Lock Pillar Upper Trim Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

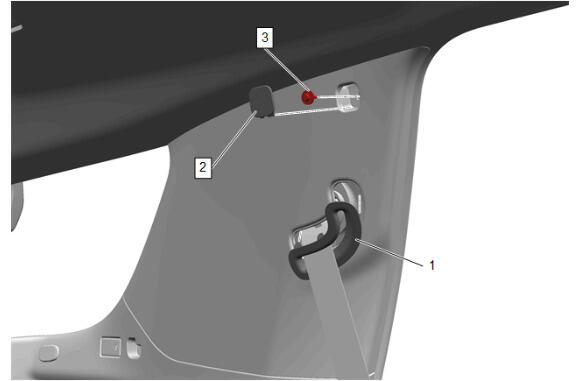

Quarter Window Trim Finish Panel Bolt (3) - Install and tighten - Fastener Specifications
Quarter Window Trim Finish Panel Bolt Cap (2) - Install
Enable the SIR System. SIR Disabling and Enabling
