Installation Procedure

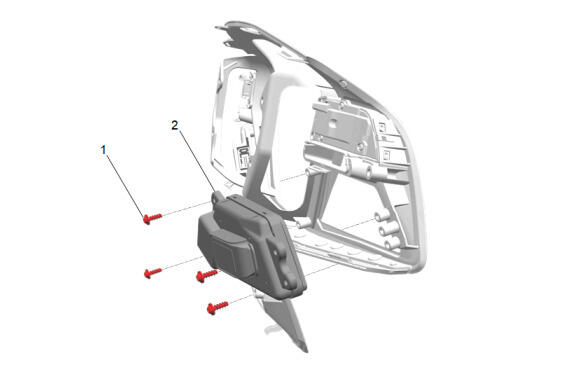

  1. GM5991966Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  2. Cruise Control Switch (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Steering Wheel Spoke Cover Bolt (1) - Install and tighten [4x] - Fastener Specifications
  4. GM6247752Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Harness Clip (2) - Install

  5. Steering Wheel Spoke Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
  6. GM5991752Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Vibration Dampener (1) - Install

  7. Connect the electrical connector.
  8. GM5991962Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Bolt (1) - Install and tighten [3x] - Fastener Specifications

  9. GM6124767Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Spoke Cover Applique (1) - Install

  10. Connect the electrical connectors.
  11. Steering Wheel Spoke Cover Bolt (2) - Install and tighten [4x] - Fastener Specifications
  12. GM5991751Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Spoke Cover Bolt (1) - Install and tighten - Fastener Specifications

  13. GM5990971Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Bolt (1) - Install and tighten [2x] - Fastener Specifications

  14. GM5990951Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Manual Shift Auxiliary Position Switch (2) - Install

  15. Steering Wheel Spoke Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
  16. Connect the electrical connector. (3)
  17. GM5990934Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Shroud (2) - Install

  18. Steering Wheel Spoke Cover Bolt (3) - Install and tighten [2x] - Fastener Specifications
  19. Steering Wheel Spoke Cover Bolt (1) - Install and tighten [4x] - Fastener Specifications
  20. GM5962736Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  21. Steering Wheel (2) - Install
  22. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
  23. Steering Wheel Bolt (1) - Install and tighten - Fastener Specifications
  24. GM5972110Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  25. Install any connector position assurance (CPA) devices or secondary locks.
    26. WARNING:

    After installation of the steering wheel airbag module to the steering wheel, slightly pull the module outward. If there is no give on the airbag module then it is secured correctly. If the airbag module is not fully attached personal injury could result.

  26. Steering Wheel Airbag (2) - Install
  27. Steering Wheel Airbag Bolt (1) - Install and tighten [2x] - Fastener Specifications
  28. GM5962674Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Install the left and right steering wheel airbag access hole covers (1).

  29. Enable the SIR System. SIR Disabling and Enabling
