Fastener Specifications

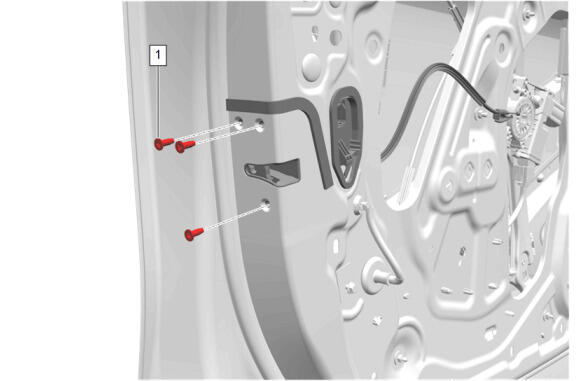

GM6681145Courtesy of GENERAL MOTORS COMPANY
Front Side Door Latch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Latch Bolt [3x] - Yes 9 N.m (80 lb in) Front Side Door Latch Replacement
GM5946512Courtesy of GENERAL MOTORS COMPANY
Front Side Door Latch Striker

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Latch Striker Bolt [2x] - - 22 N.m (16 lb ft) Front Side Door Latch Striker Replacement

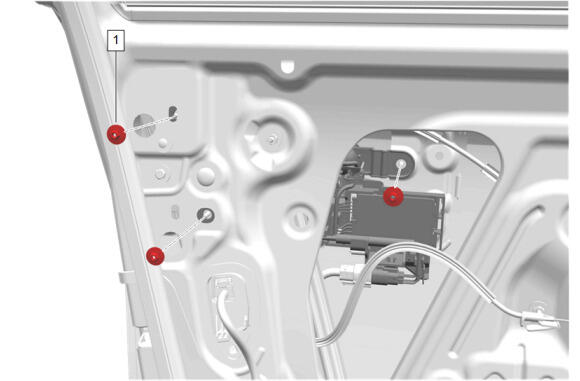

GM6677888Courtesy of GENERAL MOTORS COMPANY
Front Side Door Outside Handle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Outside Handle Nut [3x] - - 4.5 N.m (40 lb in) Front Side Door Outside Handle Replacement

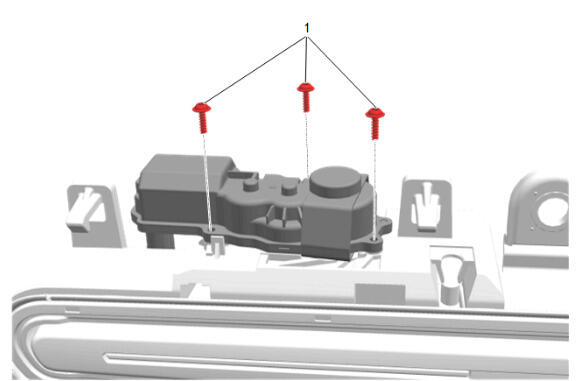

GM6553410Courtesy of GENERAL MOTORS COMPANY
Front Side Door Outside Handle Actuator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Outside Handle Molding Bolt [3x] - - 0.5 N.m (4 lb in) Front Side Door Outside Handle Actuator Replacement
GM6002571Courtesy of GENERAL MOTORS COMPANY
Liftgate Latch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Latch Bolt [2x] - Yes 22 N.m (16 lb ft) Liftgate Latch Replacement
GM6002435Courtesy of GENERAL MOTORS COMPANY
Liftgate Latch Striker

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Latch Striker Bolt [2x] - - 22 N.m (16 lb ft) Liftgate Latch Striker Replacement

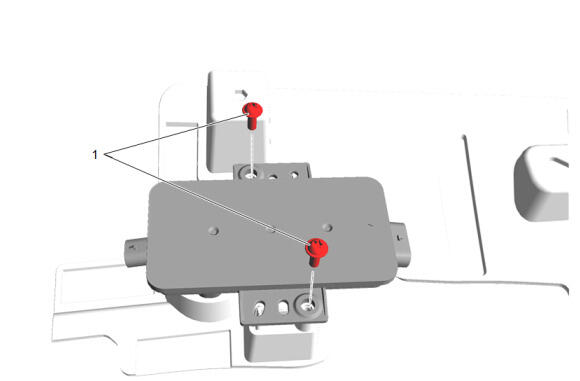

GM6002287Courtesy of GENERAL MOTORS COMPANY
Rear Closure Hands Free Module

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Closure Hands Free Module Bolt [2x] - - 1.5 N.m (13 lb in) Rear Closure Hands Free Module Replacement

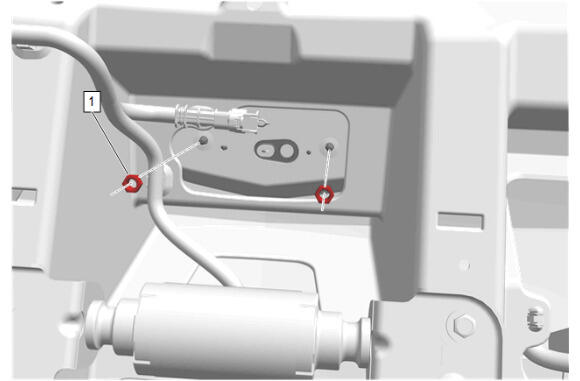

GM6124511Courtesy of GENERAL MOTORS COMPANY
Rear Closure Release With Emblem Pushbutton

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Closure Release Pushbutton Nut [2x] - - 4.7 N.m (42 lb in) Rear Closure Release With Emblem Pushbutton Replacement

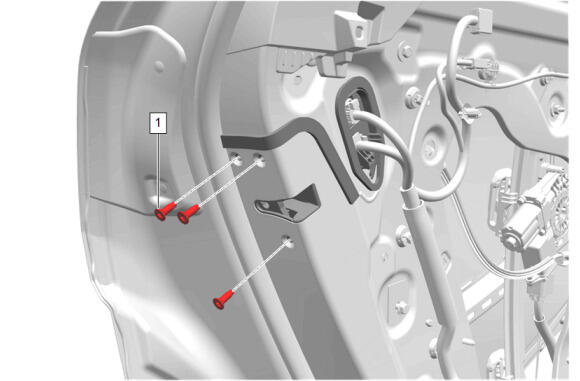

GM6678031Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Latch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Latch Bolt [3x] - Yes 9 N.m (80 lb in) Rear Side Door Latch Replacement
GM5946435Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Latch Striker

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Latch Striker Bolt [2x] - - 22 N.m (16 lb ft) Rear Side Door Latch Striker Replacement

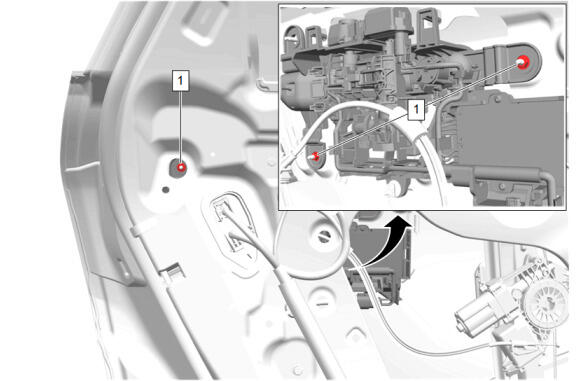

GM6681104Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Outside Handle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Outside Handle Nut [3x] - - 4.5 N.m (40 lb in) Rear Side Door Outside Handle Replacement
GM6553410Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Outside Handle Actuator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Outside Handle Molding Bolt [3x] - - 0.5 N.m (4 lb in) Rear Side Door Outside Handle Actuator Replacement
