Fastener Specifications

Courtesy of GENERAL MOTORS COMPANY

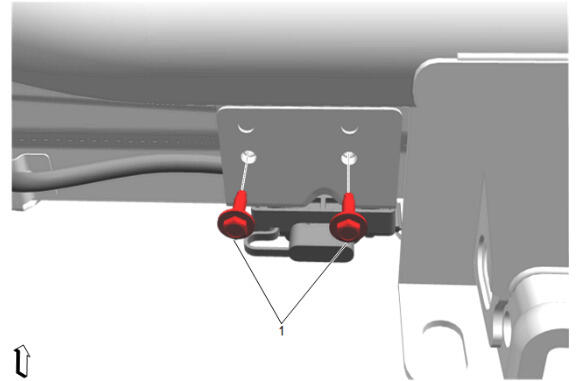

Trailer Rear Wiring Harness

Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Metric (English)	Procedure
1	Wiring Harness Bracket Bolt [2x]	-	-	9 N.m (80 lb in)	Trailer Rear Wiring Harness Replacement
