Float Level
NOTE:
Fuel inlet needle is tipped with synthetic rubber. Weight of float only should force needle against seat.

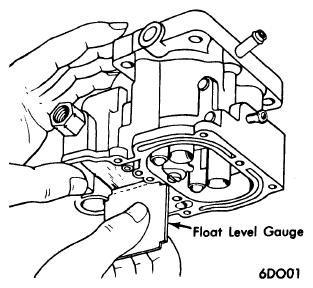

Invert float bowl and check distance between surface of fuel bowl (gasket removed) and top of float at center. This measurement should be as indicated in specifications. To adjust, hold float at bottom of bowl and bend tang on float as necessary. Do not allow tang to push against needle. When float is correctly set, float tang should be perpendicular to needle or slanted not more than 10° away from needle.
